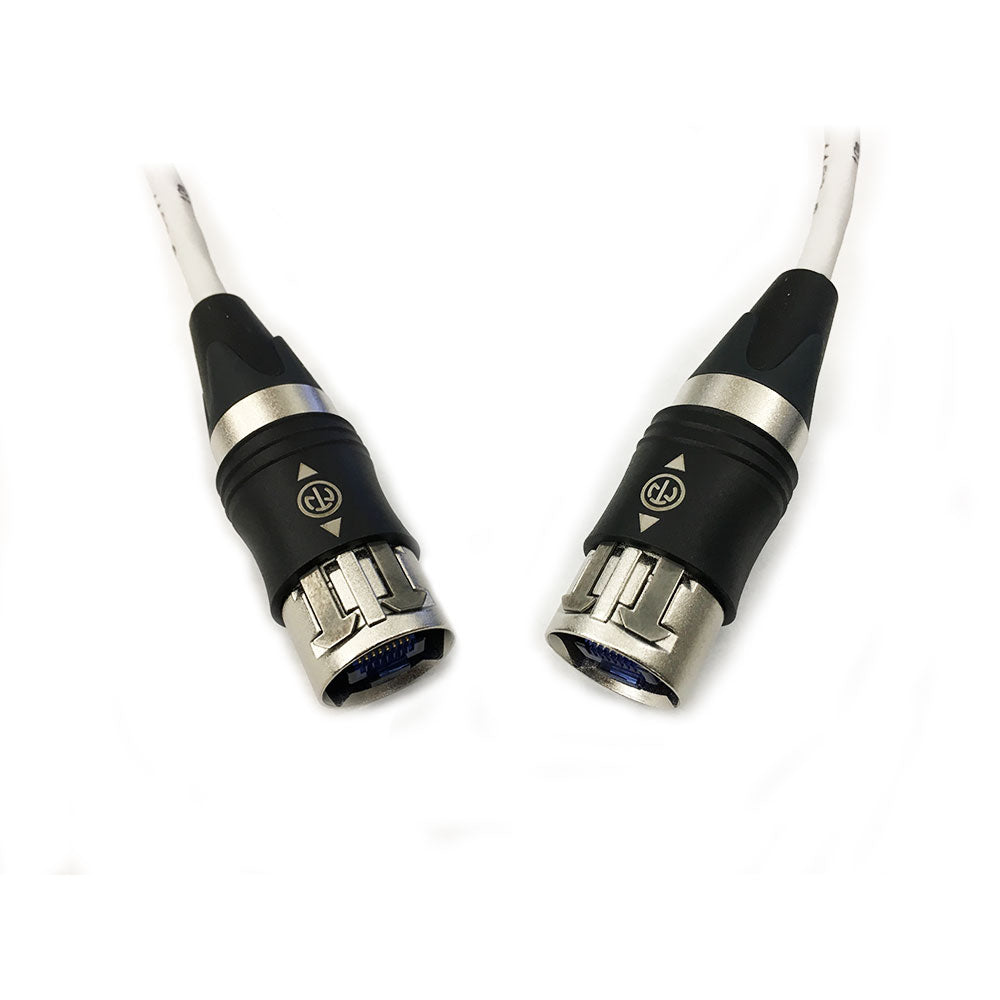

Neutrik NKE6S-3 Cat6 etherCON to etherCON Patch Cable (3 Meter)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The preassembled etherCON CAT6 patch cables use a shielded S/FTP cable with cable plug carrier offering a robust metal shell and Push-Pull locking system.
Attention! Intermates ONLY with NE8FDY-C6* Cat 6 receptacles. Not compatible with CAT5 and CAT6A chassis connectors.
Features:
- CAT6 compliant - data rate up to 10 GBit/s
- CAT6 performance - fast data transmission and high bandwidth applications
- CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
- IP65 - Dust and waterproof in mated condition
- Shielded system - high noise immunity and EMI protection
- Push Pull mating - secure and proven locking system
- Ready made patch cables with rugged cable carrier and unique chuck-type strain relief
| Title | NKE6S-* |
| Gender | male |
| Electrical | |
| Contact resistance | < 10 m½ |
| Dielectric strength | 1 kVdc |
| Frequencyrange | 1 - 250 MHz |
| Insulation resistance | ³ 0.5 G½ |
| Rated current per contact | 1,5 A |
| Rated voltage | < 50 V |
| Mechanical | |
| Insertion force | ² 40 N |
| Withdrawal force | ² 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | 8 x AWG 27/7 mm_ |
| Locking device | Push-Pull |
| Material | |
| Boot | Polyurethan |
| Contact plating | 0.7 µm Au over 1.2 µm Ni plating |
| Contacts | Bronze (CuSn8) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Flammability | UL 94 HB |
| Standard compliance | CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173 |
| Protection class | IP 65 |
| Temperature range | -10 ¡C to +60 ¡C |
