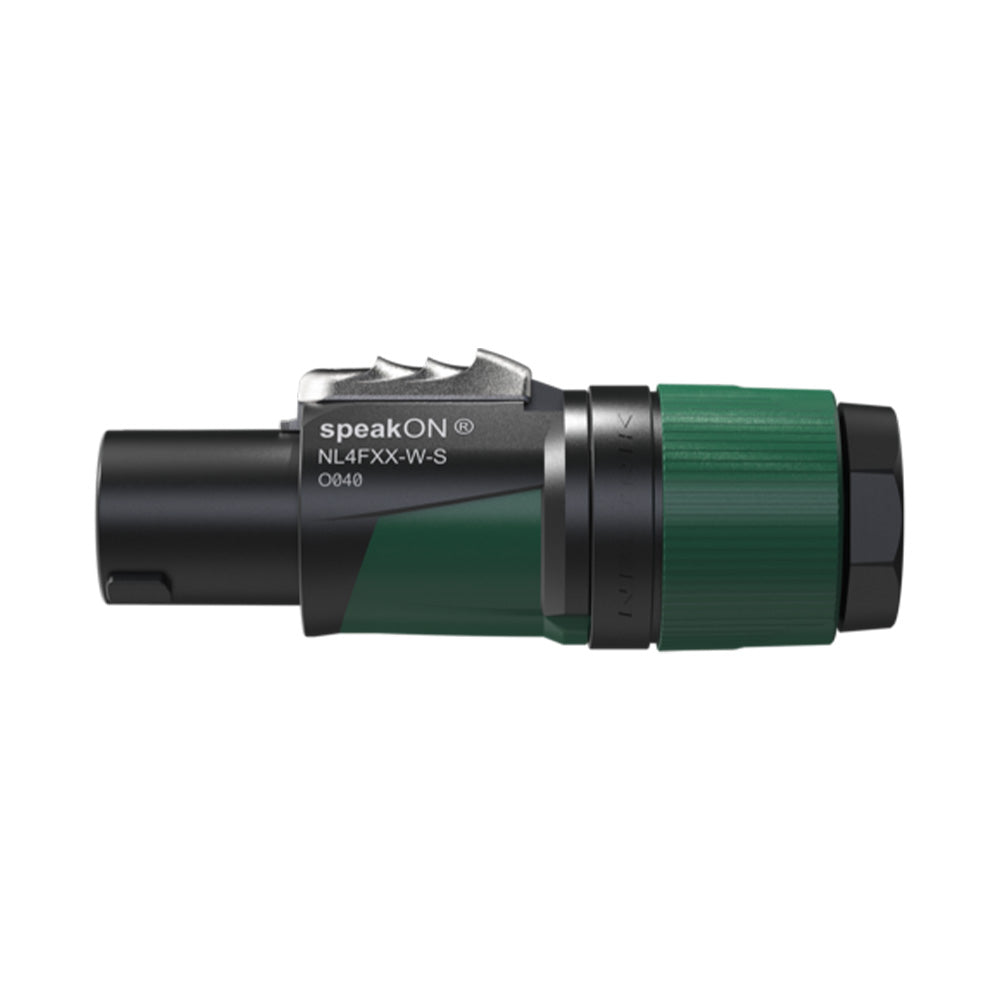

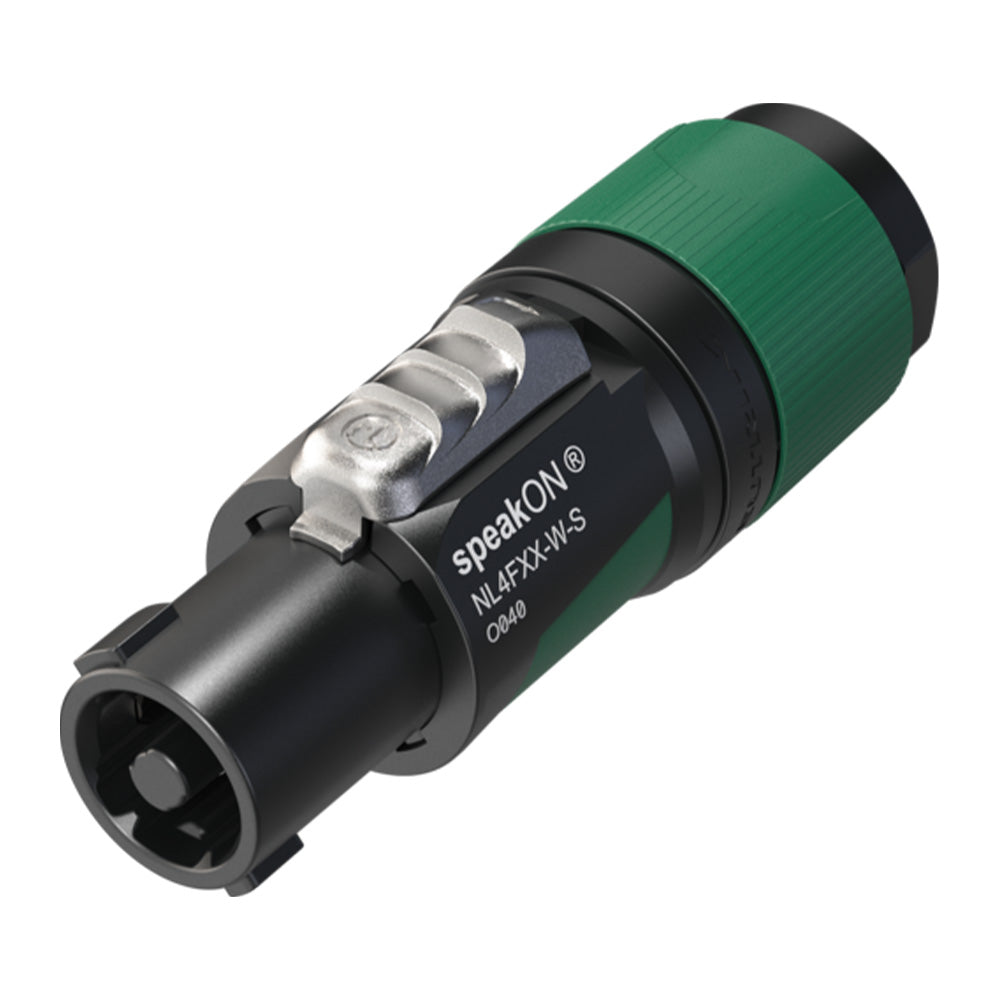

Neutrik NL4FXX-W-S - 4-Pole SpeakON Cable Connector
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
4 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm
speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection.
Features:
- Up to 37 A rms current rating
- Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm
- IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
- Superior NEUTRIK quality standard, extremely robust and reliable
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Easy and reliable twist lock system
- Ergonomic design with slip-proof two-component molded housing
- Improved kink protection by two-component bushing
| Title | NL4FXX-W-S |
| Connector series | speakON 4 pole |
| Electrical | |
| Contact resistance | ² 2 m½ |
| Dielectric strength | 2.8 kVac |
| Insulation resistance | > 10 G½ (initially) |
| Number of electrical contacts | 4 |
| Rating Europe | IEC 61984: 37 A 250 V AC |
| Rating USA | UL1977: 35 A 250 V AC |
| Rating Canada | CSA C22.2 No.182.3: 24 A 250 V AC |
| ATTENTION: | This product is strictly not intended for use as an AC mains or power supply connector! CAUTION: NOT FOR INTERRUPTING CURRENT |
| Mechanical | |
| Cable O.D. | 6 Ð 12 mm |
| Lifetime | typically 5'000 mating cycles |
| Wiresize (mm_) | 1.5 Ð 4 mm_ |
| Wiresize (AWG) | 17 Ð 11 AWG |
| Locking device | Twist lock |
| Termination | screw type terminals |
| Material | |
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA6.6) |
| Locking element | Zinc diecast |
| Shell | Polyamide (PA6) / TPE |
| Strain relief | Polyketone |
| Bushing | Polypropylene / TPE |
| Environmental | |
| Temperature range | -33 ¡C to +80 ¡C |
| Protection class | IP20 |
| Flammability acc. to UL94 | V-0 |
