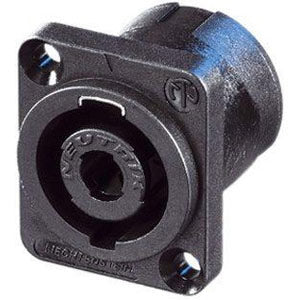

Neutrik NL4MD-V 4-Pole SpeakOn Chassis Connector - Black
Dale #:
NEUT-NL4MDVAvailability:
In StockAvailable for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm
Description
4 pole chassis connector, black D-size flange, countersunk thru holes, vertical PCB mount The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The spe... Read MoreRetail Price: $3.37 Our Price: $2.89
Free Shipping (orders over $99)
Suggested Accessories
Description
4 pole chassis connector, black D-size flange, countersunk thru holes, vertical PCB mount The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Features
- Current rating 30 A rms
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
More +
Product Specs
| Connection Type | speakON |
| Gender | male |
| Electrical | |
| Contact resistance | ≤ 3 mΩ (inner) (after lifetime) |
| Dielectric strength | 4 kVdc (peak) |
| Insulation resistance | > 1 GΩ (after dampheat) |
| Rated current per contact | 30 A rms continuous |
| Rated current per contact | 40 A audiosignal, duty cycle 50 % |
| Rated voltage | 250 V (Insulation) |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Wiring | vertical PCB mount |
| Locking device | Quick Lock |
| Mounting direction | rear |
| Chassis shape | D |
| Layout | standard hole position, thru holes |
| Material | |
| Contact plating | 4 µm Ag |
| Contacts | Bronze (CuSn6) |
| Shell | Polyamide (PA 6 30 % GR) black |
| Environmental | |
| Flammability | UL 94 HB |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
