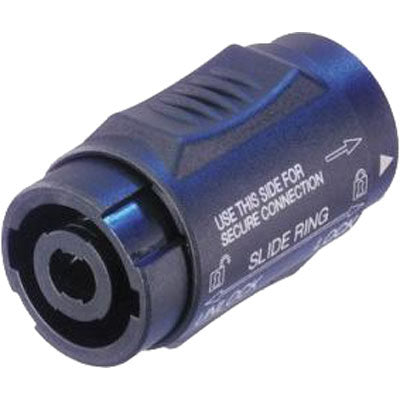

Neutrik NL4MMX Speakon 4 Pole Double Locking Coupler
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NL4MMX Speakon 4 Pole Double Locking Coupler
Sale price$6.93
Regular price$7.73
Description
4 pole lockable coupler, links two NL2/4FCs together for cable extension. Can be permanently attached to NL2/4FC.
| Product | |
| Connector Type | Speakon |
| Gender | male |
| Electrical | |
| Contact resistance | ≤ 3ÊmΩÊ(after lifetime) |
| Dielectric strength | 4ÊkVdcÊ(peak) |
| Insulation resistance | > 1ÊGΩÊ(after dampheat) |
| Rated current per contact | 20ÊA |
| Rated voltage | 250ÊVÊ(Insulation) |
| Mechanical | |
| Lifetime | > 5000Êmating cycles |
| Locking device | Quick Lock |
| Layout | standard hole position, self tapping screw holes (A-Screw) |
| Material | |
| Contact plating | 4 µm Ag |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6 30 % GR) |
| Shell | Polyamide (PA 6 30 % GR) |
| Environmental | |
| Flammability | UL 94 HB |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80Ê¡C |
4 pole lockable coupler, links two NL2/4FCs together for cable extension. Can be permanently attached to NL2/4FC.
| Product | |
| Connector Type | Speakon |
| Gender | male |
| Electrical | |
| Contact resistance | ≤ 3ÊmΩÊ(after lifetime) |
| Dielectric strength | 4ÊkVdcÊ(peak) |
| Insulation resistance | > 1ÊGΩÊ(after dampheat) |
| Rated current per contact | 20ÊA |
| Rated voltage | 250ÊVÊ(Insulation) |
| Mechanical | |
| Lifetime | > 5000Êmating cycles |
| Locking device | Quick Lock |
| Layout | standard hole position, self tapping screw holes (A-Screw) |
| Material | |
| Contact plating | 4 µm Ag |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6 30 % GR) |
| Shell | Polyamide (PA 6 30 % GR) |
| Environmental | |
| Flammability | UL 94 HB |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80Ê¡C |
