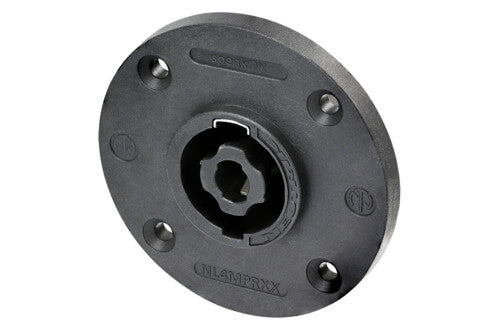

Neutrik NL4MPRXX - Flush Mount 4-Pole SpeakON Chassis Connector
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.
4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16" flat tabs.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Features:
- IEC 61984 certified / IEC 62368-1 compliant
- Glass reinforced V-0 materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
| Title | NL4MPRXX |
| Gender | male |
| Electrical | |
| Contact resistance | 2 m½ |
| Dielectric strength | 2.8 kVac |
| Insulation resistance | >0.1 G½ (after dampheat) |
| Rated current per contact | 25 A rms continuous (audio rating significantly higher, depending on signal) |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Termination | 3/16" flat tabs (e.g. NLFASTON) |
| Locking device | Quick Lock |
| Chassis shape | round G-size flange |
| Layout | four thru holes |
| Material | |
| Contact plating | Ag |
| Locking element | Stainless Steel |
| Shell | Polyamide (PA 6.6) |
| Contacts | Copper Alloy |
| Environmental | |
| Flammability | UL94 V-0 |
| Temperature range | -30 ¡C to +80 ¡C |
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.
4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16" flat tabs.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Features:
- IEC 61984 certified / IEC 62368-1 compliant
- Glass reinforced V-0 materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
| Title | NL4MPRXX |
| Gender | male |
| Electrical | |
| Contact resistance | 2 m½ |
| Dielectric strength | 2.8 kVac |
| Insulation resistance | >0.1 G½ (after dampheat) |
| Rated current per contact | 25 A rms continuous (audio rating significantly higher, depending on signal) |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Termination | 3/16" flat tabs (e.g. NLFASTON) |
| Locking device | Quick Lock |
| Chassis shape | round G-size flange |
| Layout | four thru holes |
| Material | |
| Contact plating | Ag |
| Locking element | Stainless Steel |
| Shell | Polyamide (PA 6.6) |
| Contacts | Copper Alloy |
| Environmental | |
| Flammability | UL94 V-0 |
| Temperature range | -30 ¡C to +80 ¡C |
