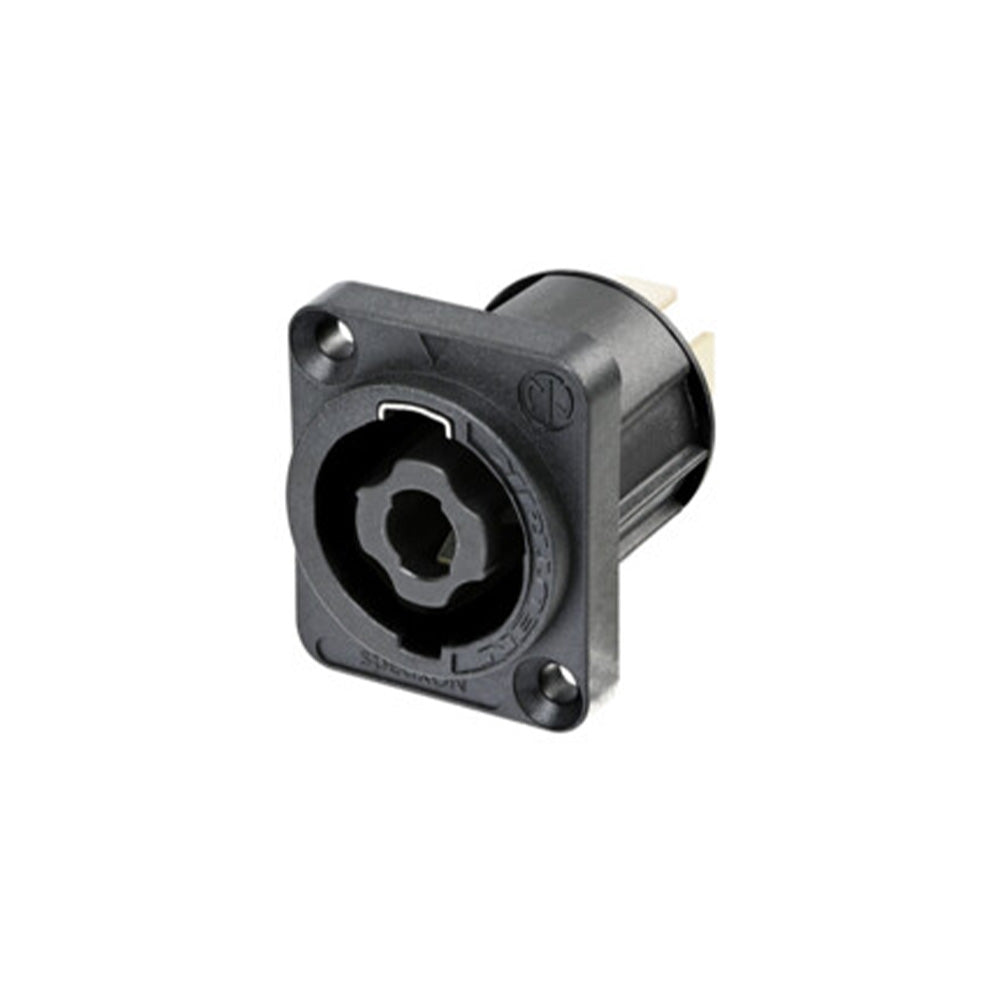

Neutrik NL4MPXX-UC - SpeakON Upper Current 4-Pole Male Chassis Receptacle (Faston Tabs)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
4 pole male chassis connector for 30 A rms continuous. Black D-size flange, countersunk thru holes, 1/4" flat tabs (termination e.g. with Faston tab Tyco part # 41829
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Features:
- IEC 61984 certified, IEC 6236/-1 compliant
- Glass reinforced V-0 materials – extremely robust and durable
- Precise keyway for secure mating with metal insert in locking area
- Airtight design - optimized for speaker applications
| Product | |
| Title | NL4MPXX-UC |
| Gender | male |
| Electrical | |
| Contact resistance | ² 2 m½ |
| Dielectric strength | 2.8 kVac |
| Insulation resistance | >0.1 G½ (after dampheat) |
| Rated current per contact | 30 A rms continuous |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Termination | _" flat tabs |
| Locking device | Quick Lock |
| Mounting direction | Rear (e.g. MFD) / front mounting |
| Chassis shape | D |
| Layout | standard hole position, thru holes |
| Material | |
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Shell | Polyamide (PA 66) |
| Environmental | |
| Temperature range | -30 ¡C to +80 ¡C |
| Flammability | UL 94 V-0 |
