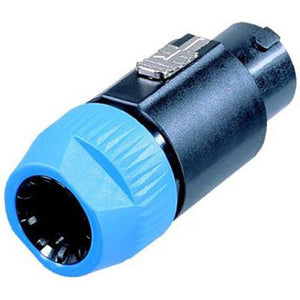

Neutrik NL8FC Speakon 8 Pole Connector with Latch
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
8 pole cable connector, latch lock, chuck type strain relief for cables 8 - 20 mm diameter, 30 A continuous per contact
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Features:
- Current rating 30 A rms continuous
- Reliable and robust, easy and fast to assemble
- Contacts are touch proof and meet all safety requirements (IEC, UL, CSA)
- Accurate and dependable twist lock latching system "Quick Lock"
- High impact material for insert and housing, long-lasting and dependable
- Chuck type strain relief system for secure clamping of cable
| Product | |
| Connector Type | Speakon |
| Gender | female |
| Electrical | |
| Contact resistance | ≤ 3ÊmΩÊ(after lifetime) |
| Dielectric strength | 4ÊkVdcÊ(peak) |
| Insulation resistance | > 1ÊGΩÊ(after dampheat) |
| Rated current per contact | 30ÊAÊrms continuous |
| Rated current per contact | 40ÊAÊaudiosignal, duty cycle 50 % |
| Rated voltage | 250ÊVÊ(Insulation) |
| Mechanical | |
| Cable O.D. | 8 - 20Êmm |
| Cable retention force | ≥ 220ÊNÊ(subject to cable O.D. and material) |
| Lifetime | > 5000Êmating cycles |
| Wire size | 4Êmm_ |
| Wire size | 12ÊAWG |
| Wiring | screw type terminals or soldering |
| Locking device | Quick LockÊ(latch) |
| Layout | standard hole position, thru holes |
| Material | |
| Bushing | Polyamide (PA 6 15 % GR) |
| Contact plating | 4 µm Ag |
| Contacts | Brass (CuZn39Pb3) |
| Insert | PBTP 20 % GR |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Shell | Polyamide (PA 6 30 % GR) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Approvals | UL,CSA |
| Flammability | UL 94 HB |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80Ê¡C |
8 pole cable connector, latch lock, chuck type strain relief for cables 8 - 20 mm diameter, 30 A continuous per contact
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Features:
- Current rating 30 A rms continuous
- Reliable and robust, easy and fast to assemble
- Contacts are touch proof and meet all safety requirements (IEC, UL, CSA)
- Accurate and dependable twist lock latching system "Quick Lock"
- High impact material for insert and housing, long-lasting and dependable
- Chuck type strain relief system for secure clamping of cable
| Product | |
| Connector Type | Speakon |
| Gender | female |
| Electrical | |
| Contact resistance | ≤ 3ÊmΩÊ(after lifetime) |
| Dielectric strength | 4ÊkVdcÊ(peak) |
| Insulation resistance | > 1ÊGΩÊ(after dampheat) |
| Rated current per contact | 30ÊAÊrms continuous |
| Rated current per contact | 40ÊAÊaudiosignal, duty cycle 50 % |
| Rated voltage | 250ÊVÊ(Insulation) |
| Mechanical | |
| Cable O.D. | 8 - 20Êmm |
| Cable retention force | ≥ 220ÊNÊ(subject to cable O.D. and material) |
| Lifetime | > 5000Êmating cycles |
| Wire size | 4Êmm_ |
| Wire size | 12ÊAWG |
| Wiring | screw type terminals or soldering |
| Locking device | Quick LockÊ(latch) |
| Layout | standard hole position, thru holes |
| Material | |
| Bushing | Polyamide (PA 6 15 % GR) |
| Contact plating | 4 µm Ag |
| Contacts | Brass (CuZn39Pb3) |
| Insert | PBTP 20 % GR |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Shell | Polyamide (PA 6 30 % GR) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Approvals | UL,CSA |
| Flammability | UL 94 HB |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80Ê¡C |
