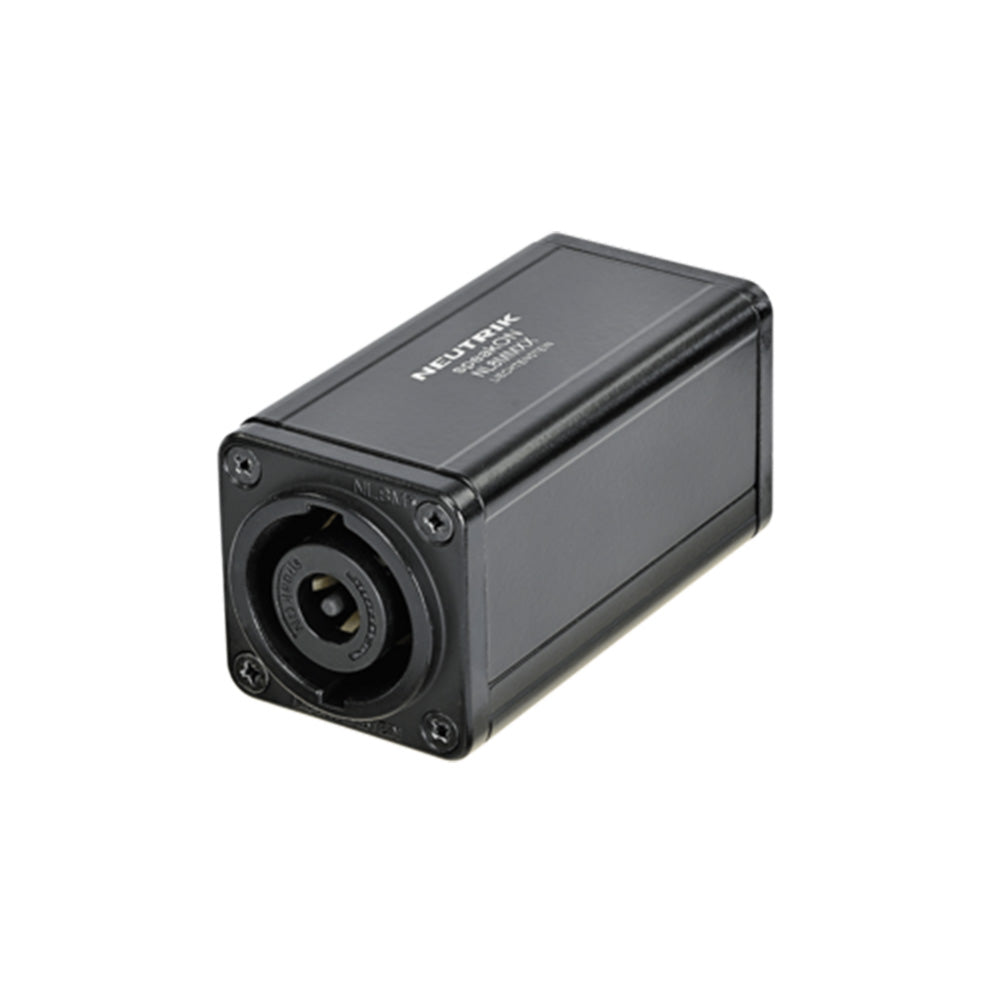

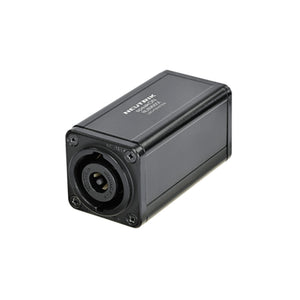

Neutrik NL8MMXX - 8-Pole SpeakON Feed-Thru Coupler
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Neutrik NL8MMXX - 8-Pole SpeakON Feed-Thru Coupler
Sale price$26.96
Regular price$30.10
Description
8 pole speakON feedthrough coupler for cable extensions.
| Connection Type | Adapter |
| Gender | male |
| Electrical | |
| Contact resistance | < 3 m½ |
| Dielectric strength | 1.5 kVac |
| Insulation resistance | > 0.1 G½ (after dampheat) |
| Rated current per contact | 25 A rms continuous |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an mains or power supply connector (AC / DC)! |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Locking device | Quick Lock |
| Material | |
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Shell | Zinc diecast, black chrome plated |
| Insert | Polyamide (PA 6.6) |
| Environmental | |
| Temperature range | -30 ¡C to +80 ¡C |
| Flammability | UL 94 V-0 |
8 pole speakON feedthrough coupler for cable extensions.
| Connection Type | Adapter |
| Gender | male |
| Electrical | |
| Contact resistance | < 3 m½ |
| Dielectric strength | 1.5 kVac |
| Insulation resistance | > 0.1 G½ (after dampheat) |
| Rated current per contact | 25 A rms continuous |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an mains or power supply connector (AC / DC)! |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Locking device | Quick Lock |
| Material | |
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Shell | Zinc diecast, black chrome plated |
| Insert | Polyamide (PA 6.6) |
| Environmental | |
| Temperature range | -30 ¡C to +80 ¡C |
| Flammability | UL 94 V-0 |
