Neutrik NL8MPRXX - SpeakON 8-Pole Chassis Receptacle (Flat Tabs)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

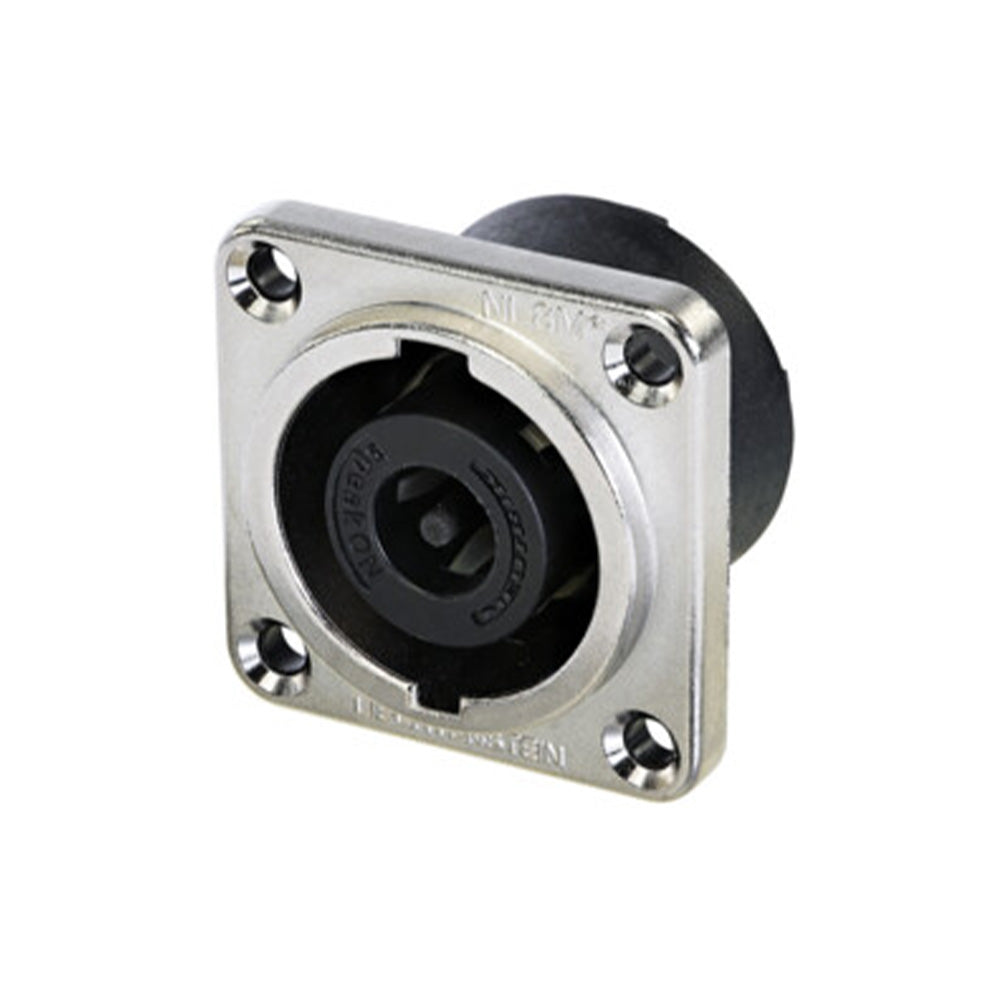

8 pole male chassis connector, metal square G-size housing, countersunk thru holes, 3/16" flat tabs
This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections and feature a unique metal locking system, making contact only once fully locked. The receptacles are robust, versatile and easy to terminate.
Features:
- IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
- Current rating 25 A rms
- Extremely robust metal flange and glass reinforced V-0 material for harsh and demanding environment
- Precise keyway for secure mating
- Airtight design – optimized for speaker applications
| Product | |
| Title | NL8MPRXX |
| Gender | male |
| Electrical | |
| Contact resistance | ² 2 m½ |
| Dielectric strength | 1.5 kVac |
| Insulation resistance | > 0.1 G½ (after dampheat) |
| Rated current per contact | 25 A rms continuous (acc. to IEC 61984) |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an mains or power supply connector (AC / DC)! |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Termination | 3/16" flat tabs |
| Locking device | Quick Lock |
| Mounting direction | Rear / front mounting |
| Chassis shape | square G-size flange |
| Layout | four thru holes |
| Material | |
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Shell | Zinc diecast, Nickel plated |
| Insert | Polyamide (PA 6.6) |
| Environmental | |
| Temperature range | -30 ¡C to +80 ¡C |
| Flammability | UL 94 V-0 |
8 pole male chassis connector, metal square G-size housing, countersunk thru holes, 3/16" flat tabs
This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections and feature a unique metal locking system, making contact only once fully locked. The receptacles are robust, versatile and easy to terminate.
Features:
- IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
- Current rating 25 A rms
- Extremely robust metal flange and glass reinforced V-0 material for harsh and demanding environment
- Precise keyway for secure mating
- Airtight design – optimized for speaker applications
| Product | |
| Title | NL8MPRXX |
| Gender | male |
| Electrical | |
| Contact resistance | ² 2 m½ |
| Dielectric strength | 1.5 kVac |
| Insulation resistance | > 0.1 G½ (after dampheat) |
| Rated current per contact | 25 A rms continuous (acc. to IEC 61984) |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an mains or power supply connector (AC / DC)! |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Termination | 3/16" flat tabs |
| Locking device | Quick Lock |
| Mounting direction | Rear / front mounting |
| Chassis shape | square G-size flange |
| Layout | four thru holes |
| Material | |
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Shell | Zinc diecast, Nickel plated |
| Insert | Polyamide (PA 6.6) |
| Environmental | |
| Temperature range | -30 ¡C to +80 ¡C |
| Flammability | UL 94 V-0 |
