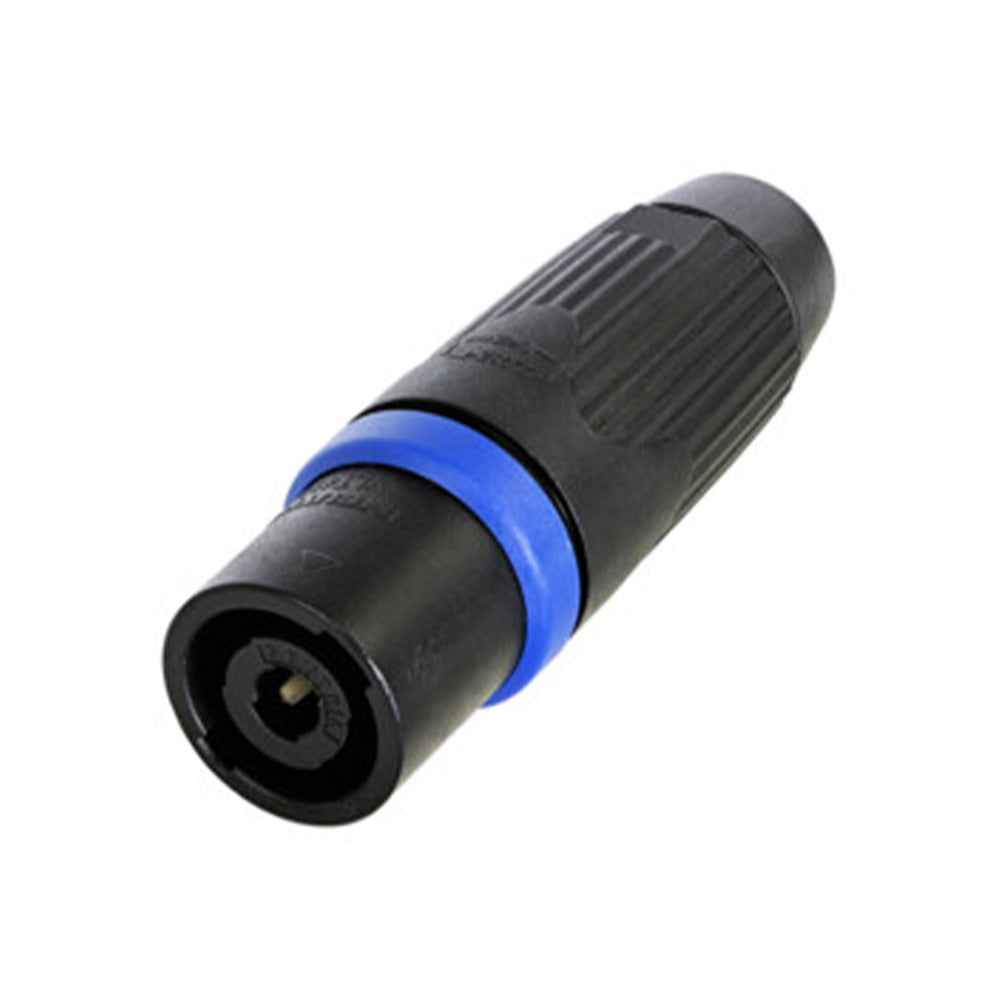

Neutrik NLT4MXX-BAG - SpeakON 4-Pole Male Cable Connector (Black Metal Housing)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
4 pole male cable connector, black metal housing, chuck type strain relief
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.
The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.
Features:
- IEC 61984 certified, IEC 62368-1 compliant
- Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
- Uses precise "Quick Lock" system
- Extra large solder contacts for up to 6 mm² (AWG 10) wires
- Weatherproof built-in gasket meets IP 54 protection class in mated condition
| Title | NLT4MXX-BAG |
| Gender | male |
| Electrical | |
| Contact resistance | < 2 m½ |
| Dielectric strength | 2.8 kVac |
| Insulation resistance | >0.1 G½ (after dampheat) |
| Rated current per contact | 30 A rms continuous |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
| Cable O.D. | 9 - 16 mm |
| Lifetime | > 5000 mating cycles |
| Wiresize | 6 mm_ |
| Wiresize | 10 AWG |
| Termination | Solder contacts |
| Locking device | Quick Lock |
| Material | |
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Shell | Zinc diecast, black chrome plated |
| Insert | Polyamide (PA 66) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Temperature range | -30 ¡C to +80 ¡C |
| Flammability | UL 94 V-0 |
| Protection class | IP 54 (mated condition) |
| Solderability | Complies with IEC68-2-20 |
4 pole male cable connector, black metal housing, chuck type strain relief
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.
The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.
Features:
- IEC 61984 certified, IEC 62368-1 compliant
- Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
- Uses precise "Quick Lock" system
- Extra large solder contacts for up to 6 mm² (AWG 10) wires
- Weatherproof built-in gasket meets IP 54 protection class in mated condition
| Title | NLT4MXX-BAG |
| Gender | male |
| Electrical | |
| Contact resistance | < 2 m½ |
| Dielectric strength | 2.8 kVac |
| Insulation resistance | >0.1 G½ (after dampheat) |
| Rated current per contact | 30 A rms continuous |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
| Cable O.D. | 9 - 16 mm |
| Lifetime | > 5000 mating cycles |
| Wiresize | 6 mm_ |
| Wiresize | 10 AWG |
| Termination | Solder contacts |
| Locking device | Quick Lock |
| Material | |
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Shell | Zinc diecast, black chrome plated |
| Insert | Polyamide (PA 66) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Temperature range | -30 ¡C to +80 ¡C |
| Flammability | UL 94 V-0 |
| Protection class | IP 54 (mated condition) |
| Solderability | Complies with IEC68-2-20 |
