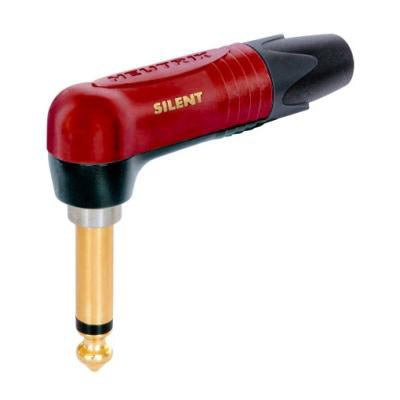

Neutrik NP2RX-AU-SILENT 1/4" Male Phone Connector 2 Pole Right Angle
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
2 pole right angle 1/4 professional phone plug, gold plated contacts, red coating, silent switch
Special version of 2 pole plug with integrated switch which automatically mutes (shorts) a guitar cable to avoid annoying pops and squeals when hot swapping guitars. The integrated silent switch is based on the REED technology and guarantees a lifetime beyond 10,000 mating cycles.
Features:
- Hermetically sealed and magnetically operated switch
- No wear, constant contact resistance
- No corrosion or pollution of switch, durable and long-lasting
- Lifetime beyond 10'000 mating cycles
*** Please note that the signal isn't muted with active electric bass guitars which have a tip-ring-sleeve tap to activate the power supply. Guitars with active pickups may also experience this issue.
| Product | |
| Connector Type | Plug |
| Gender | male |
| Electrical | |
| Contact resistance | depends on mating connectorÊmΩ |
| Dielectric strength | 1ÊkVdc |
| Insulation resistance | > 2ÊGΩÊ(initial) |
| Insulation resistance | ≥ 1ÊGΩÊ(after damp heat test) |
| Rated current per contact | ≤ 15ÊA |
| Mechanical | |
| Cable O.D. | 4 - 7Êmm |
| Wire size | 1Êmm_ |
| Wire size | 18ÊAWG |
| Wiring | Solder contacts |
| Material | |
| Bushing | Polyacetal (POM) + PU |
| Contact plating | 0.2 µm Au |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Partly red coated, black chromium plated |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 ¡C to +65Ê¡C |
