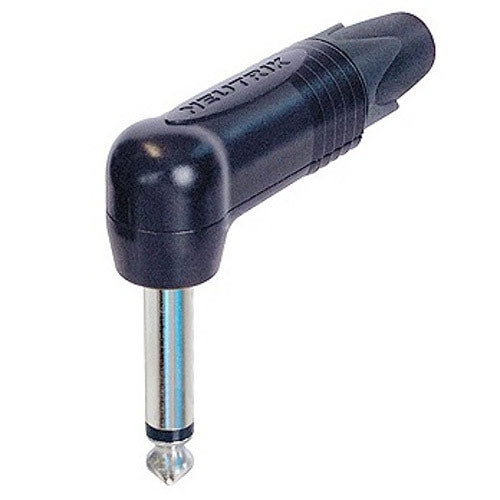

Neutrik NP2RX-BAG - 2-Pole Right Angle 1/4" Phone Plug (Black / Silver)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
2 pole right-angle 1/4" professional phone plug, nickel contacts, black shell.
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).
The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.
The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
Features:
- All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
- Extra slim 1/4" plug for highest packing density
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
| Product | |
| Connector Type | Plug |
| Gender | male |
| Electrical | |
| Contact resistance | depends on mating connector m Ohms |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 G Ohms (initial) |
| Insulation resistance | >= 1 G Ohms (after damp heat test) |
| Rated current per contact | depends on mating connector A |
| Rated voltage | 50 V |
| Mechanical | |
| Cable O.D. | 4 - 7 mm |
| Lifetime | > 1000 mating cycles |
| Wire size | 1 mm_ |
| Wire size | 18 AWG |
| Wiring | Solder contacts |
| RW / Straight | Yes |
| Material | |
| Bushing | Polyacetal (POM) + PU |
| Contact plating | 2 µm Ni (Su) |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell | plating Black chromium |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 ¡C to +65 ¡C |
2 pole right-angle 1/4" professional phone plug, nickel contacts, black shell.
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).
The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.
The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
Features:
- All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
- Extra slim 1/4" plug for highest packing density
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
| Product | |
| Connector Type | Plug |
| Gender | male |
| Electrical | |
| Contact resistance | depends on mating connector m Ohms |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 G Ohms (initial) |
| Insulation resistance | >= 1 G Ohms (after damp heat test) |
| Rated current per contact | depends on mating connector A |
| Rated voltage | 50 V |
| Mechanical | |
| Cable O.D. | 4 - 7 mm |
| Lifetime | > 1000 mating cycles |
| Wire size | 1 mm_ |
| Wire size | 18 AWG |
| Wiring | Solder contacts |
| RW / Straight | Yes |
| Material | |
| Bushing | Polyacetal (POM) + PU |
| Contact plating | 2 µm Ni (Su) |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell | plating Black chromium |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 ¡C to +65 ¡C |
