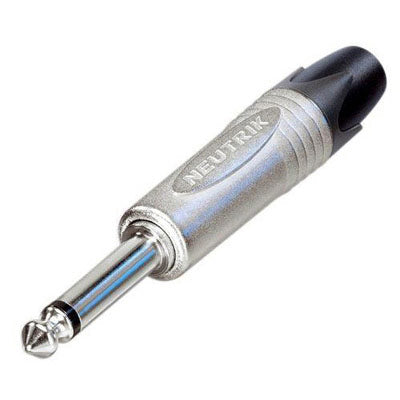

Neutrik NP2X 1/4" TS Mono Phone Connector - Nickel/Silver
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4 plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
1/4 professional phone plug, 2 pole, nickel contacts, nickel shellFeatures- Extra slim 1/4 plug for highest packing density Robust diecast shell in stylish design Improved chuck type strain relief for reliable cable retention Sleek design for best handling convenience Precision machined one-piece contacts - avoid hook up of tip contact
| Product | |
| Connector Type | Plug |
| Gender | male |
| Electrical | |
| Contact resistance | depends on mating connector mOhms |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 GOhms (initial) |
| Insulation resistance | ≥ 1 GOhms (after damp heat test) |
| Rated current per contact | ≤ 15 A |
| Mechanical | |
| Cable O.D. | 4 - 7 mm |
| Wire size | 1 mm_ |
| Wire size | 18 AWG |
| Wiring | Solder contacts |
| Material | |
| Bushing | Polyacetal (POM) + PU |
| Contact plating | 2 µm Ni (Su) |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | 20 ¡C to +65 ¡C |
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4 plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
1/4 professional phone plug, 2 pole, nickel contacts, nickel shellFeatures- Extra slim 1/4 plug for highest packing density Robust diecast shell in stylish design Improved chuck type strain relief for reliable cable retention Sleek design for best handling convenience Precision machined one-piece contacts - avoid hook up of tip contact
| Product | |
| Connector Type | Plug |
| Gender | male |
| Electrical | |
| Contact resistance | depends on mating connector mOhms |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 GOhms (initial) |
| Insulation resistance | ≥ 1 GOhms (after damp heat test) |
| Rated current per contact | ≤ 15 A |
| Mechanical | |
| Cable O.D. | 4 - 7 mm |
| Wire size | 1 mm_ |
| Wire size | 18 AWG |
| Wiring | Solder contacts |
| Material | |
| Bushing | Polyacetal (POM) + PU |
| Contact plating | 2 µm Ni (Su) |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | 20 ¡C to +65 ¡C |
