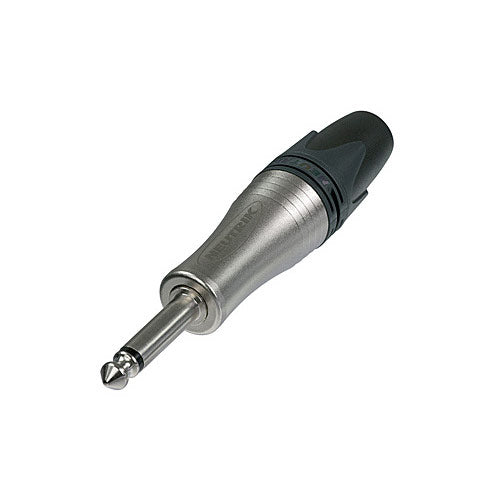

Neutrik NP2XL jumboPLUG Mono 1/4" TS Connector (Nickel)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
2 pole 1/4'' professional phone plug, up to 10 mm cable O.D. The professional 1/4'' jumboPLUG for thick instrument and loudspeaker cables offers an ergonomic barrel and incorporates the proven features and benefits of the standard PX range.
Features:
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Ergonomic design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
| Contact resistance | m (inner) depends on mating connector |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 G (initial), 1 G (after damp heat test) |
| Rated current per contact | A depends on mating connector |
| Rated voltage | < 50 V |
| Cable O.D. | 10 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize | 1 mm_ |
| Wiresize | 18 AWG |
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Temperature range | -20 ¡C to +65 ¡C |
2 pole 1/4'' professional phone plug, up to 10 mm cable O.D. The professional 1/4'' jumboPLUG for thick instrument and loudspeaker cables offers an ergonomic barrel and incorporates the proven features and benefits of the standard PX range.
Features:
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Ergonomic design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
| Contact resistance | m (inner) depends on mating connector |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 G (initial), 1 G (after damp heat test) |
| Rated current per contact | A depends on mating connector |
| Rated voltage | < 50 V |
| Cable O.D. | 10 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize | 1 mm_ |
| Wiresize | 18 AWG |
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Temperature range | -20 ¡C to +65 ¡C |
