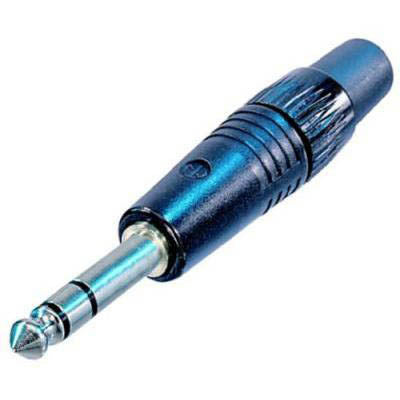

Neutrik NP3C/B 3-Conductor 1/4" Stereo Phone plug in Black/Gold
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NP3C/B 3-Conductor 1/4" Stereo Phone plug in Black/Gold
Sale price$6.00
Regular price$8.20
Description
1/4 professional phone plug, all metal, no rivets. Black metal housing with gold contacts.
| Electrical | |
| Rated current | depends on mating connector |
| Contact resistance | depends on mating connector |
| Insulation resistance - initial | > 2 G , after damp heat test = 1 G |
| Dielectric strength | 1 kV dc |
| Mechanical | |
| Wiring | solder terminals |
| Wire size | 1 mm_ / AWG 18 |
| Cable O.D | 4 - 7 mm |
| Solderability | complies with IEC 68-2-20 |
| Materials | |
| Shell | ZnAl4Cu1, Ni or black Cr plated |
| RCS | only Ni plated / PA6 50% GR |
| Insulation | PA 6.6 30% GR |
| Contacts | CuZn39Pb3, 2 µm Ni (Su) or gold plated |
| Chuck | POM |
| Bushing | POM + PU |
| Temperature range | -20¡C to +65¡C |
1/4 professional phone plug, all metal, no rivets. Black metal housing with gold contacts.
| Electrical | |
| Rated current | depends on mating connector |
| Contact resistance | depends on mating connector |
| Insulation resistance - initial | > 2 G , after damp heat test = 1 G |
| Dielectric strength | 1 kV dc |
| Mechanical | |
| Wiring | solder terminals |
| Wire size | 1 mm_ / AWG 18 |
| Cable O.D | 4 - 7 mm |
| Solderability | complies with IEC 68-2-20 |
| Materials | |
| Shell | ZnAl4Cu1, Ni or black Cr plated |
| RCS | only Ni plated / PA6 50% GR |
| Insulation | PA 6.6 30% GR |
| Contacts | CuZn39Pb3, 2 µm Ni (Su) or gold plated |
| Chuck | POM |
| Bushing | POM + PU |
| Temperature range | -20¡C to +65¡C |
