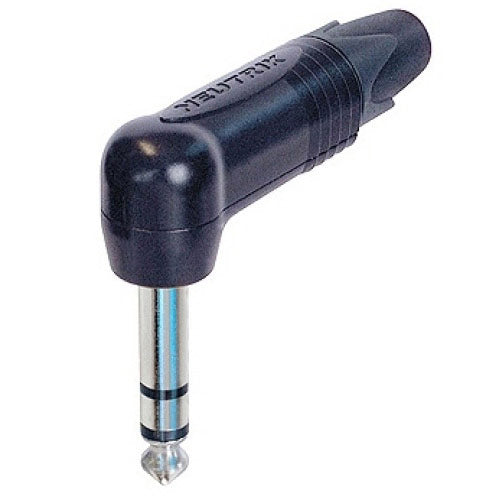

Neutrik NP3RX-BAG 3-Pole 1/4" Right Angle Professional Phone Plug - Black/Silver
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
3 pole 1/4" professional phone plug, nickel contacts, black shell
Features:
- Extra slim 1/4" plug for highest packing density
- Robust diecast shell in stylish design
- Improved chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
| Product | |||||||||||||||||||||||||||||||||
| Connector Type | Plug | ||||||||||||||||||||||||||||||||
| Gender | male | ||||||||||||||||||||||||||||||||
| Electrical | |||||||||||||||||||||||||||||||||
| Contact resistance | depends on mating connector mΩ | ||||||||||||||||||||||||||||||||
| Dielectric strength | 1 kVdc | ||||||||||||||||||||||||||||||||
| Insulation resistance | > 2 GΩ (initial) | ||||||||||||||||||||||||||||||||
| Insulation resistance | ≥ 1 GΩ (after damp heat test) | ||||||||||||||||||||||||||||||||
| Rated current per contact | depends on mating connector A | ||||||||||||||||||||||||||||||||
| Rated voltage | 50 V | ||||||||||||||||||||||||||||||||
| Mechanical | |||||||||||||||||||||||||||||||||
| Cable O.D | 4 - 7 mm | ||||||||||||||||||||||||||||||||
| Lifetime | > 1000 mating cycles | ||||||||||||||||||||||||||||||||
| Wire size | 1 mm_ | ||||||||||||||||||||||||||||||||
| Wire size | 18 AWG | ||||||||||||||||||||||||||||||||
| Wiring |
