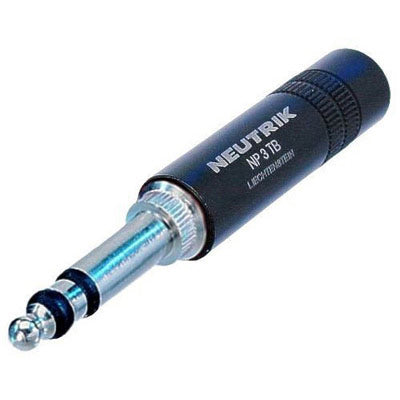

Neutrik NP3TB-B - 1/4" B-Gauge 3-Pole Plug (Black Shell / Nickel Contacts)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
1/4" 'B-Gauge' plug (BPO 316), black metal housing, nickel contacts
Professional phone plug according B-Gauge standard BPO316. Featuring similar construction as the standard Neutrik phone plugs with chuck type strain relief and slimline metal barrel. These plugs are not compatible with standard 1/4" jacks (acc. EIA RS453) and patch panels.
Features:
- 1/4" 'B-Gauge' plug (BPO 316)
- One-piece Tip conductor ensures secure conductivity
- Metal shell and chuck type cable retention - robust and dependable
| Product | |||||||||||||||||||||||||||||||||||||
| Connector Type | Plug | ||||||||||||||||||||||||||||||||||||
| Gender | male | ||||||||||||||||||||||||||||||||||||
| Electrical | |||||||||||||||||||||||||||||||||||||
| Contact resistance | depends on mating connector mOhms | ||||||||||||||||||||||||||||||||||||
| Dielectric strength | 1 kVdc | ||||||||||||||||||||||||||||||||||||
| Insulation resistance | > 2 GOhms (initial) | ||||||||||||||||||||||||||||||||||||
| Insulation resistance | ≥ 1 GOhms (after damp heat test) | ||||||||||||||||||||||||||||||||||||
| Rated current per contact | ≤ 15 A | ||||||||||||||||||||||||||||||||||||
| Mechanical | |||||||||||||||||||||||||||||||||||||
| Cable O.D | 4 - 7 mm | ||||||||||||||||||||||||||||||||||||
| Wire size | 1 mm_ | ||||||||||||||||||||||||||||||||||||
| Wire size | 18 AWG | ||||||||||||||||||||||||||||||||||||
| Wiring | Solder contacts | ||||||||||||||||||||||||||||||||||||
| Material | |||||||||||||||||||||||||||||||||||||
| Contact plating | 2 µm Ni (Su) | ||||||||||||||||||||||||||||||||||||
| Contacts | Brass (CuZn39Pb3) | ||||||||||||||||||||||||||||||||||||
| Insert |
