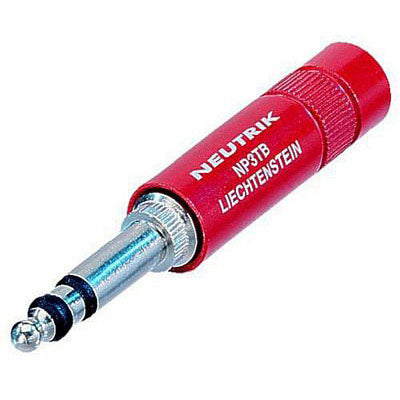

Neutrik NP3TB-R 3 Conductor 1/4" TRS Patch Connector - Red/Nickel
Dale #:
NEUT-NP3TBRAvailability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
1/4 'B-Gauge' plug (BPO 316), red metal housing, Nickel contacts. Professional phone plug according B-Gauge standard BPO316. Featuring similar construction as the standard Neutrik phone plugs with chuck type strain relief and slimline metal barrel. These plugs are not compatible with standard 1/4... Read MoreRetail Price: $8.47 Our Price: $7.26
Shipping Charges Apply
Suggested Accessories
Description
1/4 'B-Gauge' plug (BPO 316), red metal housing, Nickel contacts. Professional phone plug according B-Gauge standard BPO316. Featuring similar construction as the standard Neutrik phone plugs with chuck type strain relief and slimline metal barrel. These plugs are not compatible with standard 1/4 jacks (acc. EIA RS453) and patch panels.
Features :- ¼ B-Gauge and MIL type plugsOne-piece Tip conductor ensures secure conductivityMetall shell and chuck type cable retention - robust and dependable
More +
Product Specs
| Product | |
| Connector Type | Plug |
| Gender | male |
| Electrical | |
| Contact resistance | depends on mating connector mOhms |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 GOhms (initial) |
| Insulation resistance | ≥ 1 GOhms (after damp heat test) |
| Rated current per contact | ≤ 15 A |
| Mechanical | |
| Cable O.D | 4 - 7 mm |
| Wire size | 1 mm² |
| Wire size | 18 AWG |
| Wiring | Solder contacts |
| Material | |
| Contact plating | 2 µm Ni (Su) |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Brass (CuZn39Pb3) |
| Shell plating | Red coated |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Standard compliance | B-Gauge BP0316 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 °C to +65 °C |
