NEUT-NP3TT1BAvailability:
In StockAvailable for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm
Description

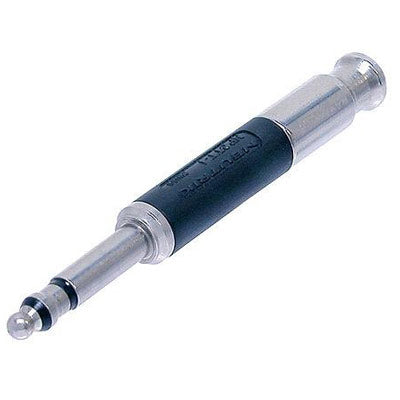

Neutrik Plug TT Black Plastic/ Nickel - RG58 crimp 4.4 mm `Bantam` plug, solder termination for T + R, crimp termination for S, black plastic housing, Nickel contacts. 4.4 mm (0.173) tiny telefone plug bantam type featuring 3 conductors and HEX crimp cable strain relief. Ideal use with TT patch p... Read MoreRetail Price: $8.57 Our Price: $7.34
Free Shipping (orders over $99)
Suggested Accessories
Description
Neutrik Plug TT Black Plastic/ Nickel - RG58 crimp 4.4 mm `Bantam` plug, solder termination for T + R, crimp termination for S, black plastic housing, Nickel contacts. 4.4 mm (0.173) tiny telefone plug bantam type featuring 3 conductors and HEX crimp cable strain relief. Ideal use with TT patch panels. These plugs have solder contacts for Tip and Ring and crimp termination for the Sleeve contact, as well as red or black plastic handles for quick assembly.
Features:Also known as miniature or tiny telephone type plugs. These plugs have solder contacts for cable termination, and a hex crimp for cable anchor with the cable strain relief locked over the crimp. Note that they are a "one-shot" connector - they are not reusable due to the crimp cable retention. Coloured sleeves are available for both types. Please note that Canford does not consider these connectors suitable for use with tinsel cable.
NP3TT-P - These are assembled using a standard hex crimp tool, and are available with black or red shells. Spare coloured shells are type BSTP.
NP3TT-1 - These are assembled using a special crimp tool, which includes a special part to fit the non-removable strain relief. They are available with black or red shells and metal rear bush. Spare coloured shells are type BSTT. The crimp tool is available for hire - see the Hires section (UK only).
More +
Product Specs
Product | |
Connector Type | Plug |
Gender | male |
Electrical | |
Contact resistance | depends on mating connector mohms |
Dielectric strength | 1 kVdc |
Insulation resistance | > 2 Gohms (initial) |
Insulation resistance | > 1 Gohms (after damp heat test) |
Rated current per contact | depends on mating connector A |
Rated voltage | 50 V |
Mechanical | |
Cable O.D. | 4 - 4.8 mm |
Crimp size | 5 Hex crimp (shield) |
Lifetime | > 1000 mating cycles |
Wire size | 0,25 mm² |
Wire size | 24 AWG |
Wiring | Solder contacts |
Material | |
Bushing | Polyacetal (POM) + PU |
Contact plating | 2 µm Ni (Su) |
Contacts | Brass (CuZn39Pb3) |
Contacts | Bronze (CuSn6) (Tip) |
Insert | Polyamide (PA 6.6 30 % GR) |
Shell | Brass (CuZn39Pb3) |
Shell plating | 2 µm Ni (Su) + PA 6 30% GR (black) |
Environmental | |
Standard compliance | MIL-P-642/13 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -20 °C to +65 °C |
