Nixer PLR64K - Dante Confidence Monitoring System with Wall Controller


  • Dale #:

    NIXE-NIX00533
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Specifically designed to allow an operator/commentator to access any two independently selectable sources on the Dante network via a simple remote control panel. Each display shows Channel Name and provides an output meter level. Balanced XLR outputs provide feeds to local speakers or headphone... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Specifically designed to allow an operator/commentator to access any two independently selectable sources on the Dante network via a simple remote control panel. Each display shows Channel Name and provides an output meter level. Balanced XLR outputs provide feeds to local speakers or headphones. Perfect for on-air and live applications where critical confidence monitoring is essential.

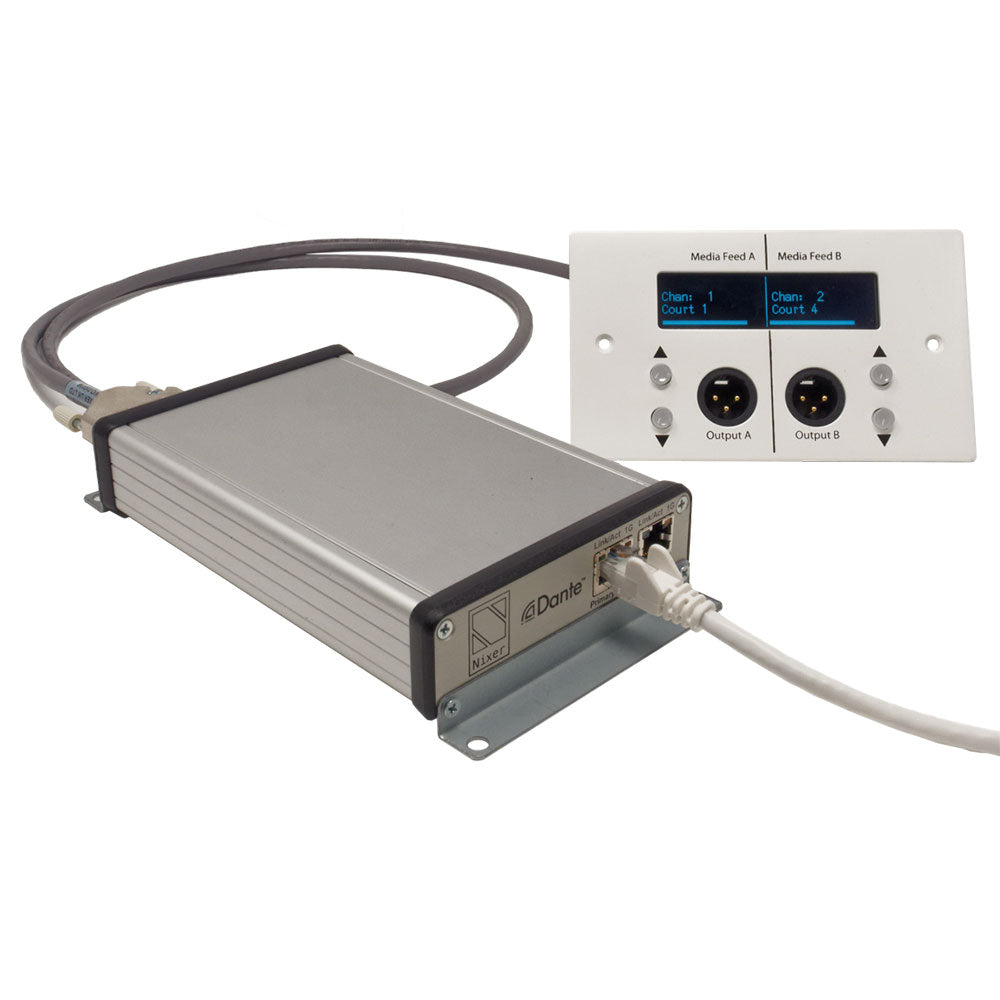

A kit consisting of three parts the PLR64 Dante, 2 Gang Wall Plate Remote controller and Remote Cable 1.5M D-sub cable. It does not include a PSU as standard but one can be purchased at extra cost.

The PLR64 would normally be mounted to a wall or beneath a desk and then wired via the remote cable to the 2 gang wall plate remote controller. The remote controller allows the independent selection for each output from the incoming Dante stream. Each output displays the selected Dante channel name and output signal level on the OLED display. Channel selection is made via scrolling up/down the available Dante channels via a pair of switches for each output. Each output is presented on a 3 pin male XLR. The signal is electronically balanced and provides +21dBu for 0dBFS of signal level.

Firmware updates of the PLR64 Dante are achieved via a dedicated USB micro B connector on the end panel. There is also a dedicated 3.5mm jack socket for the headphone output.

More +

Product Specs

NIX00533 - PLR64K Dante kit consists 1x NIX00528 - PLR64 Dante unit
1x NIX00517 - 2 Gang Wall Plate Remote controller
1x NIX00551 - Remote Cable 1.5M D-sub cable
NIX00528 - PLR64 Dante unit
Connections 3.5mm Headphone socket
Headphone output for driving loads from 8ohm to 600ohm
Dante Ports Dual 1Gbps RJ45 Dante inputs
1Gbps or 100Mbps operation
User configurable for Switched or Redundant operation
Power input PoE (13W) on Primary RJ45 connector
USB input (1.5A) auto negotiates with connected USB port
Direct from Mac/PC USB connector capable of delivering 1.5A
USB USB mains adaptor
USB battery pack
Both power inputs can be active at the same time for redundancy
USB port is used for product firmware updates
Outputs Outputs can be selected from any of up to 64 Dante channels at 48kHz (32 channels at 96kHz)
2 independent outputs selectable from available Dante input channels
Sample rates supported 44.1kHz, 48kHz and 96kHz
Bit Depths supported 16bit, 24bit and 32bit
Dante Compatibility AES67 compatible
Fully compatible with Dante Domain Manager
NIX00517 - 2 Gang Wall Plate Remote controller
Compatibility Can be connected to the PLR64 Dante (or PD Dante)
Outputs Dual Balanced Line Outputs 0dBFS = +21dBu maximum output into 600ohms 2x 3pin male XLR connectors
Input Source Source for each output independently selectable from any of the 64 Dante input channels via selector buttons
Display OLED display showing for each channel
Selected Dante channel name
Signal level meter
Power Power is supplied from PLR64
Mounting Mounts in a standard 2 gang wall plate (UK)
NIX00551 - Remote Cable 1.5M D-sub cable
Length / Type 1.5meter multicore cable
Connections One end terminated with 15way male D-sub including shell and screw locks
Second end unterminated with tinned and stripped leads individually labelled
Unterminated leads to allow cable to be fed through trunking
Idented leads fit to screw terminals on NIX00517
NIX00583 - PoE PSU Kit – not supplied as standard in PLR64K Dante kit but will be required if not powering from a PoE network switch
Power PoE plug top supply
Worldwide plug adaptor kit
2M RJ45 Cat6 flat cable
Available as a cost option
Dimensions
NIX00528 - PLR64 Dante unit
Size 195.85mm length x 106mm width x 34mm height (length including mounting brackets)
Weight 0.5kG
NIX00517 - 2 Gang Wall Plate Remote controller
Size 146mm length x 86mm width x 35mm total height – requires a back box with a minimum depth of 35mm
Weight 165g
