Nixer RL256 - 256-Channel Audio over IP Monitor (Ravenna)


  • Dale #:

    NIXE-NIX00600R256
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The RL Series are a powerful family of 1U 19-inch rack mounted AoIP monitoring and mixing units. 4 models are available: the RL64, RL128, RL192 and RL256, and each unit can be configured at time of purchase to be Dante or Ravenna compatible. RL Series units allows two modes of operation a mixing ... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The RL Series are a powerful family of 1U 19-inch rack mounted AoIP monitoring and mixing units. 4 models are available: the RL64, RL128, RL192 and RL256, and each unit can be configured at time of purchase to be Dante or Ravenna compatible.

RL Series units allows two modes of operation a mixing mode which can mix up to 256 channels at 48kHz (128 channels at 96kHz) plus microphone input (via headphone connector) and AES input to create a 259 into 2 mixer. Alternatively, it can be set into a simple Listen mode where touching a channel instantly routes to the LR output and cancels any previous selection.

The outputs of the LR bus are presented to the user via the onboard 4mm x 9mm full range speakers or via the 3.5mm headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via XLR connectors on the rear of the RL Series Unit. The mix output is also routed to the AoIP output.

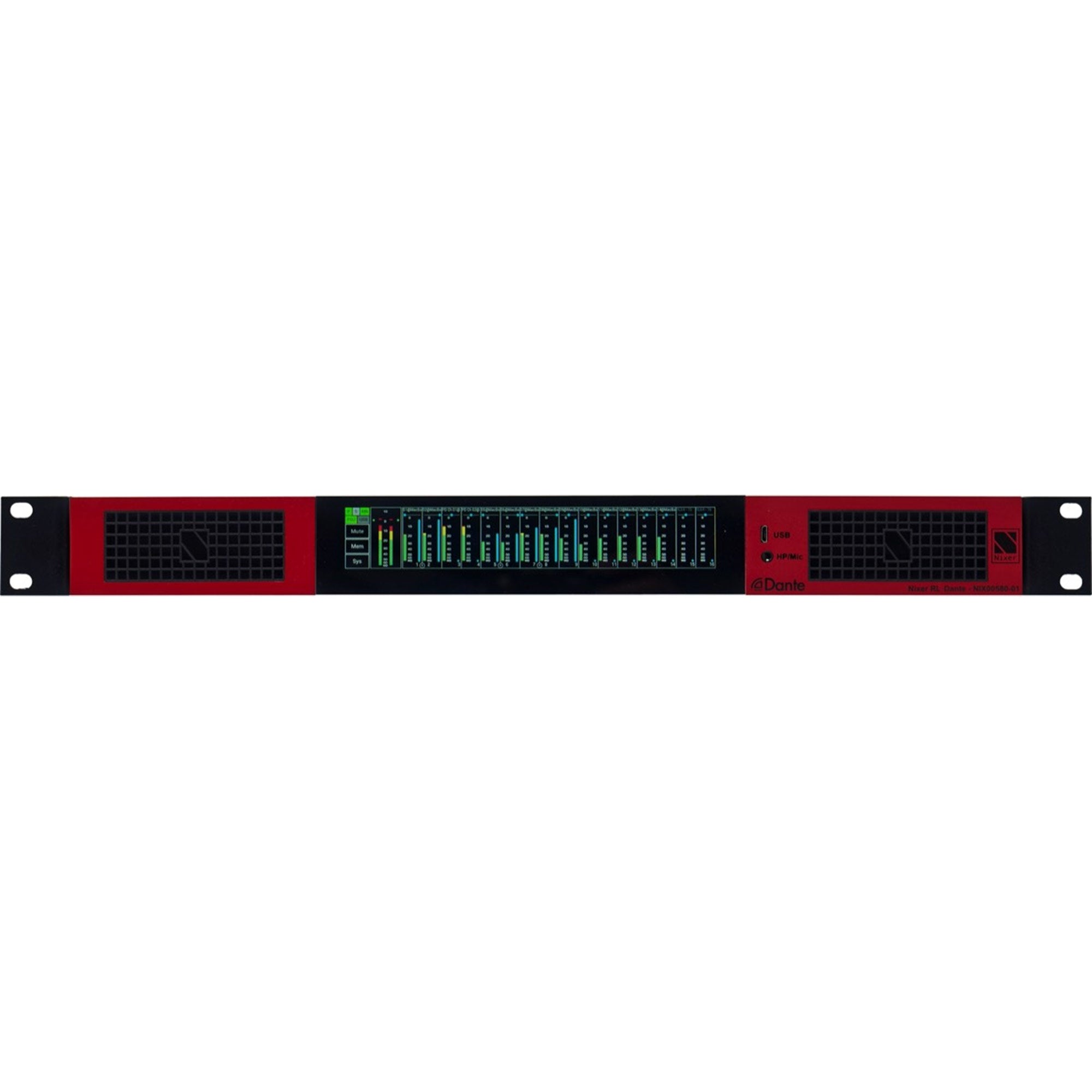

The RL Series units are operated and controlled via the large letterbox 6.6" diagonal (168mm) 1440 x 240 24-bit color LCD and capacitive touch panel.

A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the RL Series unit very quickly. The high-resolution screen is easy to read presenting comprehensive metering, routing and status information to the user.

Firmware updates of the RL Series unit are achieved via a dedicated USB micro AB connector on the front panel. There is also a dedicated 3.5mm jack socket for the headphone output.

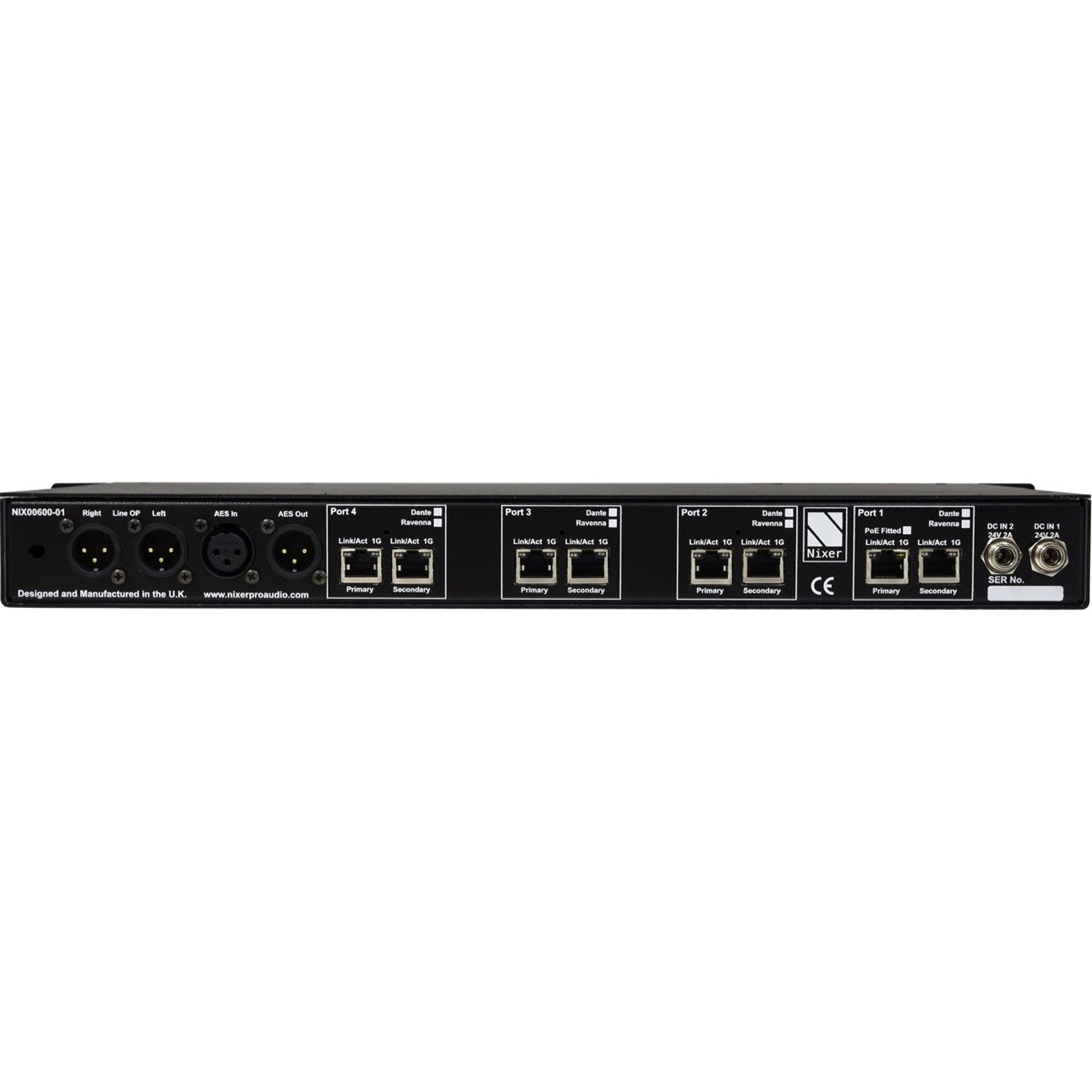

On the rear of the RL Series unit there are 4x Primary and Secondary ports for up to 4x AoIP inputs. 2x balanced line outputs on 3 pin male XLRs and AES output also on 3 pin male XLR. These outputs can be configured to follow the main volume settings of the speakers/headphones or they can also be set to follow the main Mute control. Additionally, there is an AES input via 3 pin female XLR connector

The RL Series unit can be powered via either of the two 2.5mm DC input connectors requiring 24V @ 2A. These inputs also have a screw lock to prevent accidental unplugging. Using both inputs provides redundancy. The optional NIX00629 can be used to power the RL256.

More +

Product Specs

AoIP monitoring unit with four channel count options RL64 64 channels on 1 pair of 1Gbit network ports
RL128 128 channels on 2 pairs of 1Gbit network ports
RL192 192 channels on 3 pairs of 1Gbit network ports
RL256 256 channels on 4 pairs of 1Gbit network ports
AoIP supported Dante supporting:
Dante Controller
Dante Domain Manager
AES67
SMPTE 2110
-
Ravenna supporting:
AES67
SMPTE 2110
NMOS
Sample rates supported 44.1kHz
48kHz
88.2kHz
96kHz
Bit Depth supported 16bit
24bit
32bit
Depending on version up to 259 x 2 mixer with the following controls Pan
Level
PFL
Option to Link odd and even adjacent channels into stereo pairs
Output Built in speakers/headphones
Line Output
AES3 Output
Up to 259 channel meters (16 displayed at a time) High resolution meters switchable scale standards from EBU to SMPTE
Screen swipe left and right to allow viewing of all meters
Screen swipe down to present navigation controls
Selection of Port to be viewed from 1 to 4
Jump +16 channels
Jump -16 channels
Jump to end
Jump to beginning
Main LR meters Large high-resolution meters displaying +10dBFS down to -60dBFS in 1dB steps
Optional Peak hold
Limiter operation indicators
Internal 2W/channel amplifier feeding either 2x 4mm x 9mm full range drivers
Headphone output
Dual Balanced Line Outputs 0dBFS = +21dBu maximum output into 600ohms 2x 3pin male XLR connector
Fed from main Stereo LR bus
Option to follow main volume control
Output Mute relays
Stereo AES3 output on 3pin male XLR connector Fed from main Stereo LR bus
Option to follow main volume control
Stereo AES3 Input on 3pin female XLR connector SRC converts from 44.1kHz, 48kHz or 96kHz to RL64 sample rate
AES3 routing to main mix via
Level
PFL
3.5mm Headphone socket and microphone input Headphone output for driving loads from 8ohm to 600ohm
Microphone input routing to main mix via
Input Gain control 0dB to 30dB
Pan
Level
PFL
Socket wiring is suitable for use with most common mobile phone headsets
Up to 8x 1Gbps RJ45 AoIP inputs 1Gbps operation
User configurable for Switched or Redundant operation
Network configuration information available via menu
Power input 2x 2.5mm DC inputs sockets with screw lock for use with external 24V 2amp adaptor (not supplied)
Recommended NIX00629 24V 1.5A Power adaptor 90-264VAC input with multi-blade adaptors. 2.5mm screw lock plug (Cost option)
Both power inputs can be active at the same time for redundancy
USB port for product firmware updates
LCD 6.6” (168mm) diagonal 24-bit colour LCD with 1440xRGBx240 resolution
LED backlight (adjustable brightness via software)
multi touch capacitive touch overlay with gesture support
Size 494mm wide by 210mm deep by 44mm height
Weight 2.0kG (6.6 lbs)
Rack Mounting 19inch rack mounting ears can be removed for desktop use
