Nixer RLC64 - 64-Channel Audio Over IP Monitor (Ravenna)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
A 1U 19inch rack mounted AoIP monitoring and mixing unit. RLC64 allows two modes of operation a mixing mode which can mix up to 64 channels at 48kHz (32 channels at 96kHz) plus microphone input (via headphone connector) and AES input to create a 67 into 2 mixer. Alternatively, it can be set into a simple Listen mode where touching a channel instantly routes to the LR output and cancels any previous selection.
The outputs of the LR bus are presented to the user via the inbuilt 4mm x 9mm full range speakers or via the 3.5mm headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via XLR connectors on the rear of the RLC64. The mix output is also routed to the AoIP output.

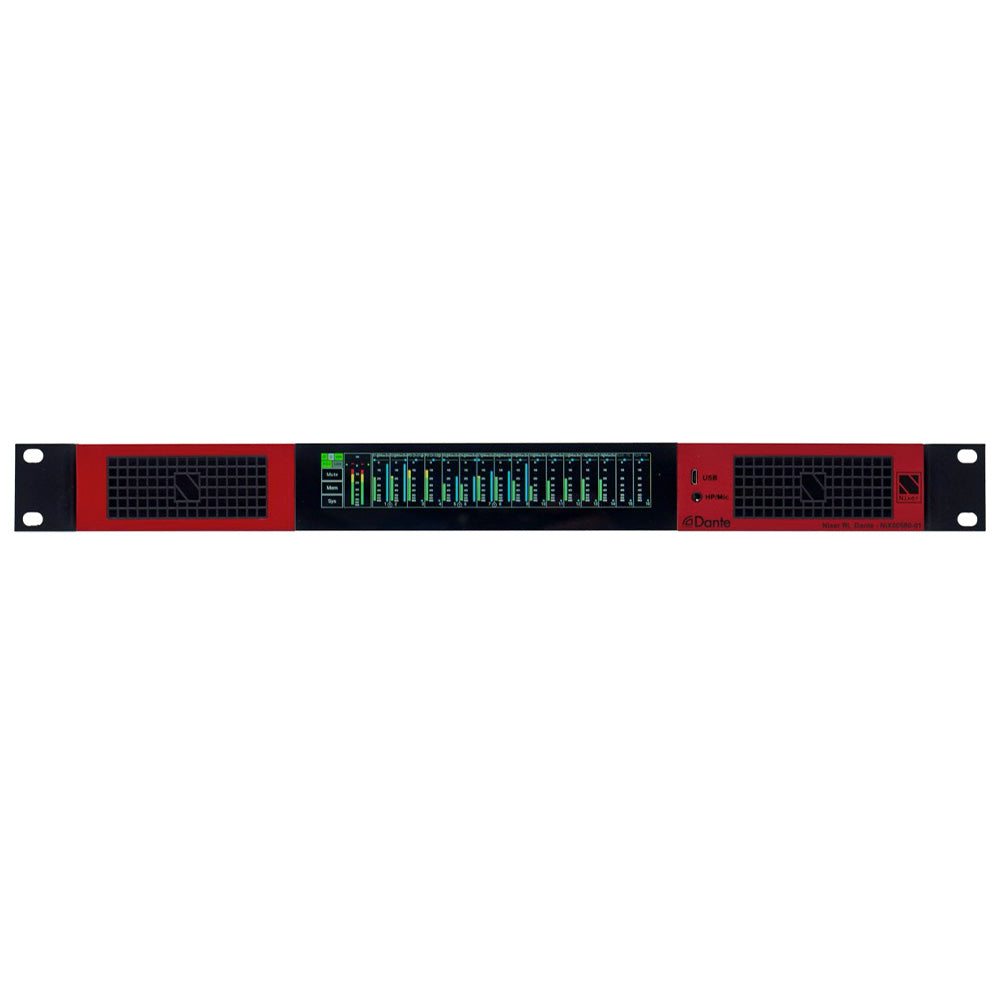

The RLC64 is operated and controlled via the large letterbox 6.6” diagonal (168mm) 1440 x 240 24-bit colour LCD and capacitive touch panel.
Features:
- Compact 1RU 120mm deep design for portable and fly-away broadcast applications
- Rapid bootup for fast deployment
- Perfect for on-site audio confidence monitoring
- High resolution screen with clear metering and quick source touch screen navigation
- Separate Mic and AES inputs
- AES output and headphone
- Available as either Dante or Ravenna at time of purchase
A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the RLC64 very quickly. The high-resolution screen is easy to read presenting comprehensive metering, routing and status information to the user.
Firmware updates of the RLC64 are achieved via a dedicated USB micro AB connector on the front panel. There is also a dedicated 3.5mm jack socket for the headphone output.

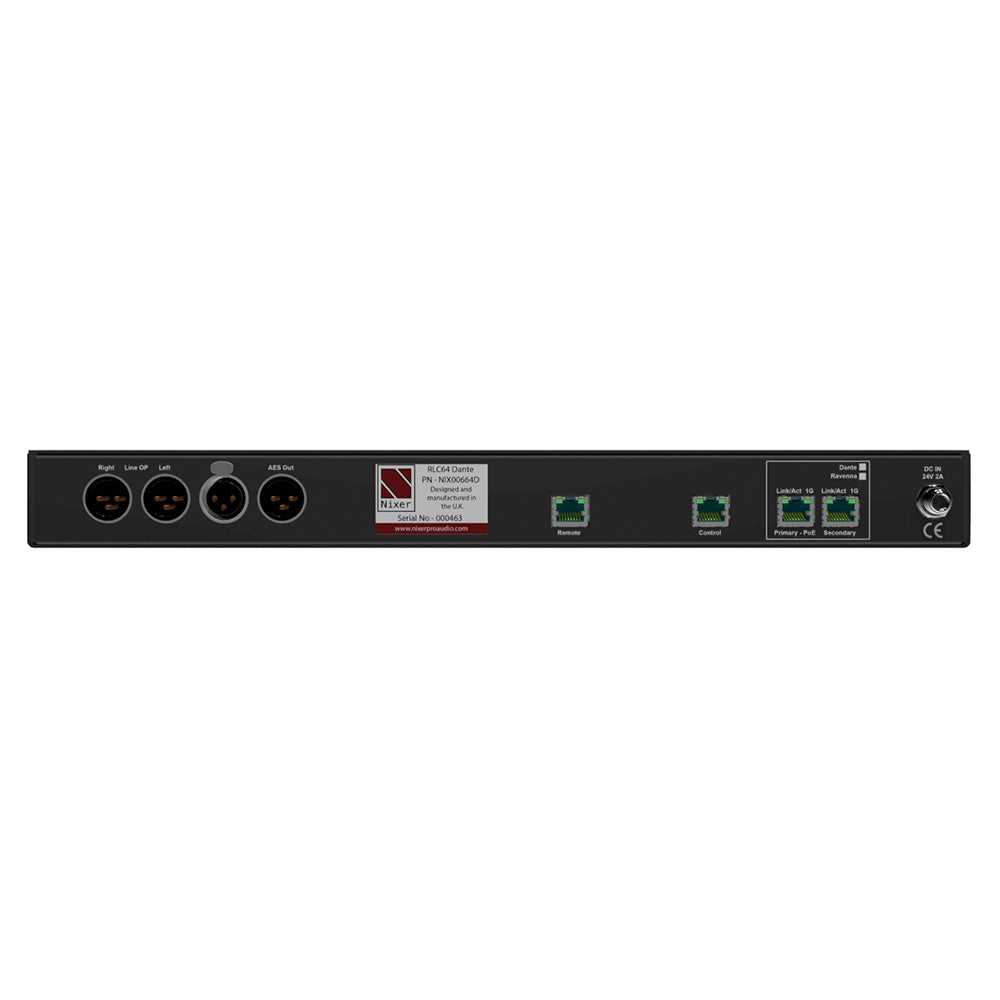

On the rear of the RLC64 unit there is a Primary and Secondary port for the AoIP input. The Control RJ45 allows the RLC64 to remotely controlled via NixNet. The Remote RJ45 is a bespoke remote control port for additional accessories (note it is not compatible with ethernet).
The RLC64 can be powered via PoE on the Primary port and/or via the 2.5mm DC input connectors requiring 24V @ 2A. The DC input also have a screw lock to prevent accidental unplugging. Using both the PoE and the DC inout provides redundancy. The optional NIX00583 or the NIX00629 can be used to power the RLC64.
| Functionality | AoIP Audio Monitor |
| Modes | Dedicated Mix or Listen modes Mix mode allows for Panning and Level control Channels can be configured as Mono or Stereo |
| Outputs | Main output has 3 band EQ and Limiter Mic input via 3.5mm jack input AES In and AES Out Monitor Output via Headphone, Built-in speakers, Balanced Line Outputs or AES Out |
| Metering | 67 channel meters (16 displayed at a time) High resolution meters switchable scale standards from EBU or SMPTE |
| Audio Networking | Dante or Ravenna option - at time of purchase AES67 compatible SMPTE 2110 compatible Fully compatible with New Dante Domain Manager Ð Dante option only |
| Sample rates supported | 44.1kHz 48kHz 88.2kHz 96kHz |
| Bit Depth supported | 16bit 24bit 32bit |
| AoIP inputs | Dual 1Gbps RJ45 1Gbps or 100Mbps operation (Ravenna supports 1Gb only) User configurable for Switched or Redundant operation Network configuration information available via menu |
| Speakers and Headphones | Internal 2W/channel amplifier feeding either 2x 40mm x 90mm full range drivers or 3.5mm Headphone socket (with microphone input) Headphone output can drive loads from 8ohm to 600ohm |
| Dual Balanced Line Outputs | 2x 3pin male XLR connectors Fed from any input 0dBFS = +21dBu maximum output into 600ohms Output Mute relays |
| AES In and AES Out | Stereo AES3 Input on 3pin female XLR connector SRC converts from 44.1kHz, 48kHz or 96kHz to RL64 sample rate AES3 routing to any output Stereo AES3 output on 3pin male XLR connector Fed from any input |
| Control input | Single RJ45 100Mbs NixNet remote control of the product |
| Remote Control | Single RJ45 - NOT ethernet Wired remote control option on RJ45 connector For use with optional hardware remote controllers RS485 balanced TX and RX pairs 5V feed to connected device (up to 200mA) Note: this connector is not compatible with standard ethernet connectors |
| Other Ports | USB port is also used for product firmware updates |
| Power input | PoE (13W) on Primary RJ45 connector 2.5mm DC inputs socket for use with external 24V 2amp adaptor Both power inputs can be active at the same time for redundancy |
| LCD | 6.6Ó (168mm) diagonal 24-bit colour LCD with 1440xRGBx240 resolution LED backlight (adjustable brightness via software) multi touch capacitive touch overlay with gesture support |
| Dimensions | 494mm wide by 120mm deep by 44mm height |
| Weight | 2.0kg |
| Note | 19inch rack mounting ears can be removed for desktop use |
A 1U 19inch rack mounted AoIP monitoring and mixing unit. RLC64 allows two modes of operation a mixing mode which can mix up to 64 channels at 48kHz (32 channels at 96kHz) plus microphone input (via headphone connector) and AES input to create a 67 into 2 mixer. Alternatively, it can be set into a simple Listen mode where touching a channel instantly routes to the LR output and cancels any previous selection.
The outputs of the LR bus are presented to the user via the inbuilt 4mm x 9mm full range speakers or via the 3.5mm headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via XLR connectors on the rear of the RLC64. The mix output is also routed to the AoIP output.
The RLC64 is operated and controlled via the large letterbox 6.6” diagonal (168mm) 1440 x 240 24-bit colour LCD and capacitive touch panel.
Features:
- Compact 1RU 120mm deep design for portable and fly-away broadcast applications
- Rapid bootup for fast deployment
- Perfect for on-site audio confidence monitoring
- High resolution screen with clear metering and quick source touch screen navigation
- Separate Mic and AES inputs
- AES output and headphone
- Available as either Dante or Ravenna at time of purchase
A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the RLC64 very quickly. The high-resolution screen is easy to read presenting comprehensive metering, routing and status information to the user.
Firmware updates of the RLC64 are achieved via a dedicated USB micro AB connector on the front panel. There is also a dedicated 3.5mm jack socket for the headphone output.
On the rear of the RLC64 unit there is a Primary and Secondary port for the AoIP input. The Control RJ45 allows the RLC64 to remotely controlled via NixNet. The Remote RJ45 is a bespoke remote control port for additional accessories (note it is not compatible with ethernet).
The RLC64 can be powered via PoE on the Primary port and/or via the 2.5mm DC input connectors requiring 24V @ 2A. The DC input also have a screw lock to prevent accidental unplugging. Using both the PoE and the DC inout provides redundancy. The optional NIX00583 or the NIX00629 can be used to power the RLC64.
| Functionality | AoIP Audio Monitor |
| Modes | Dedicated Mix or Listen modes Mix mode allows for Panning and Level control Channels can be configured as Mono or Stereo |
| Outputs | Main output has 3 band EQ and Limiter Mic input via 3.5mm jack input AES In and AES Out Monitor Output via Headphone, Built-in speakers, Balanced Line Outputs or AES Out |
| Metering | 67 channel meters (16 displayed at a time) High resolution meters switchable scale standards from EBU or SMPTE |
| Audio Networking | Dante or Ravenna option - at time of purchase AES67 compatible SMPTE 2110 compatible Fully compatible with New Dante Domain Manager Ð Dante option only |
| Sample rates supported | 44.1kHz 48kHz 88.2kHz 96kHz |
| Bit Depth supported | 16bit 24bit 32bit |
| AoIP inputs | Dual 1Gbps RJ45 1Gbps or 100Mbps operation (Ravenna supports 1Gb only) User configurable for Switched or Redundant operation Network configuration information available via menu |
| Speakers and Headphones | Internal 2W/channel amplifier feeding either 2x 40mm x 90mm full range drivers or 3.5mm Headphone socket (with microphone input) Headphone output can drive loads from 8ohm to 600ohm |
| Dual Balanced Line Outputs | 2x 3pin male XLR connectors Fed from any input 0dBFS = +21dBu maximum output into 600ohms Output Mute relays |
| AES In and AES Out | Stereo AES3 Input on 3pin female XLR connector SRC converts from 44.1kHz, 48kHz or 96kHz to RL64 sample rate AES3 routing to any output Stereo AES3 output on 3pin male XLR connector Fed from any input |
| Control input | Single RJ45 100Mbs NixNet remote control of the product |
| Remote Control | Single RJ45 - NOT ethernet Wired remote control option on RJ45 connector For use with optional hardware remote controllers RS485 balanced TX and RX pairs 5V feed to connected device (up to 200mA) Note: this connector is not compatible with standard ethernet connectors |
| Other Ports | USB port is also used for product firmware updates |
| Power input | PoE (13W) on Primary RJ45 connector 2.5mm DC inputs socket for use with external 24V 2amp adaptor Both power inputs can be active at the same time for redundancy |
| LCD | 6.6Ó (168mm) diagonal 24-bit colour LCD with 1440xRGBx240 resolution LED backlight (adjustable brightness via software) multi touch capacitive touch overlay with gesture support |
| Dimensions | 494mm wide by 120mm deep by 44mm height |
| Weight | 2.0kg |
| Note | 19inch rack mounting ears can be removed for desktop use |
