Nixer RS32 - Rack Mount 64x64 AoIP Network Switch (Dante Version)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

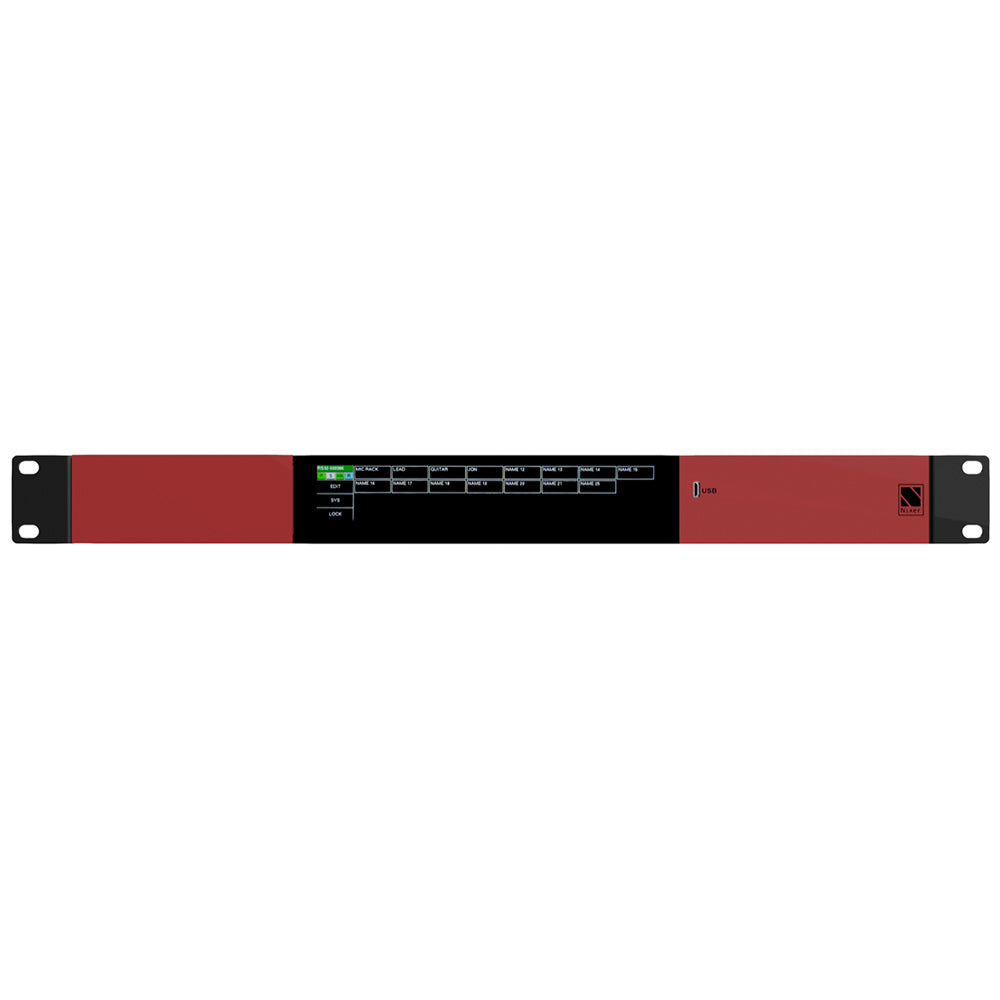

The Nixer RS32 is a 1U 19inch rack mounted AoIP switching unit. 2 models are available - Dante or Ravenna. RS32 allows for the simple set up and control of 32 AoIP switches. These can either be 2 into 1 input switches or 1 into 2 output switches which can be configured on a switch by with basis. All of the features are easily and simply controlled via the large intuitive touchscreen interface.
Once configured, switches can easily be operated by touching the respective switch on the touchscreen, resulting in near instantaneous changeover of the audio. It is also possible to gang switches together in any number from 2 through to 32.

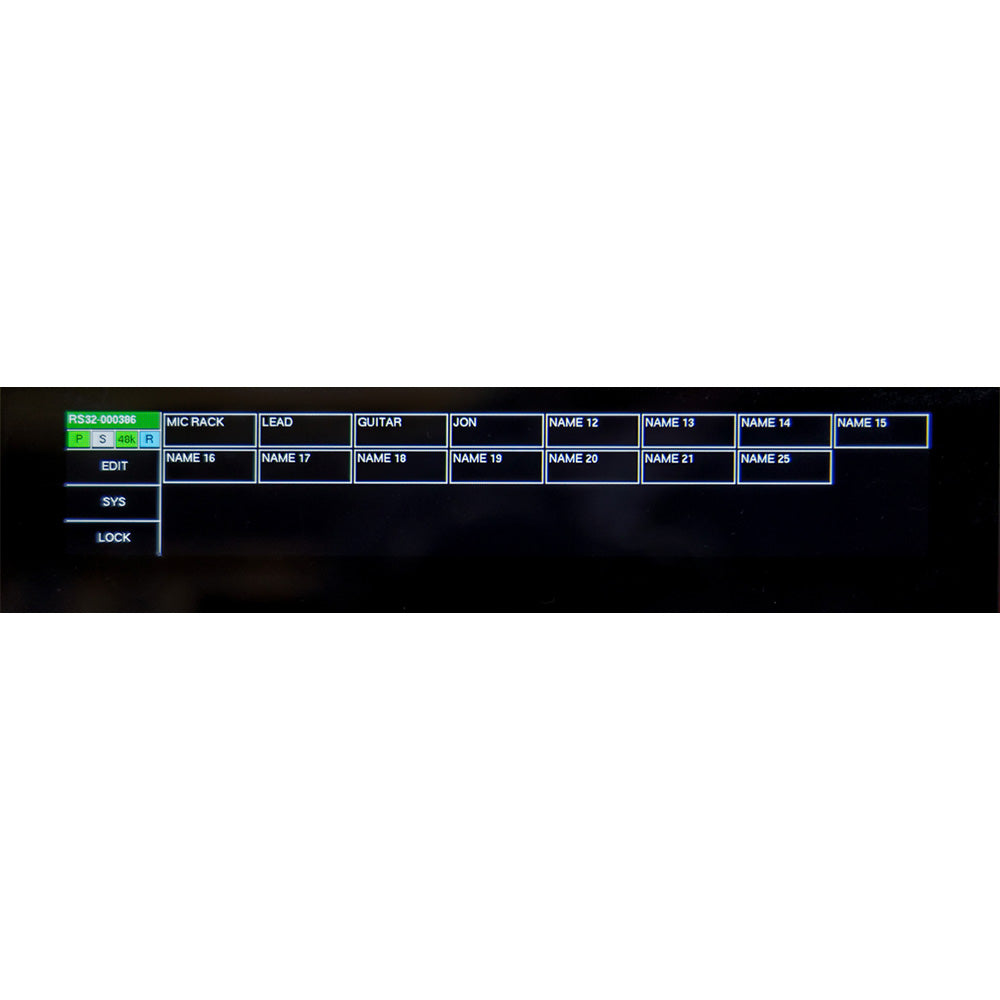

The RS32 is operated and controlled via the large letterbox 6.6" diagonal (168mm) 1440 x 240 24-bit colour LCD and capacitive touch panel.
Features:
- Compact 1RU design
- 64 AoIP Inputs and 64 AoIP Outputs at 48kHz
- 32 changeover switches
- Configurable individually as either 2 x 1 input switches or 1 x 2 output switches
- High resolution screen with easy to use interface
- Almost instantaneously switching between signals
- Available as either Dante or Ravenna at time of purchase
A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the RS32 very quickly. The high-resolution screen is easy to read presenting switching and status information to the user. Firmware updates of the RS32 is achieved via a dedicated USB micro AB connector on the front panel.

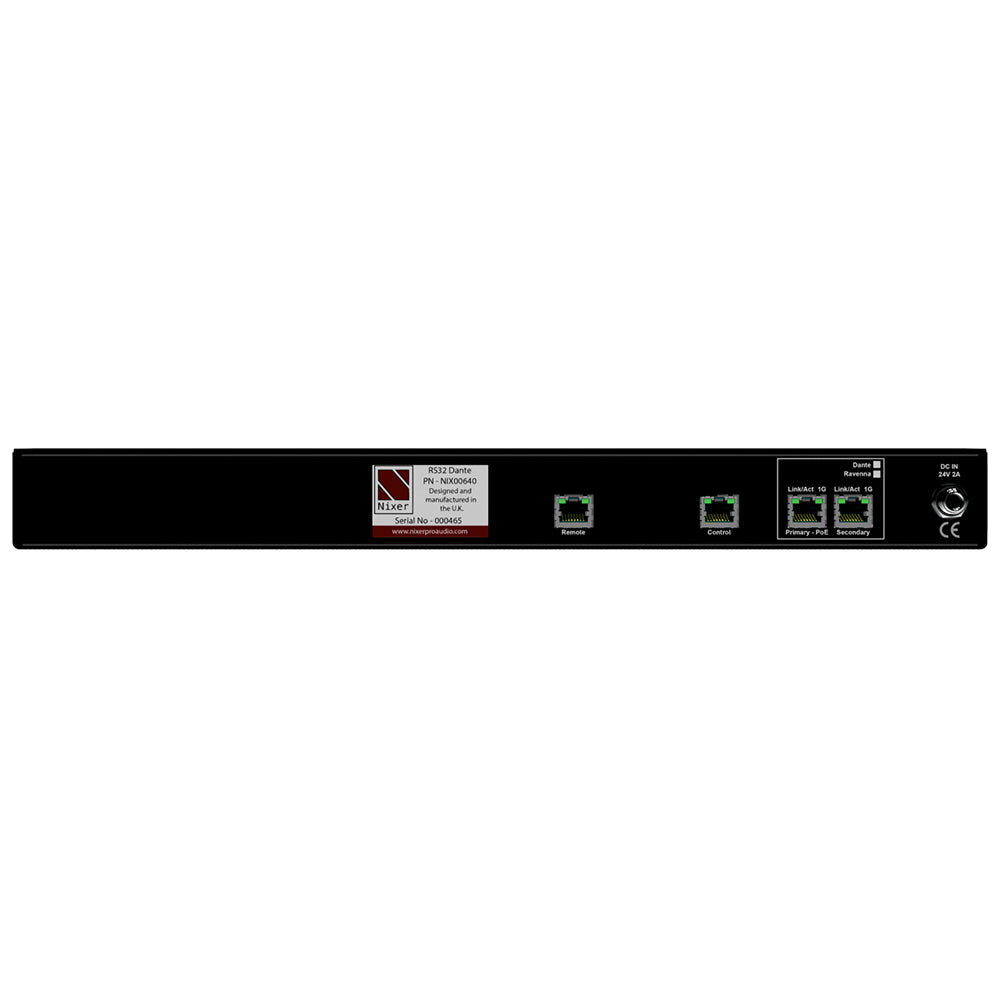

On the rear of the RS32 unit there is a Primary and Secondary port for the AoIP input. The Control RJ45 allows the RS32 to remotely controlled via OSC. The Remote RJ45 is a bespoke remote control port for additional accessories (note it is not compatible with ethernet).
The RS32 can be powered via PoE on the Primary port and/or via the 2.5mm DC input connectors requiring 24V @ 2A. The DC input also have a screw lock to prevent accidental unplugging. Using both the PoE and the DC input provides redundancy. The optional NIX00583 or the NIX00629 can be used to power the RS32 in the absence of PoE.
| Configuration | 32x 2 by 1 switches at 48kHz (16x 2 by 1 switches at 96kHz) |
| Sample rates supported | 44.1kHz 48kHz 88.2kHz 96kHz |
| Bit Depth supported | 16bit 24bit 32bit |
| Dante Compatibility | Fully compatible with New Dante Domain Manager |
| AoIP inputs | Dual 1Gbps RJ45 1Gbps or 100Mbps operation (Ravenna supports 1Gb only) User configurable for Switched or Redundant operation Network configuration information available via menu |
| Control input | Single RJ45 100Mbs OSC remote control of the product |
| Remote Control | Single RJ45 - NOT ethernet Wired remote control option on RJ45 connector For use with optional hardware remote controllers RS485 balanced TX and RX pairs 5V feed to connected device (up to 200mA) Note: this connector is not compatible with standard ethernet connectors |
| Power input | PoE (13W) on Primary RJ45 connector 2.5mm DC inputs socket for use with external 24V 2amp adaptor Both power inputs can be active at the same time for redundancy |
| Other Ports | USB port is also used for product firmware updates |
| LCD | 6.6Ó (168mm) diagonal 24-bit colour LCD with 1440xRGBx240 resolution LED backlight (adjustable brightness via software) multi touch capacitive touch overlay with gesture support |
| Dimensions | 494mm wide by 120mm deep by 44mm height |
| Weight | 1.0kg |
| Installation | 19inch rack mounting ears can be removed for desktop use |
