Nixer WL64-4 - 64-Channel Audio Over IP Monitor (Dante)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
A 1U 19inch rack mounted AoIP monitoring and mixing unit. WL64-4 allows three modes of operation a Mix mode, Listen Mode with Hold and Listen Mode with auto cancel. In each mode 4 independent mixes can be created of up to 64 channels at 48kHz (32 channels at 96kHz)
The Mix/Listen outputs are also routed to the AoIP output.
Each mix is controlled via the Nixer iPad app on up to 4 separate iPads. Each iPad is able to monitor it's own mix via its internal speakers or via headphones connected to the iPad. More iPads can be connected but they have to share mixes and control. Connection of the iPads to the WL64-4 is via Wi-Fi via the WL64-4 access point or via Ethernet and external Wi-Fi access point.

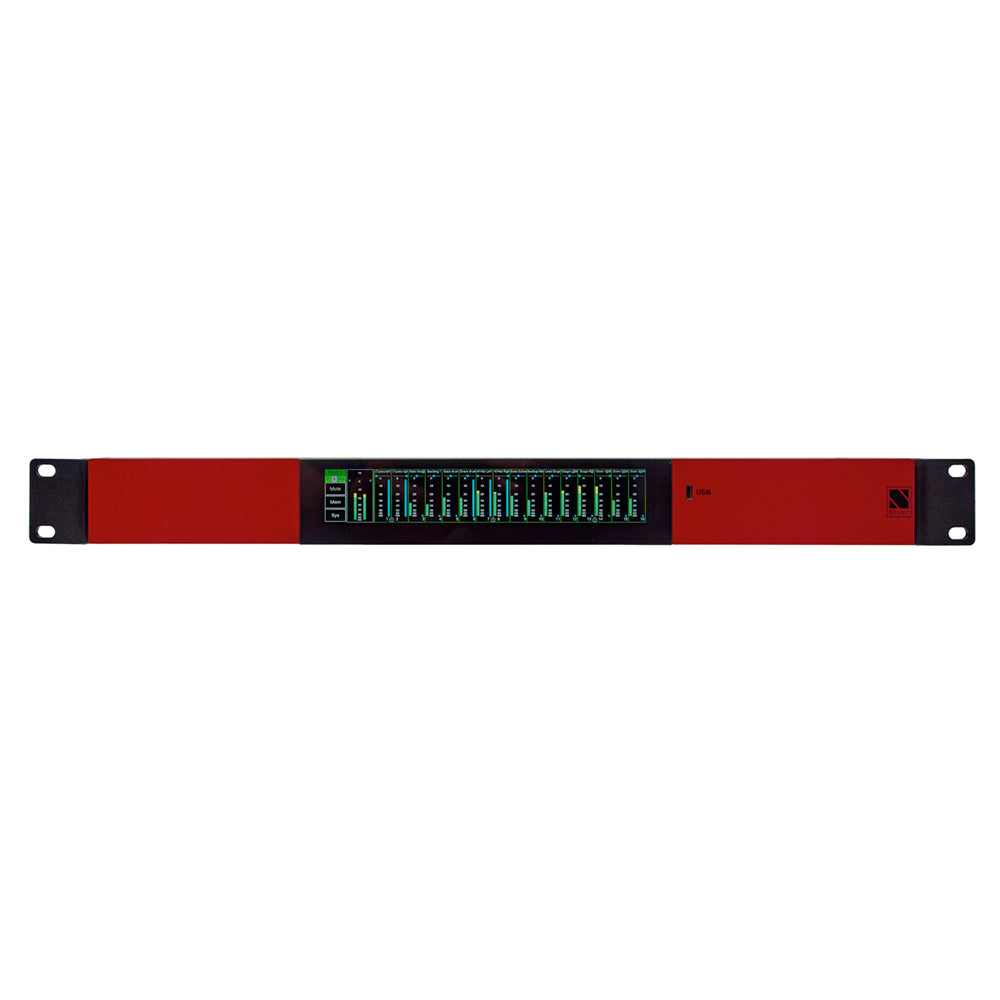

The WL64-4 is operated and controlled via the large letterbox 6.6" diagonal (168mm) 1440 x 240 24-bit colour LCD and capacitive touch panel.
Features:
- Compact 1RU 120mm deep design for portable and fly-away broadcast applications
- Rapid bootup for fast deployment
- 64 AoiP input channels
- Audio Monitoring of 4 independent stereo mixes of these 64 channels
- Listen via up to 4 separate iPads via Wi-Fi using the Nixer iPad app
- Each mix can be routed back onto the AoIP network
- 3 modes of operation Mix, Listen with auto cancel or Listen Hold
- High resolution screen with clear metering and quick source touch screen navigation
- Available as either Dante or Ravenna at time of purchase
A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the local features of the WL64-4 very quickly.
The high-resolution screen is easy to read presenting comprehensive metering, routing and status information to the user. Firmware updates of the WL64-4 are achieved via a dedicated USB micro AB connector on the front panel.

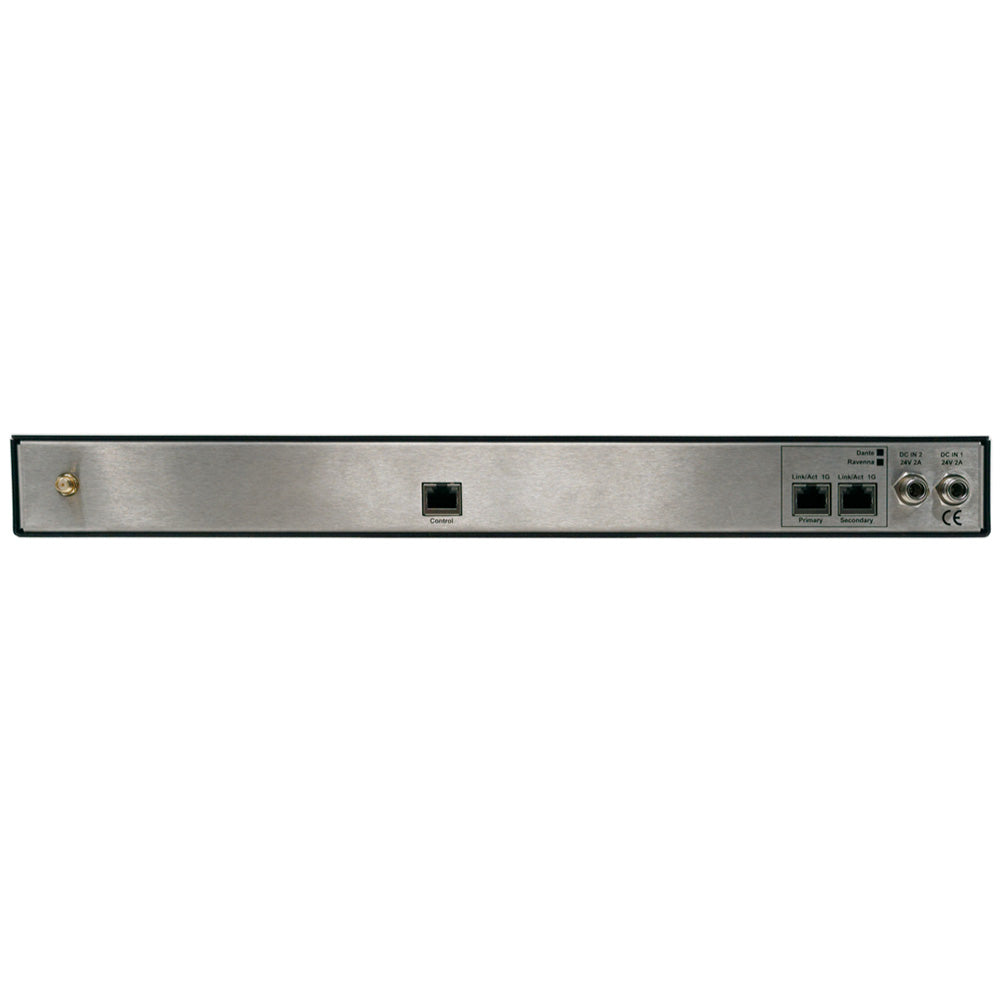

On the rear of the WL64-4 unit there is a Primary and Secondary port for the AoIP input. The Control RJ45 allows the WL64-4 to be set up via its own web page.
The WL64-4 can be powered via either or both of the 2.5mm DC input connectors requiring 12V-24V @ 1.5A. The DC input also have a screw lock to prevent accidental unplugging. Using both inputs provides redundancy. The NIX00629 is required to power the WL64-4 and is purchased separately.
| Functionality | AoIP Audio Monitor |
| Modes | Dedicated Mix or Listen modes Mix mode allows for Panning and Level control Channels can be configured as Mono or Stereo |
| Metering | 64 channel meters (16 displayed at a time) High resolution meters switchable scale standards from EBU or SMPTE Monitor via iPad(s) purchased separately |
| Audio Networking | Dante or Ravenna option - at time of purchase AES67 compatible SMPTE 2110 compatible Fully compatible with New Dante Domain Manager Ð Dante option only |
| Sample rates supported | 44.1kHz 48kHz 88.2kHz 96kHz |
| Bit Depth supported | 16bit 24bit 32bit |
| AoIP inputs | Dual 1Gbps RJ45 1Gbps or 100Mbps operation (Ravenna supports 1Gb only) User configurable for Switched or Redundant operation Network configuration information available via menu |
| Control input | Single RJ45 1Gbs |
| Other Ports | USB port is also used for product firmware updates |
| Power input | 2x 2.5mm DC inputs socket for use with external 24V 2amp adaptor Both power inputs can be active at the same time for redundancy |
| LCD | 6.6Ó (168mm) diagonal 24-bit colour LCD with 1440xRGBx240 resolution LED backlight (adjustable brightness via software) multi touch capacitive touch overlay with gesture support |
| Dimensions | 494mm wide by 120mm deep by 44mm height |
| Weight | 2.0kg |
| Note | 19inch rack mounting ears can be removed for desktop use |
A 1U 19inch rack mounted AoIP monitoring and mixing unit. WL64-4 allows three modes of operation a Mix mode, Listen Mode with Hold and Listen Mode with auto cancel. In each mode 4 independent mixes can be created of up to 64 channels at 48kHz (32 channels at 96kHz)
The Mix/Listen outputs are also routed to the AoIP output.
Each mix is controlled via the Nixer iPad app on up to 4 separate iPads. Each iPad is able to monitor it's own mix via its internal speakers or via headphones connected to the iPad. More iPads can be connected but they have to share mixes and control. Connection of the iPads to the WL64-4 is via Wi-Fi via the WL64-4 access point or via Ethernet and external Wi-Fi access point.
The WL64-4 is operated and controlled via the large letterbox 6.6" diagonal (168mm) 1440 x 240 24-bit colour LCD and capacitive touch panel.
Features:
- Compact 1RU 120mm deep design for portable and fly-away broadcast applications
- Rapid bootup for fast deployment
- 64 AoiP input channels
- Audio Monitoring of 4 independent stereo mixes of these 64 channels
- Listen via up to 4 separate iPads via Wi-Fi using the Nixer iPad app
- Each mix can be routed back onto the AoIP network
- 3 modes of operation Mix, Listen with auto cancel or Listen Hold
- High resolution screen with clear metering and quick source touch screen navigation
- Available as either Dante or Ravenna at time of purchase
A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the local features of the WL64-4 very quickly.
The high-resolution screen is easy to read presenting comprehensive metering, routing and status information to the user. Firmware updates of the WL64-4 are achieved via a dedicated USB micro AB connector on the front panel.
On the rear of the WL64-4 unit there is a Primary and Secondary port for the AoIP input. The Control RJ45 allows the WL64-4 to be set up via its own web page.
The WL64-4 can be powered via either or both of the 2.5mm DC input connectors requiring 12V-24V @ 1.5A. The DC input also have a screw lock to prevent accidental unplugging. Using both inputs provides redundancy. The NIX00629 is required to power the WL64-4 and is purchased separately.
| Functionality | AoIP Audio Monitor |
| Modes | Dedicated Mix or Listen modes Mix mode allows for Panning and Level control Channels can be configured as Mono or Stereo |
| Metering | 64 channel meters (16 displayed at a time) High resolution meters switchable scale standards from EBU or SMPTE Monitor via iPad(s) purchased separately |
| Audio Networking | Dante or Ravenna option - at time of purchase AES67 compatible SMPTE 2110 compatible Fully compatible with New Dante Domain Manager Ð Dante option only |
| Sample rates supported | 44.1kHz 48kHz 88.2kHz 96kHz |
| Bit Depth supported | 16bit 24bit 32bit |
| AoIP inputs | Dual 1Gbps RJ45 1Gbps or 100Mbps operation (Ravenna supports 1Gb only) User configurable for Switched or Redundant operation Network configuration information available via menu |
| Control input | Single RJ45 1Gbs |
| Other Ports | USB port is also used for product firmware updates |
| Power input | 2x 2.5mm DC inputs socket for use with external 24V 2amp adaptor Both power inputs can be active at the same time for redundancy |
| LCD | 6.6Ó (168mm) diagonal 24-bit colour LCD with 1440xRGBx240 resolution LED backlight (adjustable brightness via software) multi touch capacitive touch overlay with gesture support |
| Dimensions | 494mm wide by 120mm deep by 44mm height |
| Weight | 2.0kg |
| Note | 19inch rack mounting ears can be removed for desktop use |
