Description

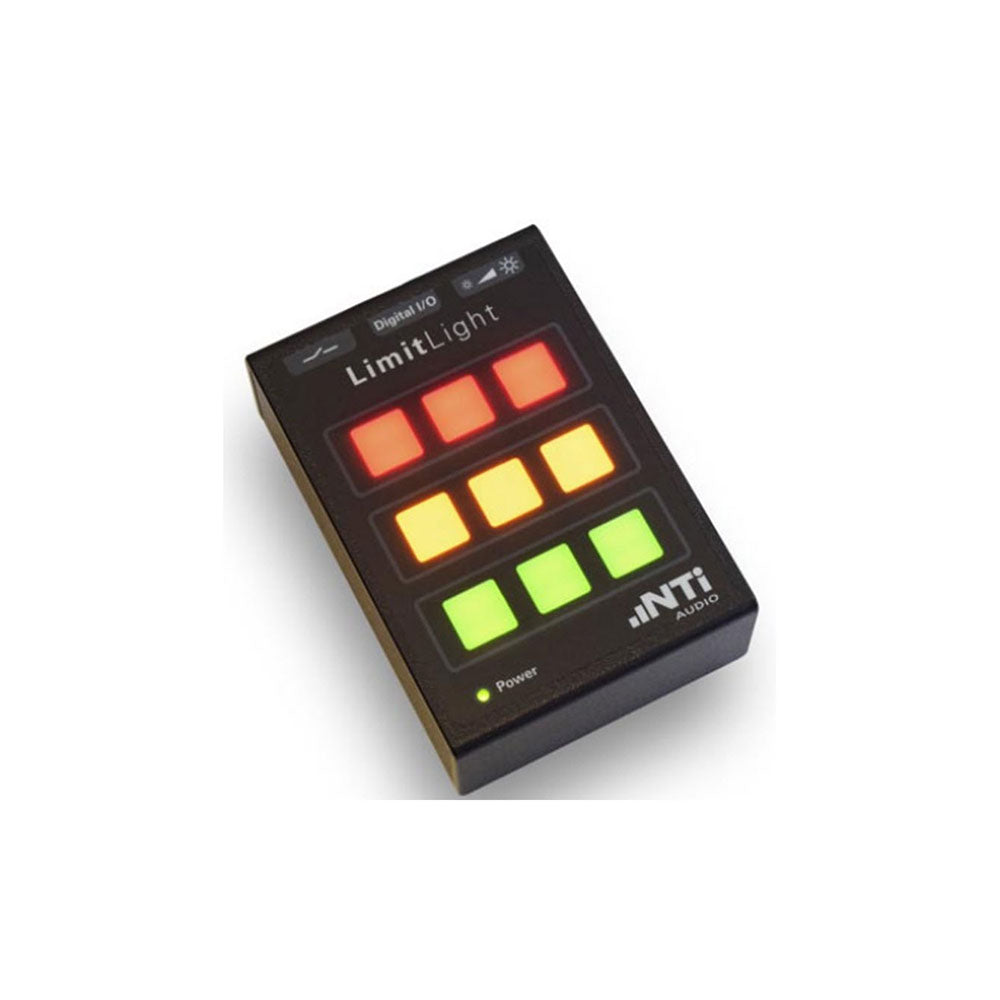

The XL2 Audio and Acoustic Analyzer in combination with this Limit Light offers a turnkey solution for live sound monitoring. The sound level limits are set in the XL2. The Limit Light provides a pre-warning with an orange light and indicates that levels have been exceeded with a red light. The Limit Light connects directly to the XL2 Analyzer. It represents the actually measured levels on a color display for simple confirmation that the sound level monitored is within the limits. This provides the front-of-house engineer with a personal eye-catching level indication. The light indication is dimmable for applications in dark environments.
The Limit Light offers an input for a standard foot switch, which sets event markers during ongoing sound level measurements or starts a passed/failed measurement in quality control applications. A professional audio cable extension can be used to place the XL2 at a remote location away from the Limit Light.
Features:
- Level indicated with three colors; green, orange and red
- Customized color limits set in handheld XL2 Analyzer
- Dimmable low-profile light indication
Applications:
- Live sound monitoring
- Industrial noise pollution monitoring
- Passed / Failed measurements in manufacturing quality control (requires XL2 Spectral Limits Option)
Inputs | ¥ XLR 3-pole for - power supply - XL2 digital I/O signal ¥ 6.3 mm jack plug for standard foot switch connection |
Visual Indications | ¥ Dimmable level light indication in green, orange and red (limit setting in XL2) ¥ Power Indication LED |
Cable Adapter (included) |
¥ Adapter length = 20 cm ¥ Assignment: 1 - Ground 2 - Power Supply 3 - Digital I/O |
Power Supply | The default XL2 Power Adapter powers the XL2 and the Stack Light at the same time |
Tripod Mount | 1/4Ó Tripod mount in bottom plate |
Scope of Supply | ¥ XL2 Limit Light ¥ Cable Adapter |
Extension Cable (not included) |
¥ Cable adapter can be extended with standard XLR cable ¥ Maximum cable length typically 40 m |
Cascading | Up to 10 I/O Devices can be cascaded @ one single XL2 (cabling not included) |
Dimensions (L x W x H) | 110 x 75 x 40 mm |
Weight | 160 g, 0.35 lb |
Temperature | Ð10 ¡C to +50 ¡C (14¡ to 122 ¡F) |
Humidity | < 90% RH (non-condensing at 50 ¡C, 122 ¡F) |
Standards | CE compliant: EN 61326-1 Class B, EN 55011 class B, EN 61000-4-2 to -6 and -11, Safety EN 60 065, EN 61 010-1:2001, class II |
Protection Rating | IP51 |
The XL2 Audio and Acoustic Analyzer in combination with this Limit Light offers a turnkey solution for live sound monitoring. The sound level limits are set in the XL2. The Limit Light provides a pre-warning with an orange light and indicates that levels have been exceeded with a red light. The Limit Light connects directly to the XL2 Analyzer. It represents the actually measured levels on a color display for simple confirmation that the sound level monitored is within the limits. This provides the front-of-house engineer with a personal eye-catching level indication. The light indication is dimmable for applications in dark environments.
The Limit Light offers an input for a standard foot switch, which sets event markers during ongoing sound level measurements or starts a passed/failed measurement in quality control applications. A professional audio cable extension can be used to place the XL2 at a remote location away from the Limit Light.
Features:
- Level indicated with three colors; green, orange and red
- Customized color limits set in handheld XL2 Analyzer
- Dimmable low-profile light indication
Applications:
- Live sound monitoring
- Industrial noise pollution monitoring
- Passed / Failed measurements in manufacturing quality control (requires XL2 Spectral Limits Option)
Inputs | ¥ XLR 3-pole for - power supply - XL2 digital I/O signal ¥ 6.3 mm jack plug for standard foot switch connection |
Visual Indications | ¥ Dimmable level light indication in green, orange and red (limit setting in XL2) ¥ Power Indication LED |
Cable Adapter (included) |
¥ Adapter length = 20 cm ¥ Assignment: 1 - Ground 2 - Power Supply 3 - Digital I/O |
Power Supply | The default XL2 Power Adapter powers the XL2 and the Stack Light at the same time |
Tripod Mount | 1/4Ó Tripod mount in bottom plate |
Scope of Supply | ¥ XL2 Limit Light ¥ Cable Adapter |
Extension Cable (not included) |
¥ Cable adapter can be extended with standard XLR cable ¥ Maximum cable length typically 40 m |
Cascading | Up to 10 I/O Devices can be cascaded @ one single XL2 (cabling not included) |
Dimensions (L x W x H) | 110 x 75 x 40 mm |
Weight | 160 g, 0.35 lb |
Temperature | Ð10 ¡C to +50 ¡C (14¡ to 122 ¡F) |
Humidity | < 90% RH (non-condensing at 50 ¡C, 122 ¡F) |
Standards | CE compliant: EN 61326-1 Class B, EN 55011 class B, EN 61000-4-2 to -6 and -11, Safety EN 60 065, EN 61 010-1:2001, class II |
Protection Rating | IP51 |
