Description

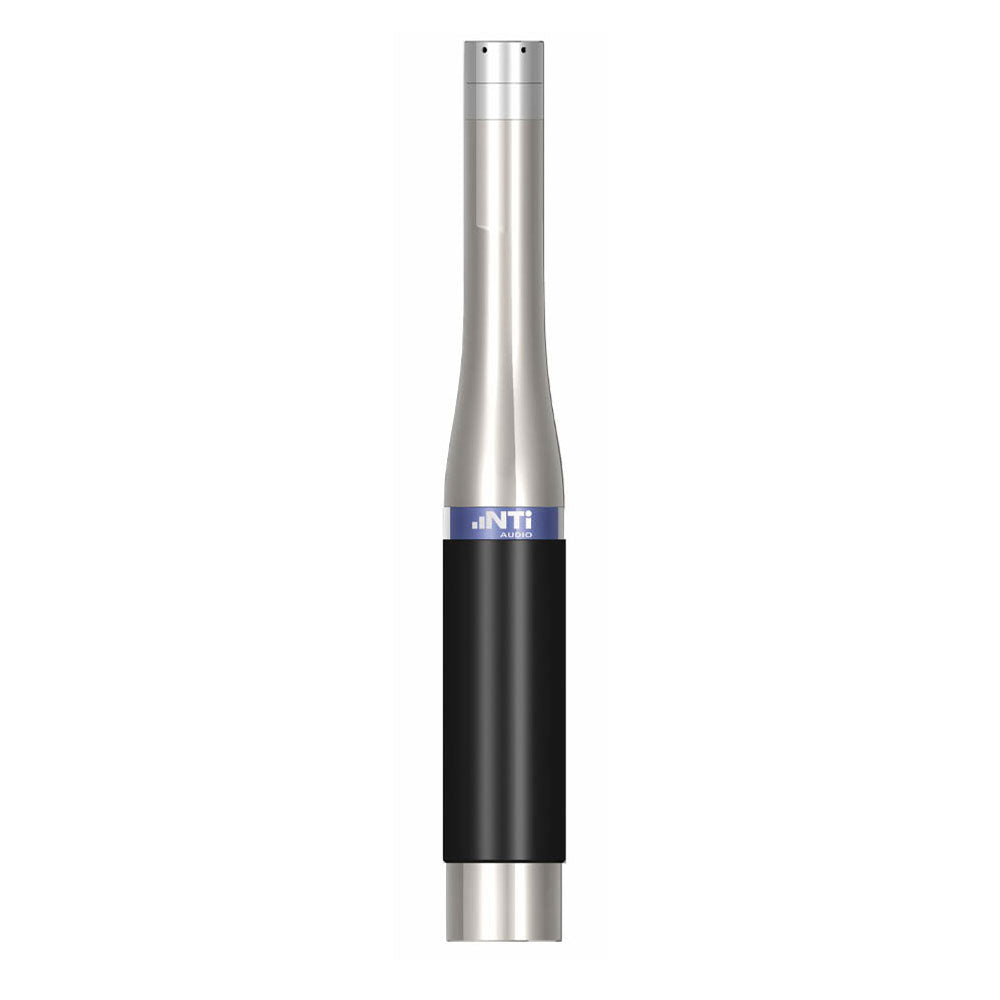

M2211 is a calibrated, 1/2" omni-directional measurement microphone with class 1 frequency response. It runs from 48V Phantom power and contains an electronic data sheet. It shows excellent linearity over a wide dynamic range from 21 dBSPL up to 144 dBSPL.
The measurement microphones are optimized for a flat, free-field response in the frequency range 5 Hz - 20 kHz. Models for acoustic measurements of up to 155 dB are available.
All microphones are omni-directional and 48V phantom powered. The XL2 Analyzer microphones include an electronic data sheet. The Automated Sensor Detection (ASD) of the XL2 automatically reads this data sheet, and recognizes the microphone model, sensitivity and calibration data. This ensures accurate measurement results.
The microphone bodies contain the preamplifier. They combine high dynamic range and wide frequency range with low noise. These measurement microphones connect via the ASD Cable to the XL2 Audio and Acoustic Analyzer, e.g. for measurements at remote locations or to reduce acoustic reflections.
Features:
- Omni-directional, free-field microphone
- Phantom power 48 VDC
- Electronic data sheet installed
- Frequency range 5 Hz - 20 kHz
- Individual frequency response available as Excel-data
- Optional calibration certificate
- M2230, M2211, M2215 are formed by a combination of preamplifier MA220 and a dedicated microphone capsule
Applications:
- Noise Measurements
- Cinema Calibration
- PA Rental
Consisting Of | PreAmplfier MA220 + M2211 Capsule |
Microphone Type | Omnidirectional, pre-polarized condenser, free field microphone |
Classification according IEC 61672 and ANSI S1.4 | Frequency Response Class 1 |
Capsule / Transducer | 1/2” detachable with 60UNS2 thread, type WS2F according IEC 61094-4 |
PreAmplifier Type | MA220 |
Flatness tolerance bands typical | ±1 dB @ 5 Hz - 20 Hz ±1 dB @>20 Hz - 4 kHz ±1.5 dB @>4 kHz - 10 kHz ±2 dB @>10 kHz - 16 kHz ±3 dB @>16 kHz - 20 kHz |
Actual Frequency Response | freely available as Excel-data, register microphone at My NTi Audio and contact info@nti-audio.com |
Frequency Range | 5 Hz - 20 kHz |
Residual Noise Floor typical | 21 dB(A) |
Maximum SPL @ THD 3%, 1 kHz | 144 dBSPL |
Sensitivity typical @ 1 kHz | -34 dBV/Pa ±3 dB (20 mV/Pa) |
Temperature Coefficient | < ±0.015 dB / ¡C |
Temperature Range | -10¡C to +50¡C (14¡F to 122¡F) |
Pressure Coefficient | -0.02 dB / kPa |
Influence of Humidity (non-condensing) | < ±0.05 dB |
Humidity | 5% to 90% RH, non-condensing |
Long Term Stability | > 250 years / dB |
Power Supply | 48 VDC phantom power |
Current Consumption | 2.3 mA typical |
Electronic Data Sheet | NTi Audio ASD in accordance with IEEE P1451.4 V1.0, Class 2, Template 27 |
Output Impedance | 100 Ohm balanced |
Connector | Balanced 3-pole XLR |
Diameter Dimensions | 20.5 mm (0.8”) |
Length Dimensions | 150 mm (5.9”) |
Weight | 100 g, 3.53 oz |
Environmental Protection | IP51 |
NTi Audio # | 600 040 022 |
