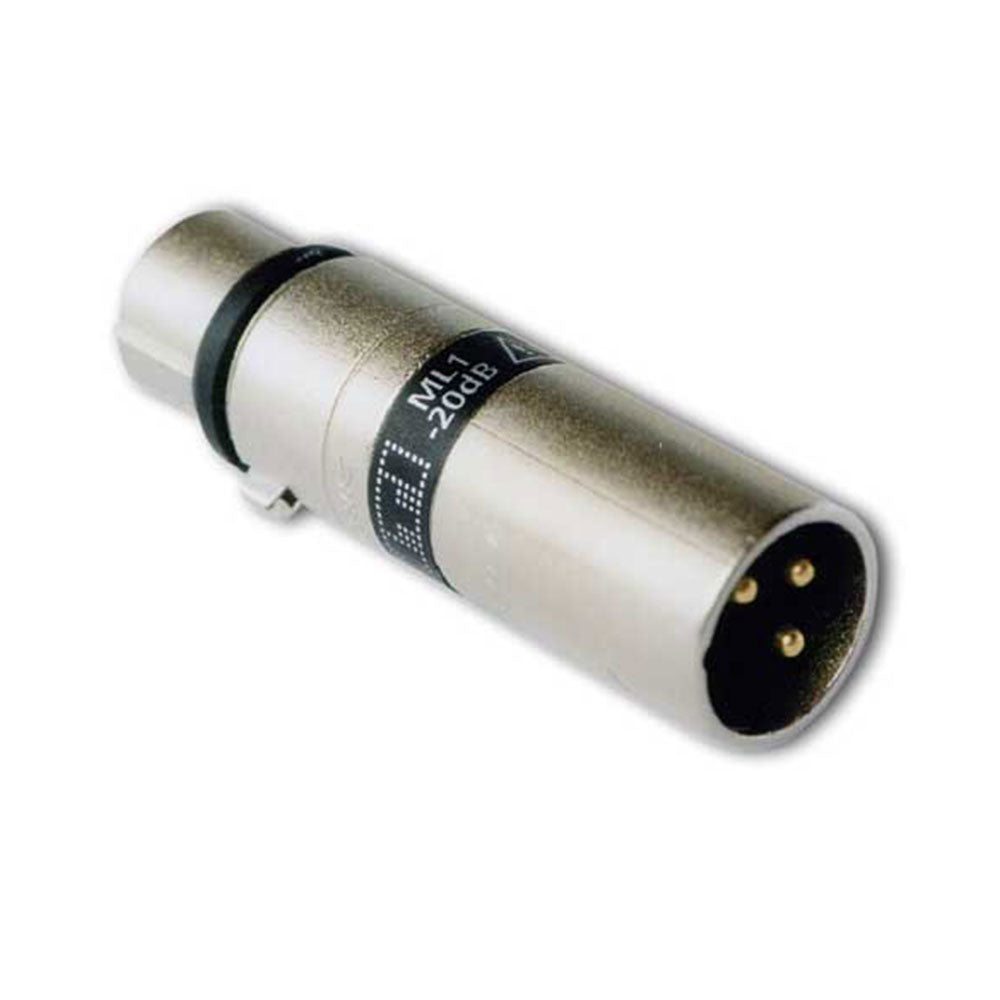

NTi Audio ML1/AL1 -20dB Inline XLR Pad
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ML1 Adaptor -20dB extends the XLR input of the ML1 up to + 40dBu Use the adapter only in conjunction with the ML1.
The impedances of the adaptor are matched for this use only! For safety reasons the adaptor includes a pin 1 - fuse.
| Attenuation | 20 dB |
| Initial Accuracy | +/- 0.05dB ( aging <0.02dB@1000h full load) |
| Fuse Protection | <60Vpp at pin 1 |
| Input Impedance | Bal.:40K Ohm Unbal.: 20K Ohm |
| Balance Mismatch | <0.2% |
| Max Input Voltage | Bal.: +40dBu 77.5Vrms 218Vpp |
| Max Input Voltage | Unbal.: +34dBu 38.9Vrms 108Vpp |
