Description

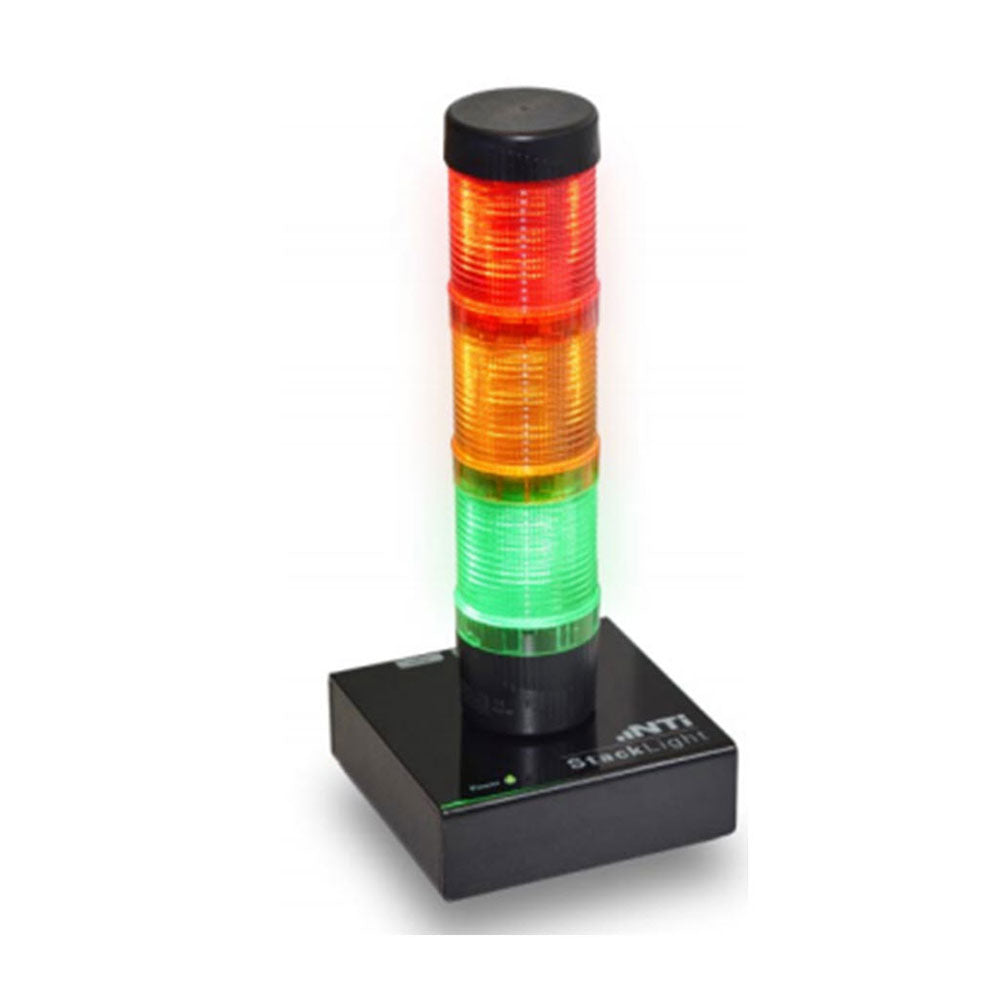

The XL2 Audio and Acoustic Analyzer in combination with this Stack Light provides a turnkey solution for noise level monitoring or quality control applications where a prominent visual indication is required. The Stack Light connects directly to the XL2 Analyzer and shows the actual measurement result with three different colors; green, orange and red.
Noise Monitoring
The sound level limits are set in the XL2. The Stack Light shows that all levels are below these permissible limits with a prominent green light indication. Pre-warnings are provided by an orange light while the red light illuminates when the limit is exceeded.
Quality Control
The passed/failed measurement is started with a standard foot switch, which connects to the Stack Light. An audio cable extension can be used to place the XL2 at a remote location away from the Stack Light.
Features:
- Level indicated with three colors; green, orange and red
- Customized color limits set in handheld XL2 Analyzer
- Prominent 360° light
- Direct input for standard foot switch to start measurements
Applications:
- Noise level monitoring
- Passed / Failed measurements in manufacturing quality control (requires XL2 Spectral Limits Option)
Input | ¥ XLR 3-pole for - power supply - XL2 digital I/O signal ¥ 6.3 mm jack plug for standard foot switch connection |
Visual Indications | ¥ Level light indication in green, orange and red (limit setting in XL2) ¥ Power Indication LED |
Cable Adapter | ¥ Adapter length = 20 cm ¥ Assignment: 1 - Ground 2 - Power Supply 3 - Digital I/O |
Power Supply | The default XL2 Power Adapter powers the XL2 and the Stack Light at the same time |
Scope of Supply | ¥ Stack Light ¥ Cable Adapter |
Extension Cable (not included) |
¥ Cable adapter can be extended with standard XLR cable ¥ Maximum cable length typically 40 m |
Cascading | Up to 10 I/O Devices can be cascaded @ one single XL2 (cabling not included) |
Dimensions (L x W x H) | 120 x 120 x 260 mm |
Weight | 360 g, 0.8 lb |
Temperature | -10 ¡C to +50 ¡C (14¡ to 122 ¡F) |
Humidity | < 90% RH (non-condensing at 50 ¡C, 122 ¡F) |
Standards | CE compliant: EN 61326-1 Class B, EN 55011 class B, EN 61000-4-2 to -6 and -11 |
Safety | EN 60 065, EN 61 010-1:2001, class II |
Protection Rating | IP51 |
NTi Audio # | 600 000 610 |
The XL2 Audio and Acoustic Analyzer in combination with this Stack Light provides a turnkey solution for noise level monitoring or quality control applications where a prominent visual indication is required. The Stack Light connects directly to the XL2 Analyzer and shows the actual measurement result with three different colors; green, orange and red.
Noise Monitoring
The sound level limits are set in the XL2. The Stack Light shows that all levels are below these permissible limits with a prominent green light indication. Pre-warnings are provided by an orange light while the red light illuminates when the limit is exceeded.
Quality Control
The passed/failed measurement is started with a standard foot switch, which connects to the Stack Light. An audio cable extension can be used to place the XL2 at a remote location away from the Stack Light.
Features:
- Level indicated with three colors; green, orange and red
- Customized color limits set in handheld XL2 Analyzer
- Prominent 360° light
- Direct input for standard foot switch to start measurements
Applications:
- Noise level monitoring
- Passed / Failed measurements in manufacturing quality control (requires XL2 Spectral Limits Option)
Input | ¥ XLR 3-pole for - power supply - XL2 digital I/O signal ¥ 6.3 mm jack plug for standard foot switch connection |
Visual Indications | ¥ Level light indication in green, orange and red (limit setting in XL2) ¥ Power Indication LED |
Cable Adapter | ¥ Adapter length = 20 cm ¥ Assignment: 1 - Ground 2 - Power Supply 3 - Digital I/O |
Power Supply | The default XL2 Power Adapter powers the XL2 and the Stack Light at the same time |
Scope of Supply | ¥ Stack Light ¥ Cable Adapter |
Extension Cable (not included) |
¥ Cable adapter can be extended with standard XLR cable ¥ Maximum cable length typically 40 m |
Cascading | Up to 10 I/O Devices can be cascaded @ one single XL2 (cabling not included) |
Dimensions (L x W x H) | 120 x 120 x 260 mm |
Weight | 360 g, 0.8 lb |
Temperature | -10 ¡C to +50 ¡C (14¡ to 122 ¡F) |
Humidity | < 90% RH (non-condensing at 50 ¡C, 122 ¡F) |
Standards | CE compliant: EN 61326-1 Class B, EN 55011 class B, EN 61000-4-2 to -6 and -11 |
Safety | EN 60 065, EN 61 010-1:2001, class II |
Protection Rating | IP51 |
NTi Audio # | 600 000 610 |
