DALE SKU # NTI-600000085

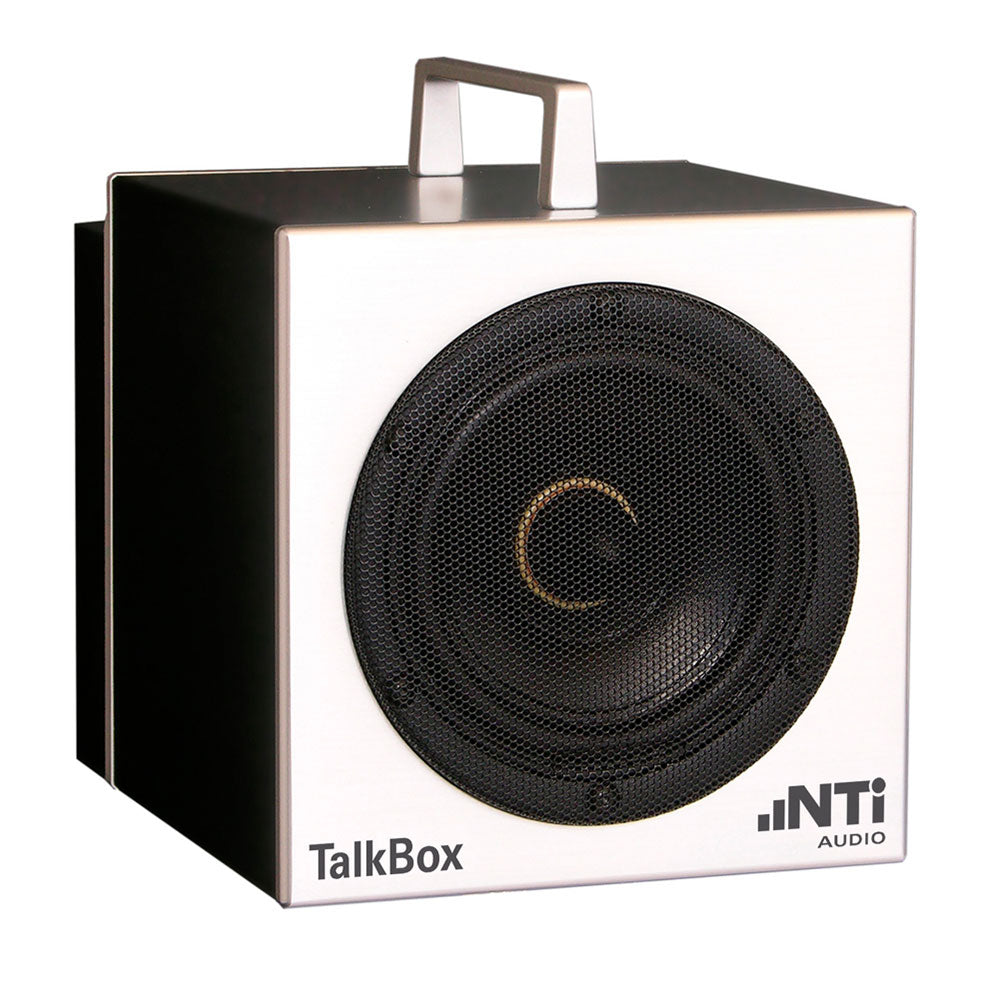

NTi Audio TalkBox - Audio Signal Generator

Sale price$2,404.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The TalkBox is an acoustic signal generator for speech intelligibility measurements in evacuation and announcement systems, as well as for level alignment of teleconference or other audio systems. It allows performing the complete end-to-end evaluation of the speech intelligibility STIPA from the talker's microphone to the listener's ears.

    The TalkBox simulates a human talker (60 dBA @ 1 meter according to IEC 60268-16) with the STIPA test signal and spoken messages. Further it provides a wide range of test signals like sine, pink noise, white noise and delay.

    The TalkBox features human head-like dimensions and is based on a solid-state-generator. It replays the STIPA test signal at the precisely equalized frequency response, also ensuring best performance through the internal amplifier and the precision loudspeaker. A variety of supplied or user-defined test signals may be precisely output for different alignment applications.

    Waveforms
    ¥Up to 15 different signals
    ¥Waveforms can be added / changed by the user
    ¥Factory signal set:
    NTi Audio STI-PA test signal, White Noise, Pink Noise, Delay Time Measurement Test Chirp, Sine 1 kHz
    Line Out
    ¥XLR, balanced 100 Ohm, unbalanced 50 Ohm
    ¥Maximum output level: +18 dBu,
    1 kHz file with 60 dB @ 1 meter: typicaly -11 dBu
    Line Input
    ¥XLR, balancedÊ38 kOhm
    ¥Maximum input level: +18 dBu
    ¥Internal delay from XLR input to speaker: 59 ms
    CF-Card
    ¥256ÊMB included, FAT32 formatted
    ¥Wave File format: 16 Bit, 44.1 kHz mono
    Acoustical FlatnessSTI-PA band levels (in axis):
    ¥typ. < +/- 0.5 dB @ 24¡C
    ¥typ. < +/- 1.0 dB @ 10¡C - 30¡C
    Acoustical Output Level
    ¥STI-PA: 60 dBASPL @ 1 m +/- 0.5 dB, according to IEC60268-16
    ¥STI-PA band sensitivity gradient: - 0.07dB / ¡C (average)
    ¥Others see track list in user manual
    Power Supply
    ¥10 - 18 VDC, 10 Watt
    ¥External switching power supply included
    (for worldwide usage 100VÊ.. 240V)
    External MuteJack 3.5 mm (1/8Ò), floating switch required
    MountingMic Stand 5/8Ó with Adapter to 3/8Ó
    Dimensions (LxWxH)150 x 150 x 175 mm (5.9 x 5.9 x 6.9 inch)
    Weight3.5 kg
    Temperature0¡ to +45¡ C (32¡ to 113¡ F)
    Typical Frequency Response60 dBSPL @ 1 m = 66 dBSPL @ 0.5 m
    AccessoriesMains Power Adapter, 256 MB CF-Card and Bag included

    The TalkBox is an acoustic signal generator for speech intelligibility measurements in evacuation and announcement systems, as well as for level alignment of teleconference or other audio systems. It allows performing the complete end-to-end evaluation of the speech intelligibility STIPA from the talker's microphone to the listener's ears.

    The TalkBox simulates a human talker (60 dBA @ 1 meter according to IEC 60268-16) with the STIPA test signal and spoken messages. Further it provides a wide range of test signals like sine, pink noise, white noise and delay.

    The TalkBox features human head-like dimensions and is based on a solid-state-generator. It replays the STIPA test signal at the precisely equalized frequency response, also ensuring best performance through the internal amplifier and the precision loudspeaker. A variety of supplied or user-defined test signals may be precisely output for different alignment applications.

    Waveforms
    ¥Up to 15 different signals
    ¥Waveforms can be added / changed by the user
    ¥Factory signal set:
    NTi Audio STI-PA test signal, White Noise, Pink Noise, Delay Time Measurement Test Chirp, Sine 1 kHz
    Line Out
    ¥XLR, balanced 100 Ohm, unbalanced 50 Ohm
    ¥Maximum output level: +18 dBu,
    1 kHz file with 60 dB @ 1 meter: typicaly -11 dBu
    Line Input
    ¥XLR, balancedÊ38 kOhm
    ¥Maximum input level: +18 dBu
    ¥Internal delay from XLR input to speaker: 59 ms
    CF-Card
    ¥256ÊMB included, FAT32 formatted
    ¥Wave File format: 16 Bit, 44.1 kHz mono
    Acoustical FlatnessSTI-PA band levels (in axis):
    ¥typ. < +/- 0.5 dB @ 24¡C
    ¥typ. < +/- 1.0 dB @ 10¡C - 30¡C
    Acoustical Output Level
    ¥STI-PA: 60 dBASPL @ 1 m +/- 0.5 dB, according to IEC60268-16
    ¥STI-PA band sensitivity gradient: - 0.07dB / ¡C (average)
    ¥Others see track list in user manual
    Power Supply
    ¥10 - 18 VDC, 10 Watt
    ¥External switching power supply included
    (for worldwide usage 100VÊ.. 240V)
    External MuteJack 3.5 mm (1/8Ò), floating switch required
    MountingMic Stand 5/8Ó with Adapter to 3/8Ó
    Dimensions (LxWxH)150 x 150 x 175 mm (5.9 x 5.9 x 6.9 inch)
    Weight3.5 kg
    Temperature0¡ to +45¡ C (32¡ to 113¡ F)
    Typical Frequency Response60 dBSPL @ 1 m = 66 dBSPL @ 0.5 m
    AccessoriesMains Power Adapter, 256 MB CF-Card and Bag included
