NTP TECHNOLOGY PRO | MON - Monitor Control License Software for AX32 or DX32


  • Dale #:

    NTPT-NTPMONLIC
  • Availability:

    Emailed within 24 Hours
  • Within 24 hours of placing your order we will contact you by email to provide you with the details to download and authorize your software. This is not an immediate process.

Description

The Pro | Mon  Monitor Control option enables the AX32 AD/DA Converter and digital matrix, as well as the DX32 Digital audio interface and matrix, to operate as an audio signal processor providing high resolution signal summing and low latency routing of monitor signals. The monitor control is ma... Read More

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Pro | Mon  Monitor Control option enables the AX32 AD/DA Converter and digital matrix, as well as the DX32 Digital audio interface and matrix, to operate as an audio signal processor providing high resolution signal summing and low latency routing of monitor signals. The monitor control is managed via the DADman 4.2 software application, which has support for the EUCON 3 control protocol, enabling full control of the monitor functionality from the Avid S6 control surface.

Features:

  • Monitor controller with talkback, summing and folddown
  • Control via EUCON 3 from Avid™ S6, S3, MC Pro and 5-MC
  • Built-in matrix for flexible routing and digital insert
  • Configurable for any audio format eg. mono, stereo, 5.1, 7.1, 9.1, and up-to 64 ch. multi channel
  • Pristine A/D and D/A conversion and optional mic pre
  • Digital I/O via MADI, AES3, Dante™ and SDI
  • Direct connection to Pro Tools HD / HDX / HD Native cards
  • Fixed 7 sample latency on all signal paths and 32 bit floating point summing processing


DADman EUCON Control

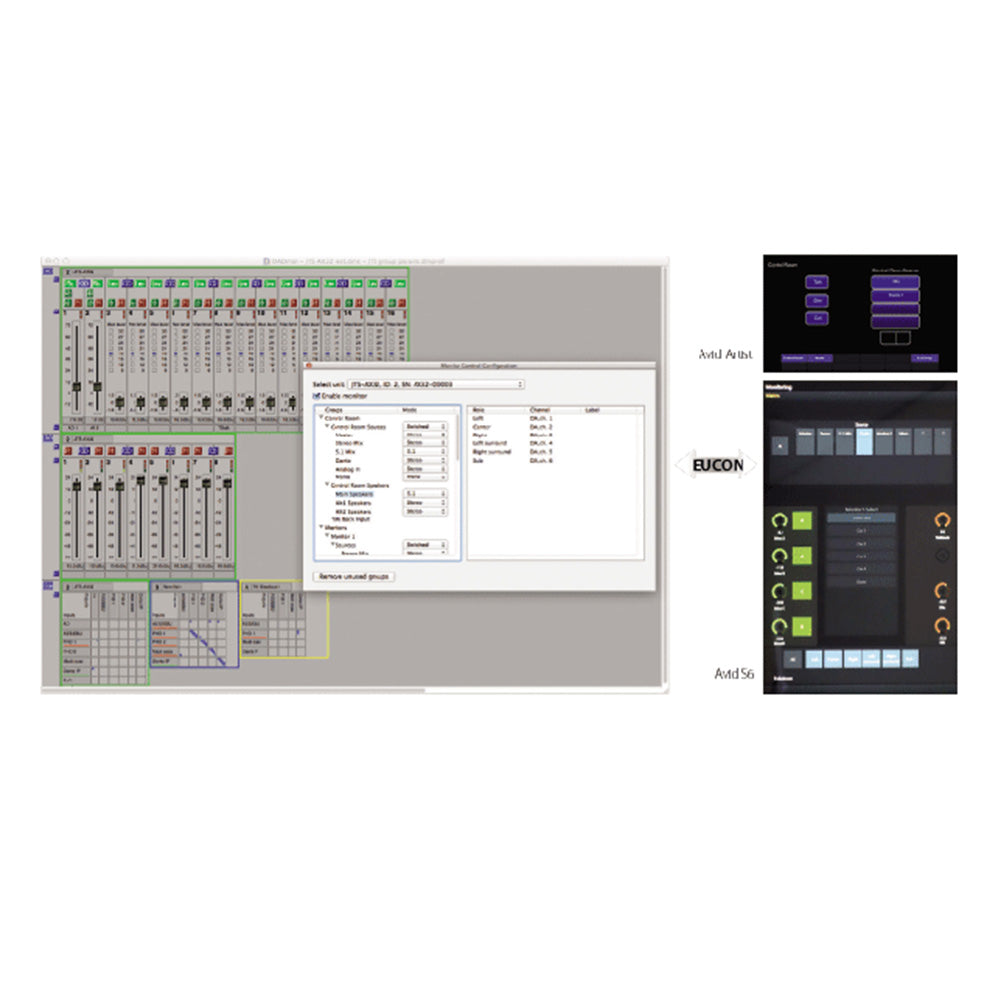

The complete monitor control system consist of an AX32 or DX32 converter interface with a DADman software application running on a Windows or a MAC computer, which is communicating via EUCON on a Gigabit Ethernet enabling the operation of the monitor control from the Avid S6 Control Surface.

Monitor Matrix and Processing
The monitor control is able to set the listening levels, Dim and Cut of a main control room speaker set and two alternate speaker sets. Furthermore, four monitor sets can be controlled with level and cut.

The signal output configuration of each speaker and monitor set can be configured to any format: mono, stereo, 5.1, 7.1, 9.1, and multi channel up to 64 channels, using any of the audio outputs of the NTP/DAD converter interface in any combination.

The sources for monitoring can be selected from any of configured signal sources. Sources can be selected to an monitor output as switched or more sources can be summed to a control room speaker or monitor output providing Stem summing functionality.

As for the outputs source inputs can be configured to any format with any combination of audio inputs of the NTP/DAD converter interface.

Talk back functionality is available for any of the control room speaker and monitor outputs, and the talk back can activate Cut or Dim on any output as well.

On each of the control room speaker and monitor outputs a Folddown function can be applied. The Folddown can comprise of any of the 7 formats: Mono, Stereo, Left-Center-Right, Left-Center-Right-Sub, 5.1, 7.1 and 9.1 surround formats. On both the sources and the speaker and monitor outputs.
