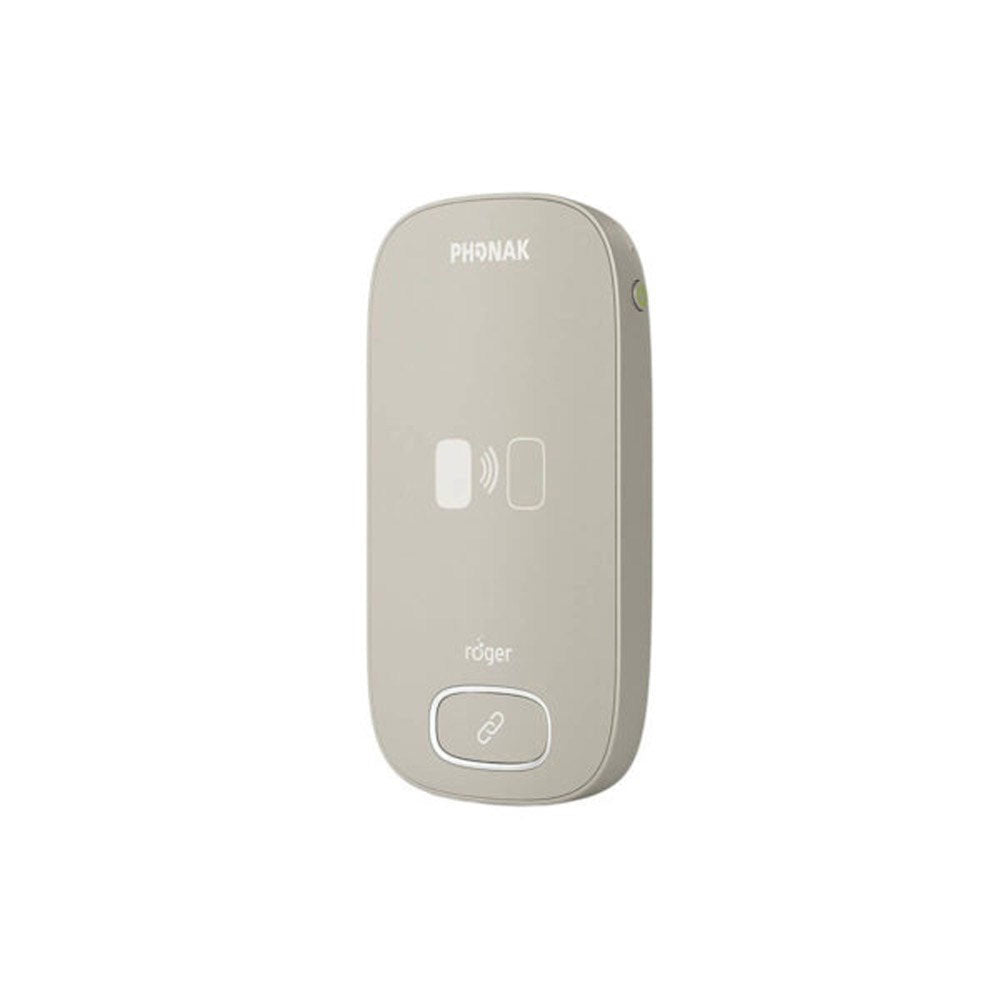

Phonak Roger Repeater - Range Extender for Roger Studio System
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Roger Repeater expands the range of Phonak's Roger Earpiece. The Roger communication system, renowned for being virtually invisible and delivering unrivalled sound quality with plug-and-play setup, now also offers an unlimited range thanks to the Roger Repeater.
Features:
- Unlimited range extension
- Integrated rechargeable battery
- Operates standalone or permanently powered
- Indicator lights
- Fixing bracket and power supply included
- Micro-USB socket
- Easy wall mounting
- ¼-20 tripod mount
- Easy snap-in/out
- Power supply cable retention
The Roger technology uses the latest digital standard and operates on the license-free 2.4 GHz band. The wireless Roger communication system includes a transmitter and features an advanced microphone, which is used by the speaker, and a virtually invisible receiver that is hidden in the listener's comfortable, tiny earpiece. Roger systems are ideal for people working in broadcasting and show business, who rely on seamless communication with directors, producers, and sound technicians. They are utterly discreet, easy to use and install, and offer unrivalled intelligibility.
| Dimensions (L x W x H) | 104 x 55 x 16 mm (4.1Ó x 2.1Ó x 0.6Ó) |
| Weight | 120 g (0.3 lbs) |
| Color | Champagne |
| Operating conditions | 0¡ to + 45¡ Celsius (+32¡ to +113¡ Fahrenheit) and relative humidity of <95% (non condensing) |
| Transport and storage | -20¡ to +60¡ Celsius (-4¡ to conditions +140¡ Fahrenheit) and relative humidity of 90% for a long period |
| Roger information | |
| Power emission | 100 mW |
| Operating range to Roger Earpiece | 15-40m (49-131ft) depending on environment |
| Operating range to Roger Transmitters or Repeaters | 50-70m (164-230ft) depending on environment |
| Operating range for Connect feature | 10 cm (4Ò) |
| Compatible Roger receivers | Roger Earpiece, Roger MyLink |
| Number of Roger receivers in use in a Roger network | Unlimited |
| Compatible Roger transmitters | Roger BaseStation, Roger Touchscreen Mic |
| Number of Roger transmitters in use in a Roger network | Up to 35 Roger Touchscreen Mics and 1 Roger BaseStation per network Secondary transmitters have to be in range of primary transmitter to be repeated. |
| Optional accessories | Power supply adapter UK, AUS |
| Standards applied | Electrical safety IEC/ EN 60950-1 Radiocom 2.4 GHz EN 300 328 EMC EN 301.489-1,-3,-9,-17 SAR (2.4 GHz) EN 62209-2 SAR 1g = 0.10 W/kg SAR 10g = 0.05 W/kg |
| Power and battery information | |
| Battery | Lithium polymer 3.7 V DC |
| Charging time | Approx. 2 hours Charging time depends on battery state |
| Capacity | 1200 mAh |
| Operating time | Approx. 10 hours |
| Charging input | Input: 100 - 240 V |
| Output | 5 VDC/1A |
| Connector | Micro-USB |
| Cable length | 1.3 m (4.2 feet) (charging or connection to computer for upgrade, service) |
| Charging Details | It is not possible to over-charge the battery. It may become warm during charging. Important notice: It is recommended to only use the original Phonak charging unit. |
| Audio information | |
| Audio bandwidth | 100 Hz - 7200 Hz |
| Latency introduced per repeater | 2ms |
The Roger Repeater expands the range of Phonak's Roger Earpiece. The Roger communication system, renowned for being virtually invisible and delivering unrivalled sound quality with plug-and-play setup, now also offers an unlimited range thanks to the Roger Repeater.
Features:
- Unlimited range extension
- Integrated rechargeable battery
- Operates standalone or permanently powered
- Indicator lights
- Fixing bracket and power supply included
- Micro-USB socket
- Easy wall mounting
- ¼-20 tripod mount
- Easy snap-in/out
- Power supply cable retention
The Roger technology uses the latest digital standard and operates on the license-free 2.4 GHz band. The wireless Roger communication system includes a transmitter and features an advanced microphone, which is used by the speaker, and a virtually invisible receiver that is hidden in the listener's comfortable, tiny earpiece. Roger systems are ideal for people working in broadcasting and show business, who rely on seamless communication with directors, producers, and sound technicians. They are utterly discreet, easy to use and install, and offer unrivalled intelligibility.
| Dimensions (L x W x H) | 104 x 55 x 16 mm (4.1Ó x 2.1Ó x 0.6Ó) |
| Weight | 120 g (0.3 lbs) |
| Color | Champagne |
| Operating conditions | 0¡ to + 45¡ Celsius (+32¡ to +113¡ Fahrenheit) and relative humidity of <95% (non condensing) |
| Transport and storage | -20¡ to +60¡ Celsius (-4¡ to conditions +140¡ Fahrenheit) and relative humidity of 90% for a long period |
| Roger information | |
| Power emission | 100 mW |
| Operating range to Roger Earpiece | 15-40m (49-131ft) depending on environment |
| Operating range to Roger Transmitters or Repeaters | 50-70m (164-230ft) depending on environment |
| Operating range for Connect feature | 10 cm (4Ò) |
| Compatible Roger receivers | Roger Earpiece, Roger MyLink |
| Number of Roger receivers in use in a Roger network | Unlimited |
| Compatible Roger transmitters | Roger BaseStation, Roger Touchscreen Mic |
| Number of Roger transmitters in use in a Roger network | Up to 35 Roger Touchscreen Mics and 1 Roger BaseStation per network Secondary transmitters have to be in range of primary transmitter to be repeated. |
| Optional accessories | Power supply adapter UK, AUS |
| Standards applied | Electrical safety IEC/ EN 60950-1 Radiocom 2.4 GHz EN 300 328 EMC EN 301.489-1,-3,-9,-17 SAR (2.4 GHz) EN 62209-2 SAR 1g = 0.10 W/kg SAR 10g = 0.05 W/kg |
| Power and battery information | |
| Battery | Lithium polymer 3.7 V DC |
| Charging time | Approx. 2 hours Charging time depends on battery state |
| Capacity | 1200 mAh |
| Operating time | Approx. 10 hours |
| Charging input | Input: 100 - 240 V |
| Output | 5 VDC/1A |
| Connector | Micro-USB |
| Cable length | 1.3 m (4.2 feet) (charging or connection to computer for upgrade, service) |
| Charging Details | It is not possible to over-charge the battery. It may become warm during charging. Important notice: It is recommended to only use the original Phonak charging unit. |
| Audio information | |
| Audio bandwidth | 100 Hz - 7200 Hz |
| Latency introduced per repeater | 2ms |
