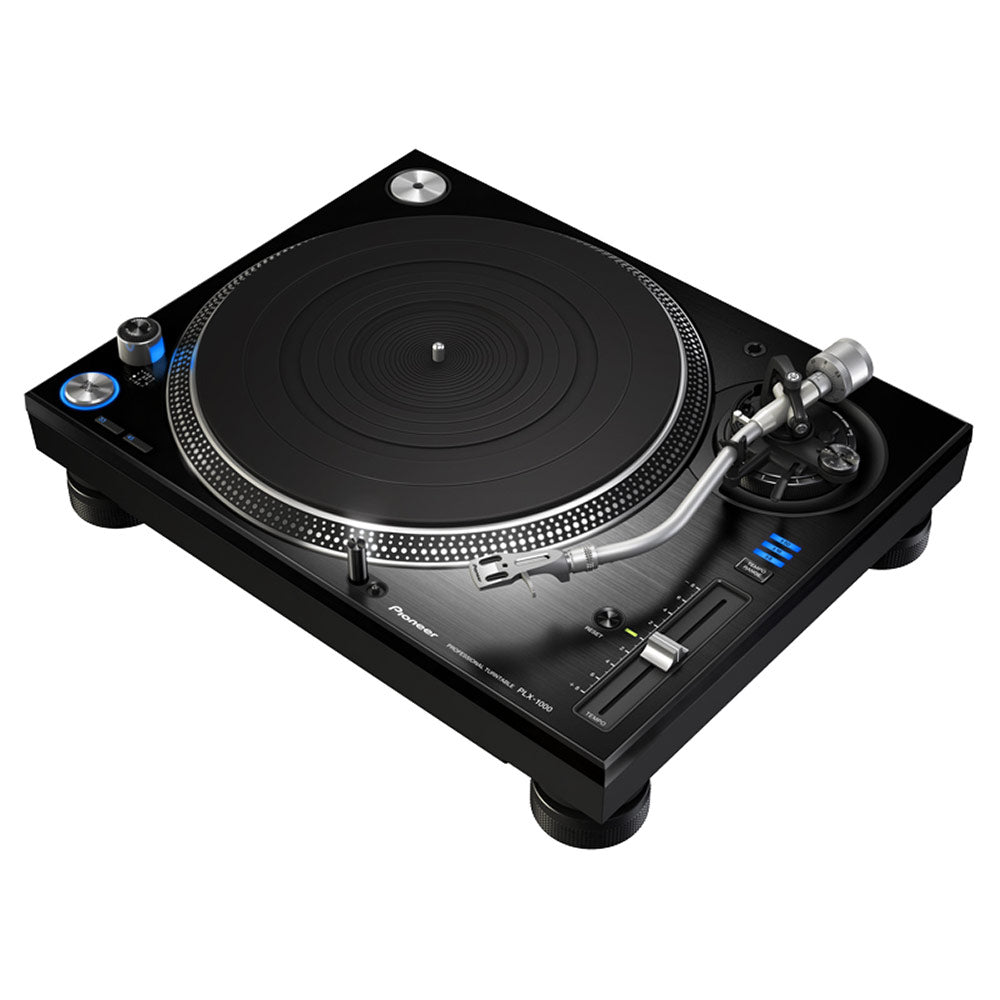

Pioneer DJ PLX-1000 High-Torque Direct Drive Turntable
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Contact us
Description

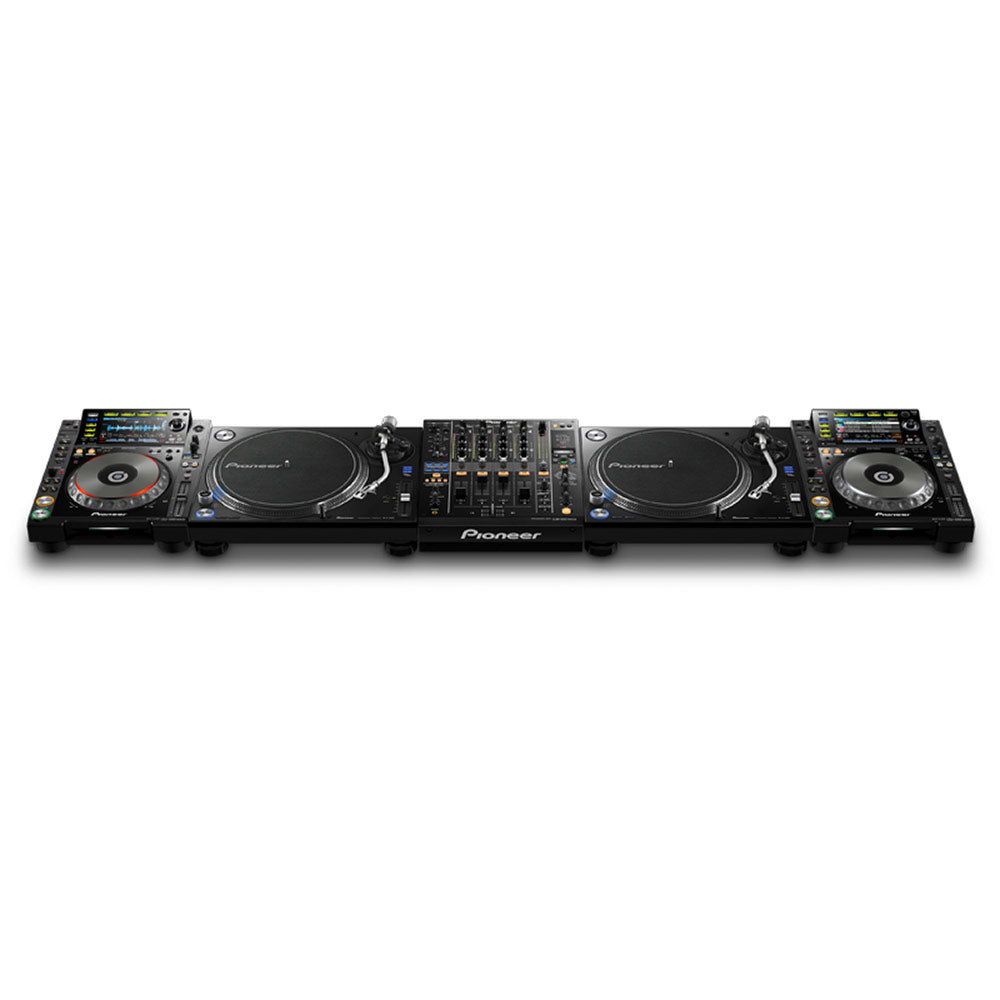

The PLX-1000 is precision engineered for the booth, drawing on 50 years' experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables. It's solidly built for excellent vibration damping and ultra-precise, high-grade audio playback. Combine the PLX-1000 with your DJM mixer for the ideal set-up for turntablists and vinyl enthusiasts.
Features:
TURN THE TABLES
The high-torque direct drive ensures stable rotation and exceptional control - and it reaches 33 1/3 rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).
EXCELLENT SOUND DESIGN
The PLX-1000's heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.
PICK UP THE PACE
Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.
FLEXIBLE CONNECTIVITY

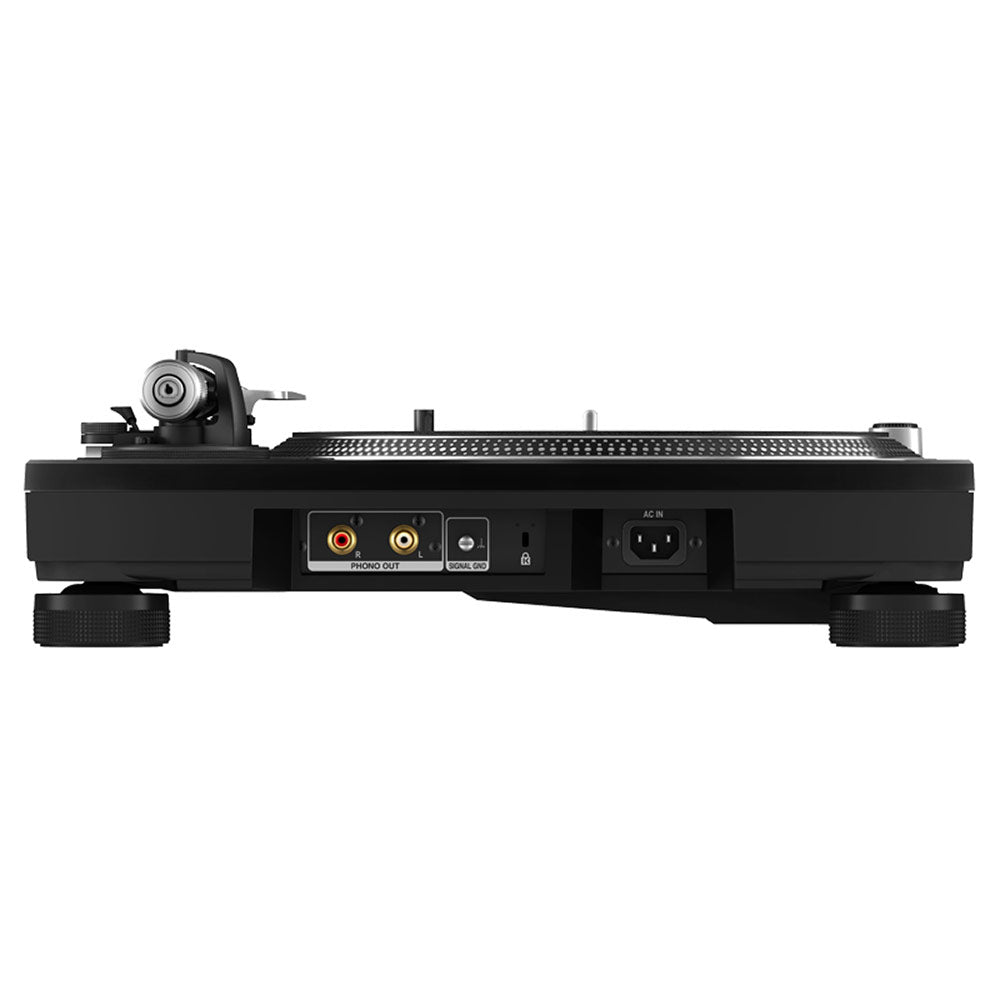

Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.
| Included Accessories | PLX-1000 Power cord Audio cable Ground wire Adapter for EP record Turntable sheet Slip mat and sheet Dust cover Head shell Balance, sub and shell weights Operating instructions |
| Dimensions | Width 17.83 in Height 6.26 in Depth 13.9 in |
| Weight | 28.88 lb |
| Drive Method | Quartz lock, servo-type, direct drive |
| Platter | Aluminium, die-casting diameter: 332 mm |
| Motor | 3-phase, brushless DC motor |
| Braking System | Electronic brake |
| Rotation Speed | 33_-45 rpm |
| Rotation Adjustment Range | ±8, ±16, ±50 % |
| Wow and Flutter | <0.01% (Measured by obtaining signal from built-in frequency generator of motor assembly.) |
| Signal-to-Noise Ratio | 70 dB |
| Starting Torque | > 4.5 kg/cm |
| Start Time | 0.3 sec (at 33_ rpm) |
| Tone Arm Type | Universal type S-shape tone arm Gimbal-supported type bearing structure Static balance type |
| Overhang | 0.59 in |
| Effective Length | 9.06 in |
| Tracking Error | Within 3¡ |
| Height Adjustment Range | 0.24 in |
| Stylus Pressure Variable Range | 0-4 g (1 scale 0.1 g) |
| Cartridge Weight Single | 3.5-13 g |
| Terminals | 1 ANALOGUE (RCA) |
The PLX-1000 is precision engineered for the booth, drawing on 50 years' experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables. It's solidly built for excellent vibration damping and ultra-precise, high-grade audio playback. Combine the PLX-1000 with your DJM mixer for the ideal set-up for turntablists and vinyl enthusiasts.
Features:
TURN THE TABLES
The high-torque direct drive ensures stable rotation and exceptional control - and it reaches 33 1/3 rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).
EXCELLENT SOUND DESIGN
The PLX-1000's heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.
PICK UP THE PACE
Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.
FLEXIBLE CONNECTIVITY
Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.
| Included Accessories | PLX-1000 Power cord Audio cable Ground wire Adapter for EP record Turntable sheet Slip mat and sheet Dust cover Head shell Balance, sub and shell weights Operating instructions |
| Dimensions | Width 17.83 in Height 6.26 in Depth 13.9 in |
| Weight | 28.88 lb |
| Drive Method | Quartz lock, servo-type, direct drive |
| Platter | Aluminium, die-casting diameter: 332 mm |
| Motor | 3-phase, brushless DC motor |
| Braking System | Electronic brake |
| Rotation Speed | 33_-45 rpm |
| Rotation Adjustment Range | ±8, ±16, ±50 % |
| Wow and Flutter | <0.01% (Measured by obtaining signal from built-in frequency generator of motor assembly.) |
| Signal-to-Noise Ratio | 70 dB |
| Starting Torque | > 4.5 kg/cm |
| Start Time | 0.3 sec (at 33_ rpm) |
| Tone Arm Type | Universal type S-shape tone arm Gimbal-supported type bearing structure Static balance type |
| Overhang | 0.59 in |
| Effective Length | 9.06 in |
| Tracking Error | Within 3¡ |
| Height Adjustment Range | 0.24 in |
| Stylus Pressure Variable Range | 0-4 g (1 scale 0.1 g) |
| Cartridge Weight Single | 3.5-13 g |
| Terminals | 1 ANALOGUE (RCA) |
