Pliant Technologies CB2-2400 - 2-Channel 2.4GHz Base Station for CrewCom CB2


  • Dale #:

    PLIA-CB22400
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The CrewCom CB2 provides an excellent out-of-the box experience for users with its simplicity and ease-of-use. It is well-suited for smaller applications/installations and can be easily set up by less experienced users. The CrewCom CB2 boasts many of the exceptional CrewCom product features such ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The CrewCom CB2 provides an excellent out-of-the box experience for users with its simplicity and ease-of-use. It is well-suited for smaller applications/installations and can be easily set up by less experienced users. The CrewCom CB2 boasts many of the exceptional CrewCom product features such as sound quality and range yet provides exceptional wireless intercom at a lower price point.

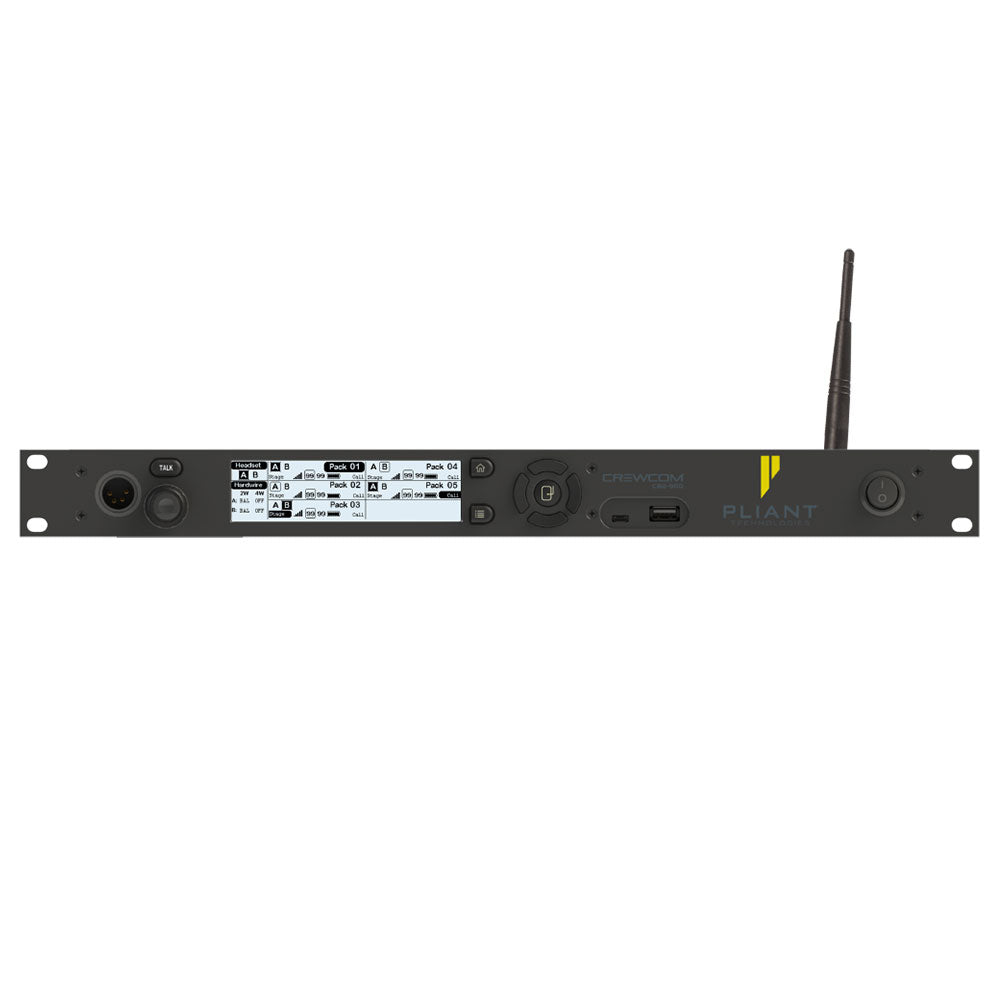

The CrewCom CB2 2400 1RU BaseStation features 2-channels, a 2.4GHz internal radio, and supports up to six CRP-12-2400 Radio Packs. The system also provides external connectivity via two 2-Wire or two 4-Wire ports. A maximum of two CB2 BaseStations can be linked together. (Note: The CB2 BaseStation is ONLY compatible with the CRP-12-2400 Radio Pack, is NOT compatible with any CrewCom CRP-22 or CRP-44 Radio Packs.

Features:

  • 1RU 2.4GHz BaseStation
  • Each CB2-2400 supports up to six CRP-12-2400's in Normal mode
  • Easy-to-use interface with large informative backlit display and clearly laid out quick access controls
  • Supports external 2-Wire and 4-Wire intercom connections.
  • Front panel USB ports for Radio Pack pairing and CrewCom device firmware updates via computer
  • Front panel headset monitor station
  • Stage announce audio output
  • GPO Contact closure relays (x 3)
  • Sync input to receive sync from another CB2 or CrewCom system

More +

Product Specs

RF Frequency 2400–2483 MHz
RF Scheme FHSS with TDMA
Effective Radiated Power 100 mW (+20 dBm)
Radio Certification FCCID: HSW-CCT24 and IC: 4492A-CCT24
Transmission Range 150 m (approx. 500 ft.) under typical conditions; 450 m (approx. 1500 ft.) line of sight.
Note: Functional range depends on many variables, including RF signal absorption, reflection, and external interference.
Hardwired Intercom Audio Channels 2
No. of Active Radio Packs Supported 6
No. of Paired Radio Packs Supported (per CB2) 6
USB Ports (1) USB Type A; (1) Micro USB
Front Panel LCD Display 512 × 128 resolution
Stage Announce and Relay 1 Relay via Phoenix Conn
Sync Port (supports one connection) (1) RJ-45 for copper
2-Wire Intercom Connection 2 Channels via XLR 3F with XLR 3M loop (2 ports)
2-Wire Compatibility Clear-Com, RTS, and AudioCom (Balanced)
4-Wire Intercom Connection 2 Channels via RJ-45
Stage Announce Output XLR 3M, balanced, transformer isolated
Aux In 6.35 mm (1/4 in.) 3 conductor jack, 17.5 dBu max in
(nominal line level +5 dBu), balanced, transformer isolated
Aux Out 6.35 mm (1/4 in.) 3 conductor jack, 17.2 dBu into 600 ohms
(nominal line level +5 dBu), balanced, transformer isolated
Power Input/Connector 2.5 × 5.5 × 8 mm, 14 VDC, 1.2 A
Dimensions (L × W × H) 1 RU, 48.26 × 4.39 × 29.67 cm (19.00 × 1.73 × 11.68 in.) metal enclosure
Weight 2.7 kg (5.9 lb)
Operating Environment -20° to 50° C (-4° to 122° F); 10% to 90% Humidity
Maximum Sync Line Length CAT 5e (or greater) 100 m (330 ft.)
Maximum Altitude 2,000 m (6,562 ft.)
RoHS Compliant Yes
Compliance Model Number B22545
Number of Antenna Connections per CB2 1
Antenna Connector Type RP-TNC
Supplied Antenna +2 dBi Omni-directional (whip)
