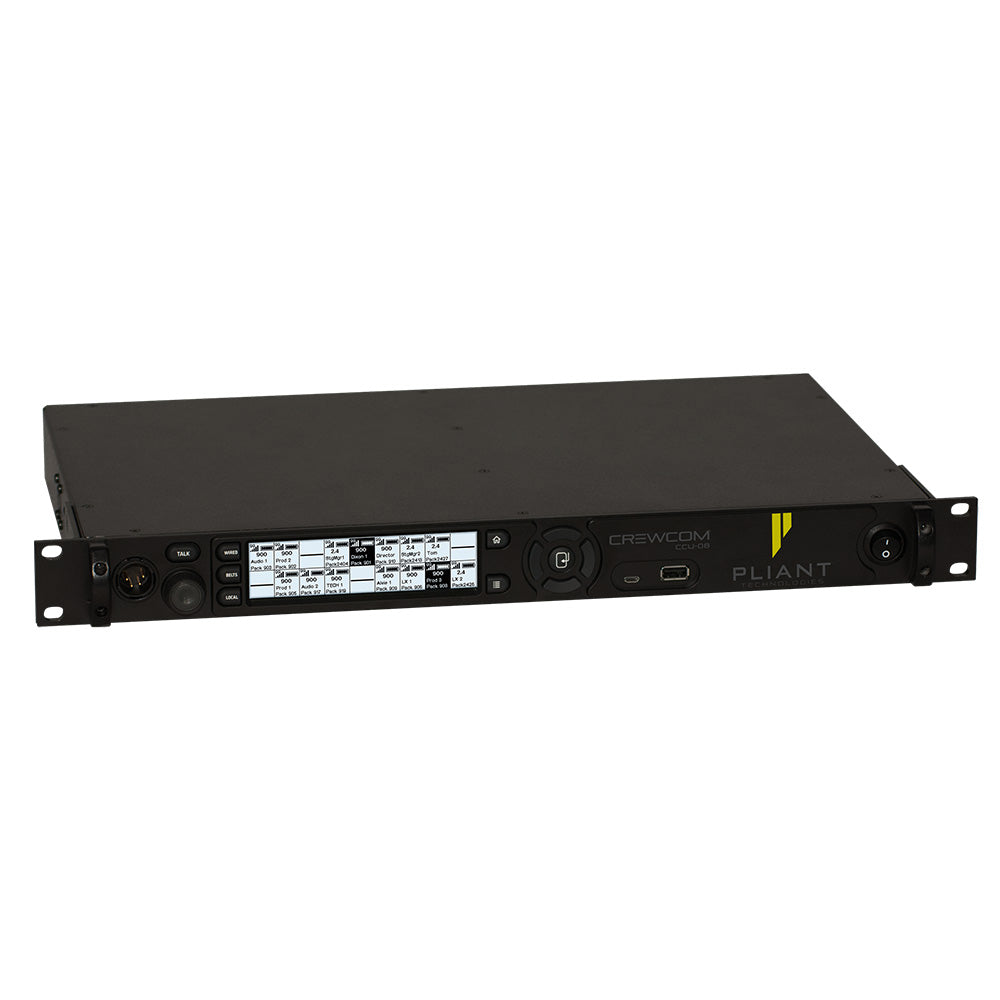

Pliant Technologies CCU-08 - CrewCom Intercom Control Unit
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The CrewCom CCU-08 Control Unit (CU) is a foundational element of the CrewCom system and establishes the CrewNet-based infrastructure while also providing eight 4-wire external connections to common established intercom systems. By design, this CU contains no radio and is frequency agnostic and can therefore control and monitor any device across CrewNet regardless of radio frequency bands being utilized. With the combination of CrewCom Radio Transceivers, CCU-08 supports up to 82 Radio Packs, 18 Normal mode and 64 High Density mode, across all available RF bands. (Control Unit does not include any other associated CrewCom products such as Radio Packs or Radio Transceivers, which are sold separately).
Features:
- Each CU supports up to 82 Radio Packs (RPs) across all RF bands (18 Normal mode RPs & 64 High Density mode RPs)
- Easy-to-use interface with large informative backlit display and clearly laid out quick access controls
- Eight available 4-Wire intercom connection
- Front panel USB ports for Radio Pack pairing, CrewCom device firmware updates and computer connectivity
- Duplex LC Single Mode Fiber and traditional Cat 5e or greater CrewNet connections
- LAN port for CrewWare connectivity via computer network
- Front panel headset monitor station
- Stage announce audio output
- AUX In/Out for program input and intercom audio output
- GPO Contact closure relays (x 5)
- Sync input to receive sync from another CrewCom system
| Hardwired Intercom Audio Channels | 8 |
| Active Radio Packs | Normal Operational Mode: 18 (requires use of at least 3 RTs.) High Density Operational Mode: 64 (requires use of at least 2 RTs.) |
| No. of Paired Radio Packs Supported (per system) | Normal Operational Mode: 72 High Density Operational Mode: 256 |
| USB Ports | (1) USB Type A; (1) Micro USB |
| Front Panel LCD Display | 512x128 resolution |
| Stage Announce and GPO Closures | 5 Relays via DA-15 |

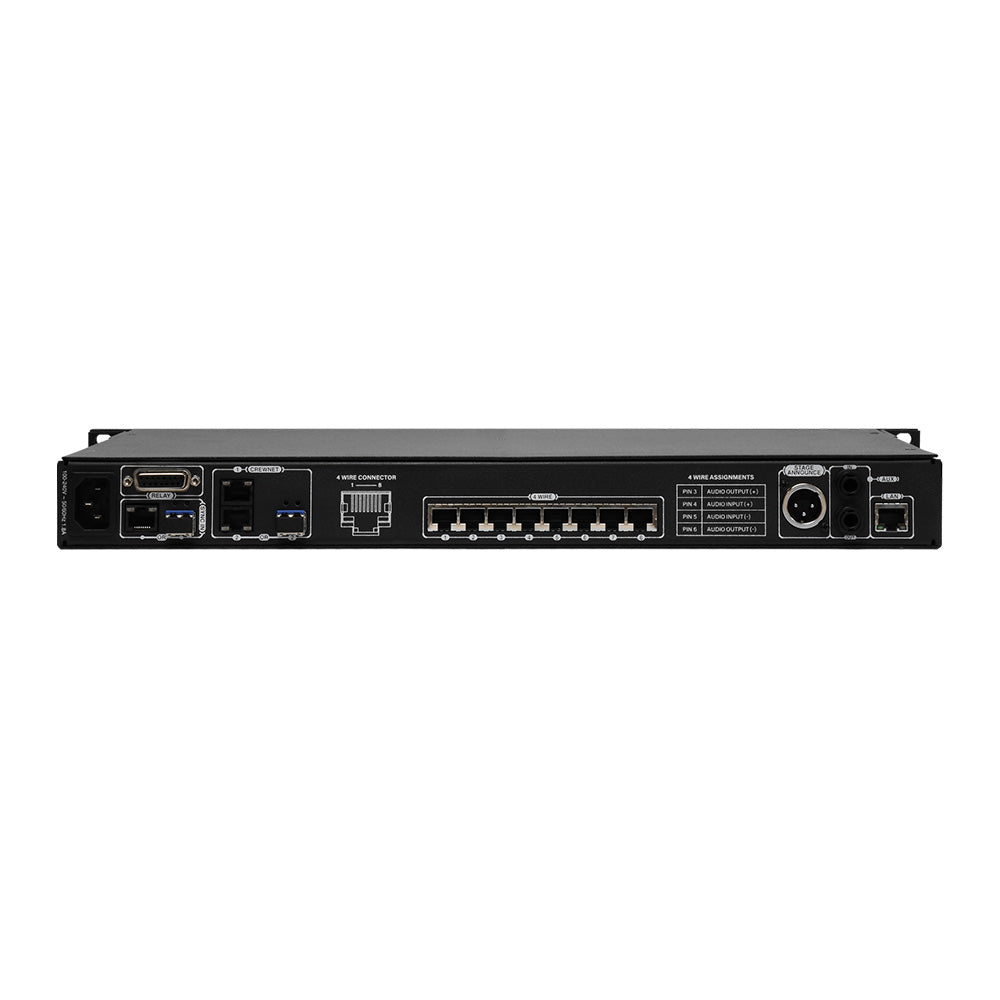

| CrewNet Ports (supports 2 connections) | (2) RJ-45 for copper; (1) duplex LC for Single Mode Fiber |
| Sync In Ports (supports 1 connection) | (1) RJ-45 for copper; (1) duplex LC for Single Mode Fiber |
| 2-Wire Intercom Connection | N/A |
| 2-Wire Compatibility | N/A |
| 4-Wire Intercom Connection | 8 ports via RJ-45 |
| Stage Announce Output | XLR 3M, nominal 12 dBu into 600 ohms, balanced, transformer isolated |
| AUX IN | 6.35 mm (1/4 in.) 3 conductor jack, 17.5 dBu max in, balanced, transformer isolated |
| AUX OUT | 6.35 mm (1/4 in.) 3 conductor jack, 12 dBu into 600 ohms, balanced, transformer isolated |
| LAN Port | (1) RJ-45 |
| Power Input/Connector | 100-240V ~ 50-60 Hz, 1.8A |
| Dimensions (L x W x H) | 1 RU, 48.3 cm _ 4.4 cm _ 29.7 cm (19 in. _ 1.73 in. _ 11.68 in.) metal enclosure |
| Weight | 2.9 kg (6.5 lbs) |
| Operating Environment | -20¡ to 50¡ C (-4¡ to 122¡ F); 10% to 90% Humidity. |
| Maximum Line Length | Copper 100 m (330 ft.); Fiber 10,000 m (32,800 ft.) |
| Maximum Altitude | 3,000 m (9,842 ft.) |
| RoHS Compliant | Yes |
