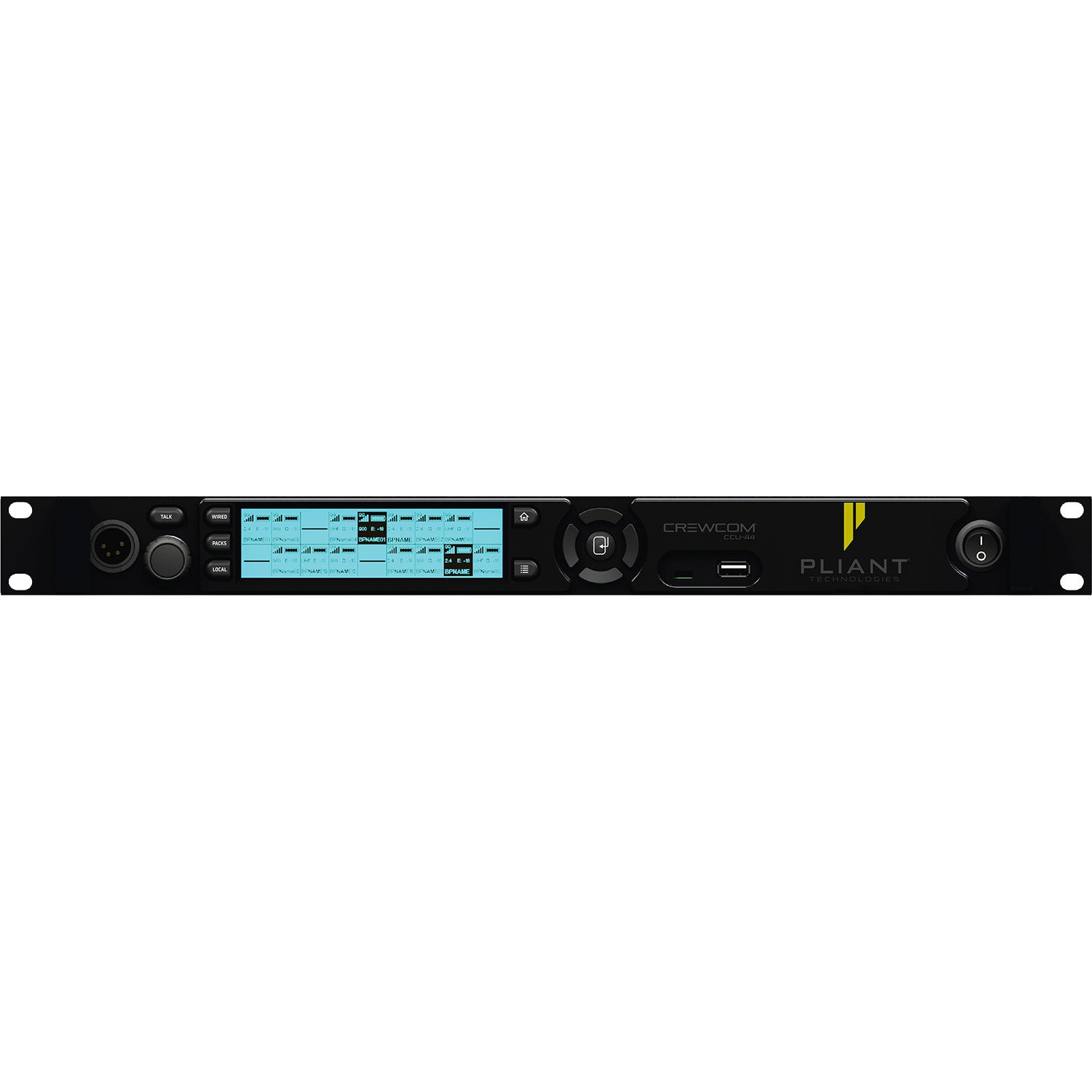

Pliant Technologies CCU-44 CrewCom 4-Wire Intercom Control Unit
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
4-plus-4, 1RU Control Unit, establishes a CrewNet-based infrastructure allowing for system-wide access, control and monitoring of any active CrewCom device, and provides external connectivity via four 2-Wire and four 4-Wire ports simultaneously. (Device does not include a radio; a Radio Transceiver is required for wireless communication with Radio Packs.)
The CrewCom Control Unit is the foundational element of the CrewCom® system and establishes the CrewNet-based infrastructure while also providing external connections to common established intercom systems. By design, the CU contains no radio and is frequency agnostic and can therefore control and monitor any device across CrewNet regardless of radio frequency bands being utilized. With the combination of CrewCom® Radio Transceivers, each CU supports up to 50 Radio Packs, 18 Normal mode and 32 High Density mode, across all available RF bands.
Features:
- Each CU supports up to 50 Radio Packs across all RF bands (18 Normal mode RPs and 32 High Density mode RPs)
- Easy-to-use interface with large informative backlit LCD display and quick access controls
- Simultaneously active 2-Wire and 4-Wire intercom connections
- Front panel USB ports for Radio Pack pairing, CrewCom device firmware updates, and computer connectivity
- Duplex LC Single Mode Fiber and traditional Cat 5e or greater CrewNet connections
- LAN port for CrewWare connectivity via computer network
- Front panel headset monitor station
- Stage announce audio output
- AUX In/Out for program input and intercom audio output
- GPO contact closure relays (x5)
- Sync input to receive sync from another CrewCom system
- 1RU rack mountable
- Integrated Ping function, which uses all LEDs to physically identify a target device
The Backbone: CrewNet™
CrewNet is a newly-developed, robust and reliable proprietary network designed specifically for the demands of critical communication environments. It is the backbone for interconnection between CrewCom devices, which is key to the decentralized network architecture. CrewNet is capable of deploying a CrewCom system over a very large coverage area with Cat 5e (up to 100 m) and/or Single Mode Fiber (up to 10 km).
In The Box:
- Control Unit
- AC Power Cord
- USB A to Micro B cable
- 15ft. (4.6 m) Cat 5e cable
- Quick Start Guide
- USB Flash Drive that includes product documentation
- Warranty Extension Registration Card
| Intercom Audio Channels | 8 |
| Active Radio Packs (Normal Mode) | 18 (18 active Normal Mode Radio Packs requires use of 3 RTs.) |
| Active Radio Packs (High Density Mode) | 32 |
| No. of Paired Radio Packs Supported (per CU) | 256 |
| USB Ports | (1) USB Type A; (1) Micro USB |
| Front Panel LCD Display | 512x128 resolution |
| Stage Announce and GPO Closures | 5 Relays via DA-15 |
| CrewNet Ports (supports 2 connections) | (2) RJ-45 for copper; (1) duplex LC for Single Mode Fiber |
| Sync In Ports (supports 1 connection) | (1) RJ-45 for copper; (1) duplex LC for Single Mode Fiber |
| 2-Wire Intercom Connection | 4 channels via XLR 3F with XLR 3M loop (4 ports) |
| 2-Wire Compatibility | Clear-Com, RTS, and AudioCom (Balanced) |
| 4-Wire Intercom Connection | 4 ports via RJ-45 |
| Stage Announce Output | XLR 3M, nominal 12 dBu into 600 ohms, balanced, transformer isolated |
| AUX IN | 1/4Ó (6.35 mm) 3 conductor jack, 17.5 dBu max in, balanced, transformer isolated |
| AUX OUT | 1/4Ó (6.35 mm) 3 conductor jack, 12 dBu into 600 ohms, balanced, transformer isolated |
| LAN Port | (1) RJ-45 |
| Power Input/Connector | 100-240V ~ 50-60 Hz, 1.8A |
| Dimensions | 1 RU, 19 in. _ 1.73in. _ 11.68 in. (48.3 cm _ 4.4 cm _ 29.7 cm) metal enclosure |
| Weight | 6.5 lbs (2.9 kg) |
| Operating Environment | -20¡ to 50¡ C (-4¡ to 122¡ F); 10% to 90% Humidity. |
| Maximum Line Length | Copper 330 ft. (100 m); Fiber 32,800 ft. (10,000 m) |
| Maximum Altitude | 9,842 ft. (3,000 m) |
| RoHS Compliant | Yes |
