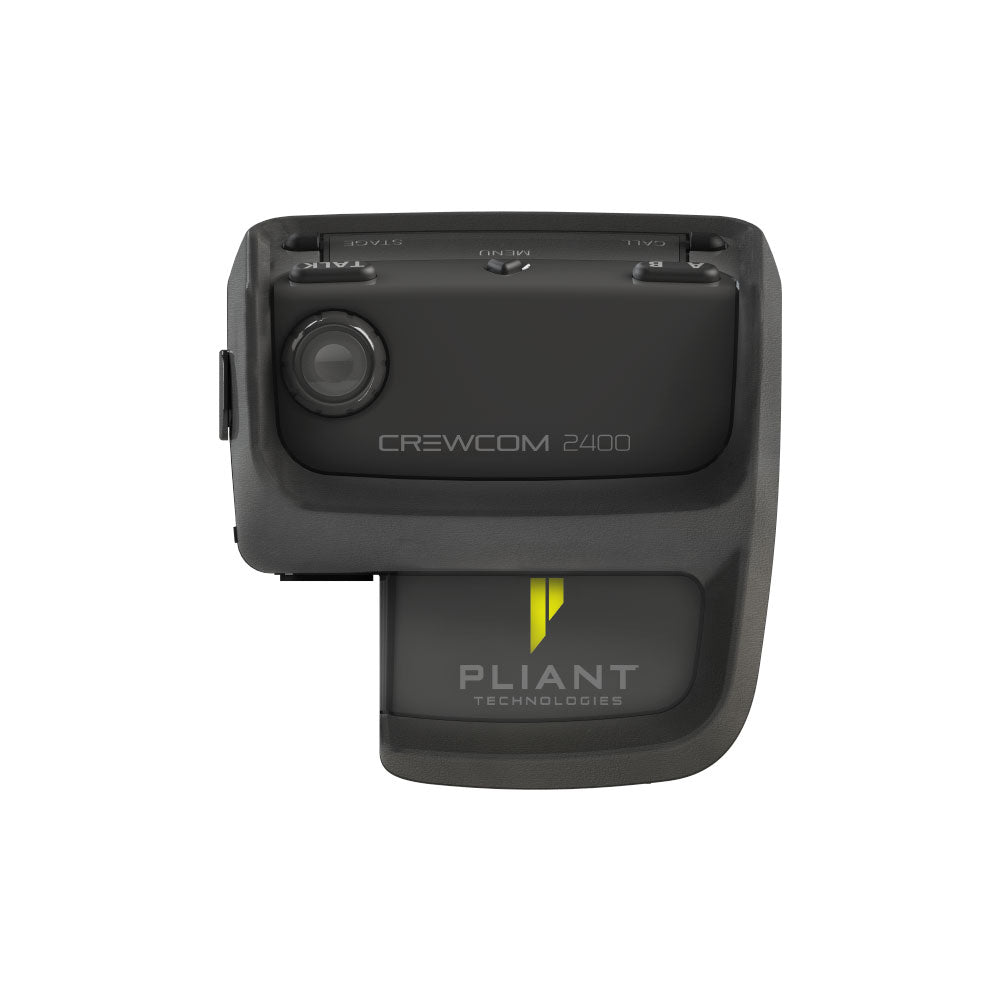

Pliant Technologies CRP-12-2400 - 2-Channel 2.4GHz Belt Pack for CrewCom CB2
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The CrewCom 2.4GHz, one-volume, two-channel (A or B) Radio Pack is an innovative digital wireless beltpack used for connecting mobile users to the CrewCom CB2 system. Along with standard full-duplex communications, the radio pack allows users to Independently listen and talk on two conferences. The pack also features intuitive controls, a compact lightweight design, advanced RF technology, and a backlit LED channel indication. (Note: This Radio Pack is ONLY compatible with the CB2-2400 BaseStation, is NOT compatible with any CrewCom CCU-44 or CCU-22 CU.
Features:
- Compact size
- Light weight (13 oz./ 369 g)
- 7 kHz audio for excellent voice quality
- Familiar volume/talk user interface
- Preprogrammed Function Buttons (x2)
- USB connection for pairing, firmware updates and battery charging
- Dual battery (Li-Poly or AA) operation
- Greater than 9 hours continuous operation (Li-Poly)
- Easy-to-use spring-loaded belt clip
| RF Frequency (MHz) | 2400Ð2483 MHz |
| RF Scheme | FHSS with TDMA |
| Effective Radiated Power | 100 mW (+20 dBm) |
| Receiver Sensitivity | -100 dBm at 10-5 BER |
| Radio Certification | FCCID: HSW-CCT24 and IC: 4492A-CCT24 |
| Transmission Range | 150 m (approx. 500 ft.) under typical conditions; 450 m (approx. 1500 ft.) line of sight (Note: Functional range depends on many variables, including RF signal absorption, reflection, and external interference.) |
| Audio Dynamic Range | Greater than 90 dB |
| Audio Frequency Response | 150 HzÐ7 kHz |
| Channels | 2 |
| Volume Knobs | 1 |
| Talk Buttons | 1 |
| Headset Connector | 4-pin male XLR |
| Microphone Type | Auto Detect; Dynamic or Electret |
| Antenna | (2) 2dBi Dipole |
| Battery Life, Rechargeable Lithium-Polymer | Greater than 10 hours |
| Charging Power Supply | Micro USB; 6W AC wall adapter |
| Charge Time for Lithium-Polymer Battery (with supplied PSU) | Under 3 hours |
| Optional Power | 3 Standard AA alkaline batteries |
| Battery Life, AA Batteries | Approximately 4.5 hours |
| Dimensions (L x W x H) | 11.43 cm _ 11.61 cm _ 5.87 cm (4.50 in. _ 4.57 in. _ 2.31 in.) |
| Weight (with Lithium-Polymer battery) | 350 g (12.3 oz.) |
| Material | Polycarbonate substrate with thermoplastic elastomer overmold |
| Operating Environment | -20¡ to 50¡ C (-4¡ to 122¡ F); 10% to 90% Humidity RP Power Supply is 0 to 40¡ C (32¡ to 104¡ F). |
| Maximum Altitude | 2,000 m (6,562 ft.) |
| RoHS Compliant | Yes |
| IP Rating | IP-65 |
| Compliance Model Number | RP2500 |
The CrewCom 2.4GHz, one-volume, two-channel (A or B) Radio Pack is an innovative digital wireless beltpack used for connecting mobile users to the CrewCom CB2 system. Along with standard full-duplex communications, the radio pack allows users to Independently listen and talk on two conferences. The pack also features intuitive controls, a compact lightweight design, advanced RF technology, and a backlit LED channel indication. (Note: This Radio Pack is ONLY compatible with the CB2-2400 BaseStation, is NOT compatible with any CrewCom CCU-44 or CCU-22 CU.
Features:
- Compact size
- Light weight (13 oz./ 369 g)
- 7 kHz audio for excellent voice quality
- Familiar volume/talk user interface
- Preprogrammed Function Buttons (x2)
- USB connection for pairing, firmware updates and battery charging
- Dual battery (Li-Poly or AA) operation
- Greater than 9 hours continuous operation (Li-Poly)
- Easy-to-use spring-loaded belt clip
| RF Frequency (MHz) | 2400Ð2483 MHz |
| RF Scheme | FHSS with TDMA |
| Effective Radiated Power | 100 mW (+20 dBm) |
| Receiver Sensitivity | -100 dBm at 10-5 BER |
| Radio Certification | FCCID: HSW-CCT24 and IC: 4492A-CCT24 |
| Transmission Range | 150 m (approx. 500 ft.) under typical conditions; 450 m (approx. 1500 ft.) line of sight (Note: Functional range depends on many variables, including RF signal absorption, reflection, and external interference.) |
| Audio Dynamic Range | Greater than 90 dB |
| Audio Frequency Response | 150 HzÐ7 kHz |
| Channels | 2 |
| Volume Knobs | 1 |
| Talk Buttons | 1 |
| Headset Connector | 4-pin male XLR |
| Microphone Type | Auto Detect; Dynamic or Electret |
| Antenna | (2) 2dBi Dipole |
| Battery Life, Rechargeable Lithium-Polymer | Greater than 10 hours |
| Charging Power Supply | Micro USB; 6W AC wall adapter |
| Charge Time for Lithium-Polymer Battery (with supplied PSU) | Under 3 hours |
| Optional Power | 3 Standard AA alkaline batteries |
| Battery Life, AA Batteries | Approximately 4.5 hours |
| Dimensions (L x W x H) | 11.43 cm _ 11.61 cm _ 5.87 cm (4.50 in. _ 4.57 in. _ 2.31 in.) |
| Weight (with Lithium-Polymer battery) | 350 g (12.3 oz.) |
| Material | Polycarbonate substrate with thermoplastic elastomer overmold |
| Operating Environment | -20¡ to 50¡ C (-4¡ to 122¡ F); 10% to 90% Humidity RP Power Supply is 0 to 40¡ C (32¡ to 104¡ F). |
| Maximum Altitude | 2,000 m (6,562 ft.) |
| RoHS Compliant | Yes |
| IP Rating | IP-65 |
| Compliance Model Number | RP2500 |
