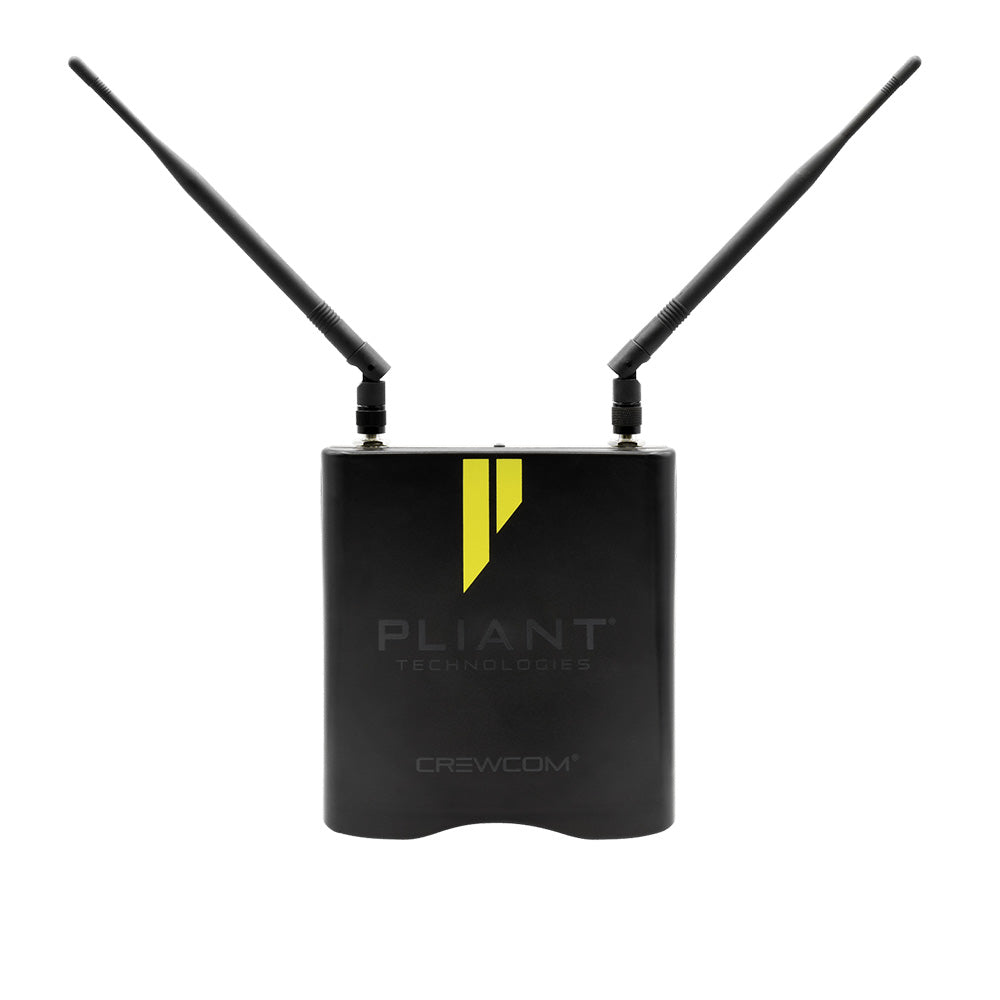

Pliant Technologies CRT-900-IPR - CrewCom IP-Rated 900MHz Radio Transceiver
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Pliant's CrewCom IP-Rated 900MHz Radio Transceiver (RT) is an ideal solution for broadcasters and any live event where outdoor placement of transceivers for wireless coverage is required. This line of highly weather resistant IP-Rated RTs gives users the ability to have wireless intercom coverage where needed, without any concerns regarding weather related issues. There are 4 models available: 900MHz for North America, 900MHz for Oceania, 2.4GHz for CE countries, and 2.4GHz for worldwide.
The RTs will feature a sleek, yet durable, ABS plastic housing along with silicone-molded connector covers to ensure ingress protection in all unused connections. In addition, an updated and easy-to-use power supply (Model #PPS-48V-02) connector has also been added to allow for a push/pull quick-release connection and disconnection. The CrewCom IP65-Rated 900MHz Radio Transceiver supports up to six Radio Packs in Normal Mode and up to 32 Radio Packs in High Density Mode and is 100% compatible with the current CrewCom systems and existing transceivers. It houses a radio with corresponding antennas and serves as an access point, enabling RF communications with CrewCom Radio Packs. Using CrewNet as a backbone, a large number of RTs can easily be positioned on the network over a wide coverage area through direct connection to a Control Unit or Hub(s), or through daisy-chain configuration with each other. IP-Rated models allow for outdoor use in some of the most demanding production environments.
Features:
- IP-Rated for use indoors or outdoors
- Sleek industrial design made of highly durable ABS plastic
- Molded silicone covers for all external connections to ensure IP ratingQuick-release power supply connector
- Supports up to 6 Normal mode or 32 High Density mode Radio Packs
- Supports a selectable Normal or High Density mode of operation
- CrewNet connections (etherCon or duplex LC Single Mode Fiber) with network status indicators
- Status indicators for data RX/TX, operation mode, and error
- CrewNet RT Loop connection for connecting up to 8 CrewCom Radio Transceivers
- Micro USB connection for firmware updates
- Integrated Ping function, which uses all LEDs to physically identify a target device
- Dual powering options (network power, external 48VDC—sold separately)
- 4 models available: 900MHz for North America, 900MHz for Oceania, 2.4GHz for CE countries, and 2.4GHz for worldwide
| RF Frequency (MHz) | 902Ð928 MHz |
| RF Scheme | FHSS with TDMA, IP-Rated for Outdoor Applications |
| Effective Radiated Power | 315mW (+26dBm) |
| Receiver Sensitivity | -100dBm |
| Radio Certification | FCCID: HSW-CCT900 and IC: 4492A-CCT900 |
| Transmission Range | 650 ft. (200 m) under typical conditions; 1950 ft. (600 m) line of sight (Note: Functional range depends on many variables, including RF signal absorption, reflection, and external interference.) |
| No. of Radio Packs Supported (when RT in Normal Mode) | 6 |
| No. of Radio Packs Supported (when RT in High Density Mode) | 32 |
| Number of Antenna Connections per RT | 2 |
| Antenna Connector Type | RP-TNC |
| Supplied Antenna | +2dBi Omni-directional (whip) |
| CrewNet In Port (supports 1 connection) | (1) RJ-45 for copper; (1) duplex LC for Single Mode Fiber, RT Loop Port (1) RJ-45 |
| Maximum Line Length Copper | 330 ft. (100 m); Fiber 32,800 ft. (10,000 m) |
| Network Power | CrewNet RJ-45 only |
| External Power | 48VDC Power Supply (Sold Separately) |
| Dimensions without Antennas (inches) | 6.30 in. _ 7.74 in. _ 1.81 in. (16 cm _ 19.7 cm _ 4.6 cm) |
| Weight | 1.25 lbs (567 g) |
| Operating Environment | -20¡ to 50¡ C (-4¡ to 122¡ F) 10% to 90% Humidity Maximum Altitude 9,842 ft. (3,000 m) |
| RoHS | Yes |
| Accessories | PC-ANT-DIR906 900MHz 6 dBi Yagi Directional Antenna AN-YA906-KIT 900MHz 6 dBi Yagi Directional Antenna Kit PPS-48V-02 48VDC External Power Supply, PAC-RTM-DK |
| In the Box | Radio Transceiver Omni-Directional Antenna (x2) 15ft. (4.6 m) Cat 5e cable USB A to Micro B cable Microphone Stand Adapter Single RT Adapter Mounting Bracket RT Flat Mounting Bracket Mounting Hardware and Bracket Product Overview Guide Warranty Extension Registration Card |
