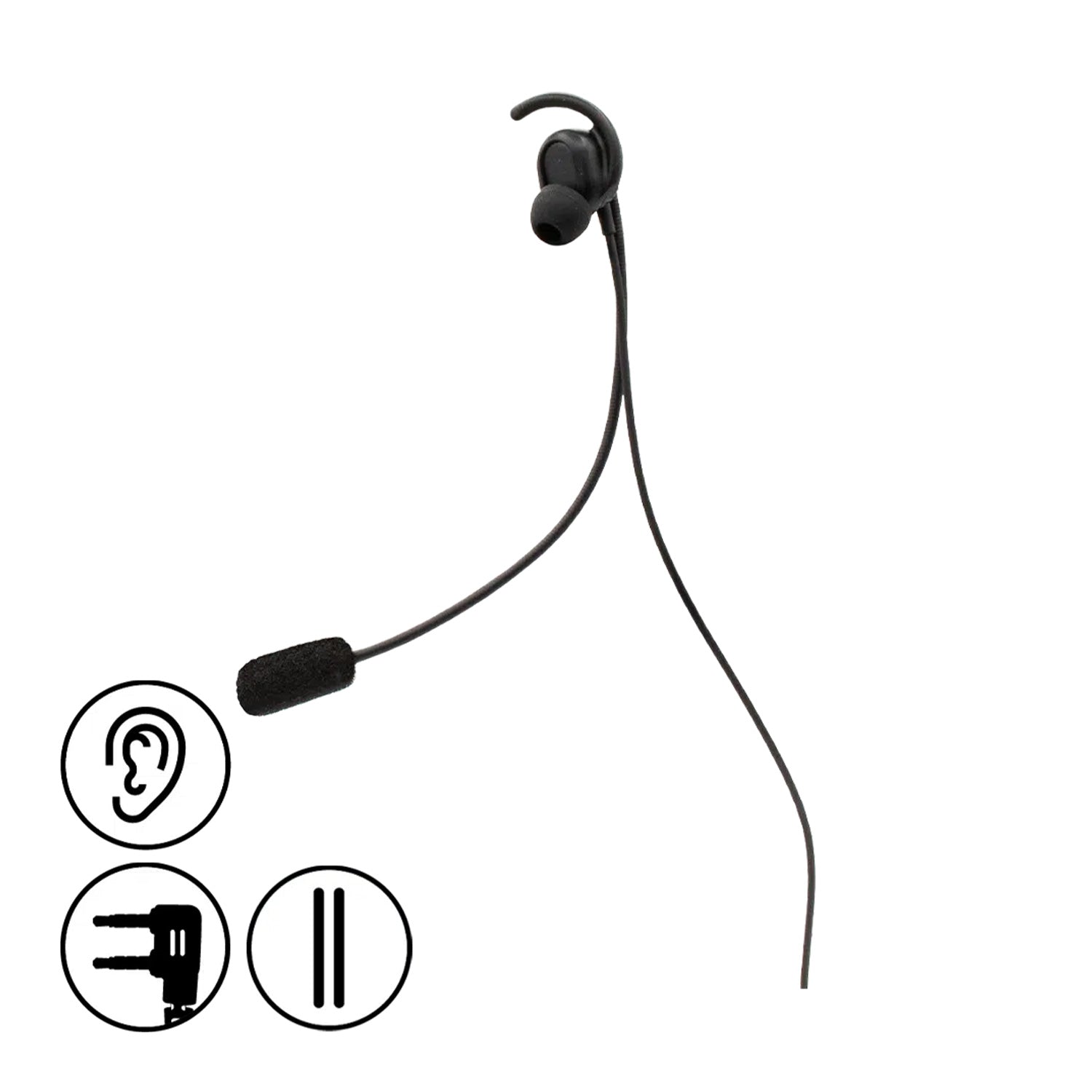

Pliant Technologies PHS-IEHU-DMG - MicroCom In-Ear Universal Fit Electret Headset (Dual 3.5mm)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
With the ultimate comfort and flexibility in mind, the MicroCom In-Ear Universal Fit Electret Headset features a dual 3.5mm connector that can be used with all MicroCom beltpacks. The headset not only provides great comfort but also flexibility by utilizing silicone ear concha locks and ear buds for ether left ear or right ear orientation. In addition, the in-ear headset is compatible with applicable PTT adapters (PAC-PTT-DMG or PAC-PTT-TA6F) and also supports custom ear molds specifically designed for a individual user's ear from custom ear mold manufacturers Sensaphonics and Coda Room Audio.
Features:
- Light weight design and crystal-clear sound
- Sport-style microphone with in-ear (left or right) holder
- Flexible ultra-light boom
- Custom earmold compatible (Sensaphonics or Coda Room Audio)
- Uni-directional noise-cancelling electret microphone
- Flexible silicone outer-ear holder for increased security
- Replaceable windscreen and rubber or foam ear buds
- Dual 3.5mm Connector
- PTT (Push-to-Talk) Adapter Compatible
| In the Box | In-Ear Headset Rubber Earbuds (x3) Small, Medium, Large) Foam Earbuds (x3) (Small, Medium, Large) Generic Silicone Ear Molds (x2) (Left, Right) Magnetic Cable Clip Zippered Pouch Soft Case |
| Microphone, Type | Electret, Directional |
| Characteristic | Uni-Directional (Noise Cancelling) |
| Sensitivity | -42 ±4dB (0db=1V.Pa, 1 KHz) , RL=2.2k Ohms, Vcc=2.0V. |
| Impedance | Less than 2. 2k Ohms at 1 kHz |
| Frequency Response | 100 Hz Ð 10 kHz (+/- 10dB) |
| S/N Ratio | More than 58dB at 1 kHz (1 Pa (94dB SPL) A weighted network) |
| Input Sound Level | Max. 100 dB S.P .L (at 1 KHz, Distortion <3%) |
| Standard Operating Bias Voltage | 2. 0V [Min:1V, Max 10V] |
| Current Consumption | 500µA (RL=2.2k Ohms, Vcc=2. 0V) |
| Speaker Impedance | 32 Ohms ± 15% |
| Resonance Freq. | 1.2kHz ± 20% |
| Power Rating | Nominal 0.5 W / Max. 0.7 W |
| Sensitivity (SPL) | 83 dB ± 3 dB |
| Total Harmonic Distortion | Less than 10% from 1 kHz., 0.1W |
| Frequency Response | 600 Hz to 18 kHz (± 8dB) |
| Polarity | When a positve DC current is applled to the terminal marked (+ ) the diaphragm shall move forward. |
With the ultimate comfort and flexibility in mind, the MicroCom In-Ear Universal Fit Electret Headset features a dual 3.5mm connector that can be used with all MicroCom beltpacks. The headset not only provides great comfort but also flexibility by utilizing silicone ear concha locks and ear buds for ether left ear or right ear orientation. In addition, the in-ear headset is compatible with applicable PTT adapters (PAC-PTT-DMG or PAC-PTT-TA6F) and also supports custom ear molds specifically designed for a individual user's ear from custom ear mold manufacturers Sensaphonics and Coda Room Audio.
Features:
- Light weight design and crystal-clear sound
- Sport-style microphone with in-ear (left or right) holder
- Flexible ultra-light boom
- Custom earmold compatible (Sensaphonics or Coda Room Audio)
- Uni-directional noise-cancelling electret microphone
- Flexible silicone outer-ear holder for increased security
- Replaceable windscreen and rubber or foam ear buds
- Dual 3.5mm Connector
- PTT (Push-to-Talk) Adapter Compatible
| In the Box | In-Ear Headset Rubber Earbuds (x3) Small, Medium, Large) Foam Earbuds (x3) (Small, Medium, Large) Generic Silicone Ear Molds (x2) (Left, Right) Magnetic Cable Clip Zippered Pouch Soft Case |
| Microphone, Type | Electret, Directional |
| Characteristic | Uni-Directional (Noise Cancelling) |
| Sensitivity | -42 ±4dB (0db=1V.Pa, 1 KHz) , RL=2.2k Ohms, Vcc=2.0V. |
| Impedance | Less than 2. 2k Ohms at 1 kHz |
| Frequency Response | 100 Hz Ð 10 kHz (+/- 10dB) |
| S/N Ratio | More than 58dB at 1 kHz (1 Pa (94dB SPL) A weighted network) |
| Input Sound Level | Max. 100 dB S.P .L (at 1 KHz, Distortion <3%) |
| Standard Operating Bias Voltage | 2. 0V [Min:1V, Max 10V] |
| Current Consumption | 500µA (RL=2.2k Ohms, Vcc=2. 0V) |
| Speaker Impedance | 32 Ohms ± 15% |
| Resonance Freq. | 1.2kHz ± 20% |
| Power Rating | Nominal 0.5 W / Max. 0.7 W |
| Sensitivity (SPL) | 83 dB ± 3 dB |
| Total Harmonic Distortion | Less than 10% from 1 kHz., 0.1W |
| Frequency Response | 600 Hz to 18 kHz (± 8dB) |
| Polarity | When a positve DC current is applled to the terminal marked (+ ) the diaphragm shall move forward. |
