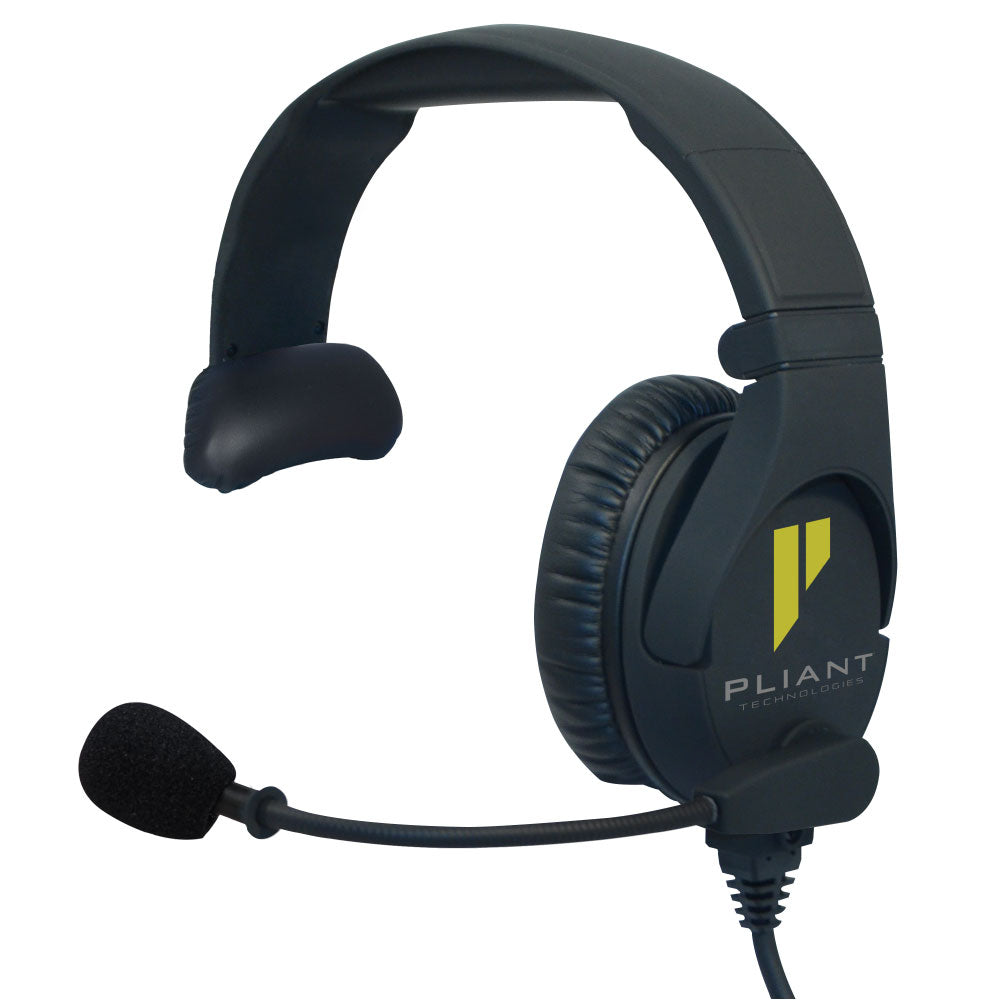

Pliant Technologies PHS-SB110-4F SmartBoom Pro Single-Ear Intercom Headset (XLR4F)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The 4-Pin Female connector model of the SmartBoom® PRO Single Ear Headset is part of a line of communications headsets that incorporate a convenient flip-up microphone muting feature and is specifically designed for exceptional comfort, flexibility, and durability as needed in the most demanding professional environments.
This model features a 5 ft. (1.52 m) cable with 4-Pin XLR Female connector termination.
Features:
- Outstanding audio quality with enhanced acoustic isolation
- Closed back circumaural (over ear) design available in single and dual-ear models
- Flexible, ambidextrous swiveling mic boom
- SmartBoom flip up microphone mute
- Dynamic noise-cancelling cardioid microphone optimized for voice communications
- Comfort fit adjustable headband
- Replaceable ear, headband, and temple cushion pads
- Non-reflective rubberized matte black finish
- Collapsible earpiece design
- Detachable cable (5 ft./1.5 m supplied)
In The Box:
- Headset
- Operating Manual
- Data Sheet
- (1) Ear Sock
- Cable Clip
| WhatÕs in the Box? | ¥ Headset ¥ Operating Manual ¥ Ear Sock ¥ Magnetic Cable Clip |
| Microphone | |
| Microphone Type | Electret Condenser |
| Frequency Response | 20Ð16,000 Hz |
| Mic Sensitivity | -45 ± 2 dBV/Pa at 1 kHz |
| Pattern | Unidirectional |
| Output Impedance | 1Ð1.9 k½ |
| Speaker (Headphone) | |
| Frequency Response | 20Ð20,000 Hz |
| Nominal Impedance | 100 ½ |
| Sensitivity at 1 kHz | 117 dB SPL/mW |
| Speaker Type | Dynamic |
| Max Input Power | 500 mW |
| Cables | |
| Termination at Ear | Removable (Crossbolt) |
| Length | 5.00 ft. (1.52 m) |
| Outside Diameter | 0.24 in. (6.00 mm) |
| Physical Features | |
| Mic Boom Length | 8.50 in. (215.90 mm) |
| Weight (without cable) | 8.1 oz (229.63 g) |
| Cable Weight | 3.8 oz (107.73 g) |
| Connector | XLR Female, 4 pin (Clear-Com / CoachComm standard |
The 4-Pin Female connector model of the SmartBoom® PRO Single Ear Headset is part of a line of communications headsets that incorporate a convenient flip-up microphone muting feature and is specifically designed for exceptional comfort, flexibility, and durability as needed in the most demanding professional environments.
This model features a 5 ft. (1.52 m) cable with 4-Pin XLR Female connector termination.
Features:
- Outstanding audio quality with enhanced acoustic isolation
- Closed back circumaural (over ear) design available in single and dual-ear models
- Flexible, ambidextrous swiveling mic boom
- SmartBoom flip up microphone mute
- Dynamic noise-cancelling cardioid microphone optimized for voice communications
- Comfort fit adjustable headband
- Replaceable ear, headband, and temple cushion pads
- Non-reflective rubberized matte black finish
- Collapsible earpiece design
- Detachable cable (5 ft./1.5 m supplied)
In The Box:
- Headset
- Operating Manual
- Data Sheet
- (1) Ear Sock
- Cable Clip
| WhatÕs in the Box? | ¥ Headset ¥ Operating Manual ¥ Ear Sock ¥ Magnetic Cable Clip |
| Microphone | |
| Microphone Type | Electret Condenser |
| Frequency Response | 20Ð16,000 Hz |
| Mic Sensitivity | -45 ± 2 dBV/Pa at 1 kHz |
| Pattern | Unidirectional |
| Output Impedance | 1Ð1.9 k½ |
| Speaker (Headphone) | |
| Frequency Response | 20Ð20,000 Hz |
| Nominal Impedance | 100 ½ |
| Sensitivity at 1 kHz | 117 dB SPL/mW |
| Speaker Type | Dynamic |
| Max Input Power | 500 mW |
| Cables | |
| Termination at Ear | Removable (Crossbolt) |
| Length | 5.00 ft. (1.52 m) |
| Outside Diameter | 0.24 in. (6.00 mm) |
| Physical Features | |
| Mic Boom Length | 8.50 in. (215.90 mm) |
| Weight (without cable) | 8.1 oz (229.63 g) |
| Cable Weight | 3.8 oz (107.73 g) |
| Connector | XLR Female, 4 pin (Clear-Com / CoachComm standard |
