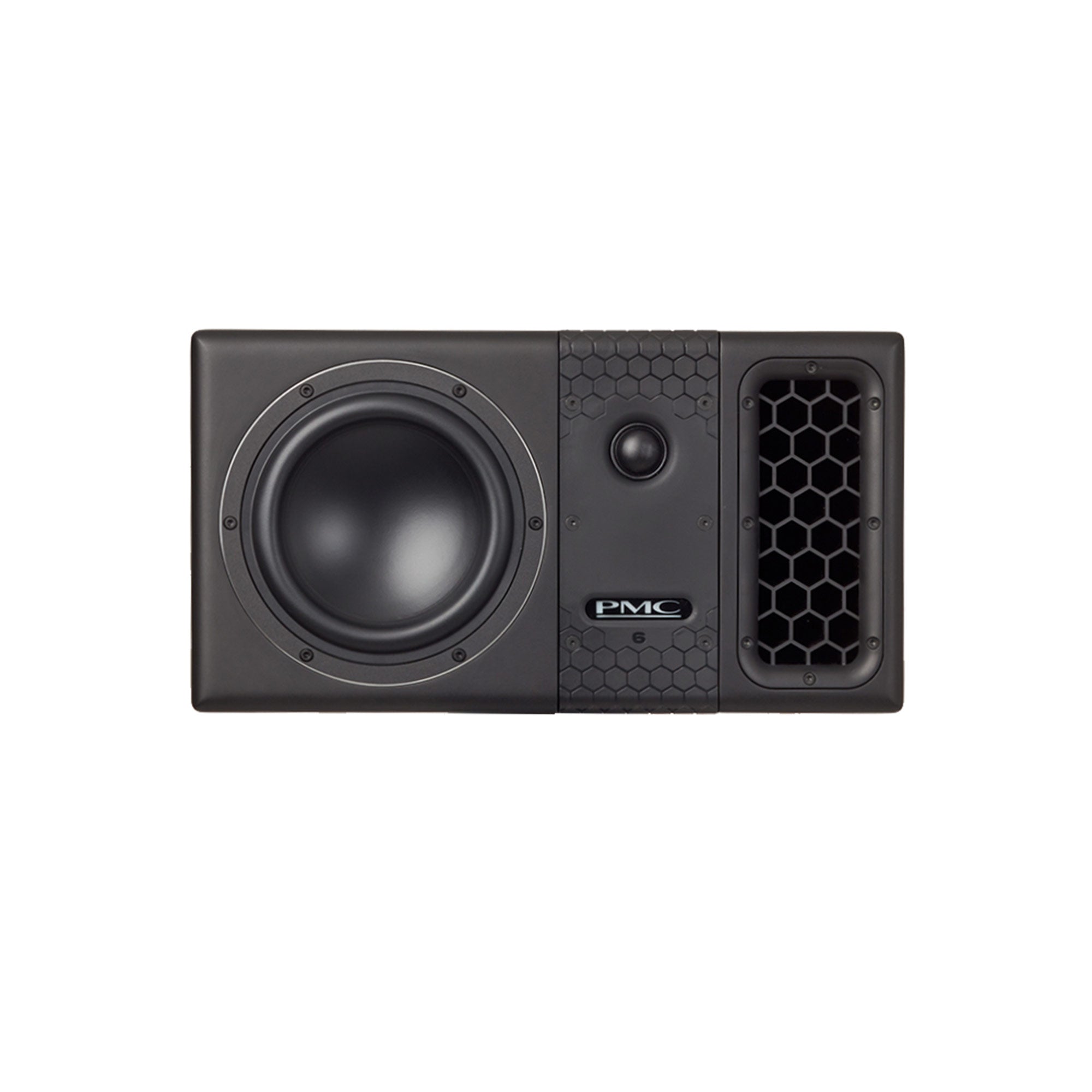

PMC PMC6 - Active Two-Way 6-Inch Nearfield Reference Studio Monitors (Pair)

  • Dale #:

    PMC-PMC6
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

If you are a professional who needs the last word in reliable reference monitoring in a compact form, then the PMC6 active two-way is the answer. The PMC6 is packed with innovation and providing the same sonic signature as PMC's renowned larger monitors, it’s ideal for smaller control rooms or f... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

If you are a professional who needs the last word in reliable reference monitoring in a compact form, then the PMC6 active two-way is the answer.

The PMC6 is packed with innovation and providing the same sonic signature as PMC's renowned larger monitors, it’s ideal for smaller control rooms or for use in larger immersive systems, where its astounding resolution allows critical mix decisions to be made with absolute confidence.

With 20mm of excursion, the bespoke 6-inch bass driver is designed specifically to integrate with PMC's latest ATL™ bass-loading and Laminair™ airflow technologies. The combination outperforms most 8-inch monitors, offering unparalleled bass extension, headroom, dynamics, and low distortion at all levels. The high end is courtesy of a one-inch precision-built fabric soft-dome tweeter, with a shallow waveguide that creates wide, tonally consistent dispersion and rock-solid imaging. Both the bass and treble drivers are precisely and individually controlled by a pair of 200W ultra-low-distortion, high-damping-factor Class-D amplifiers.

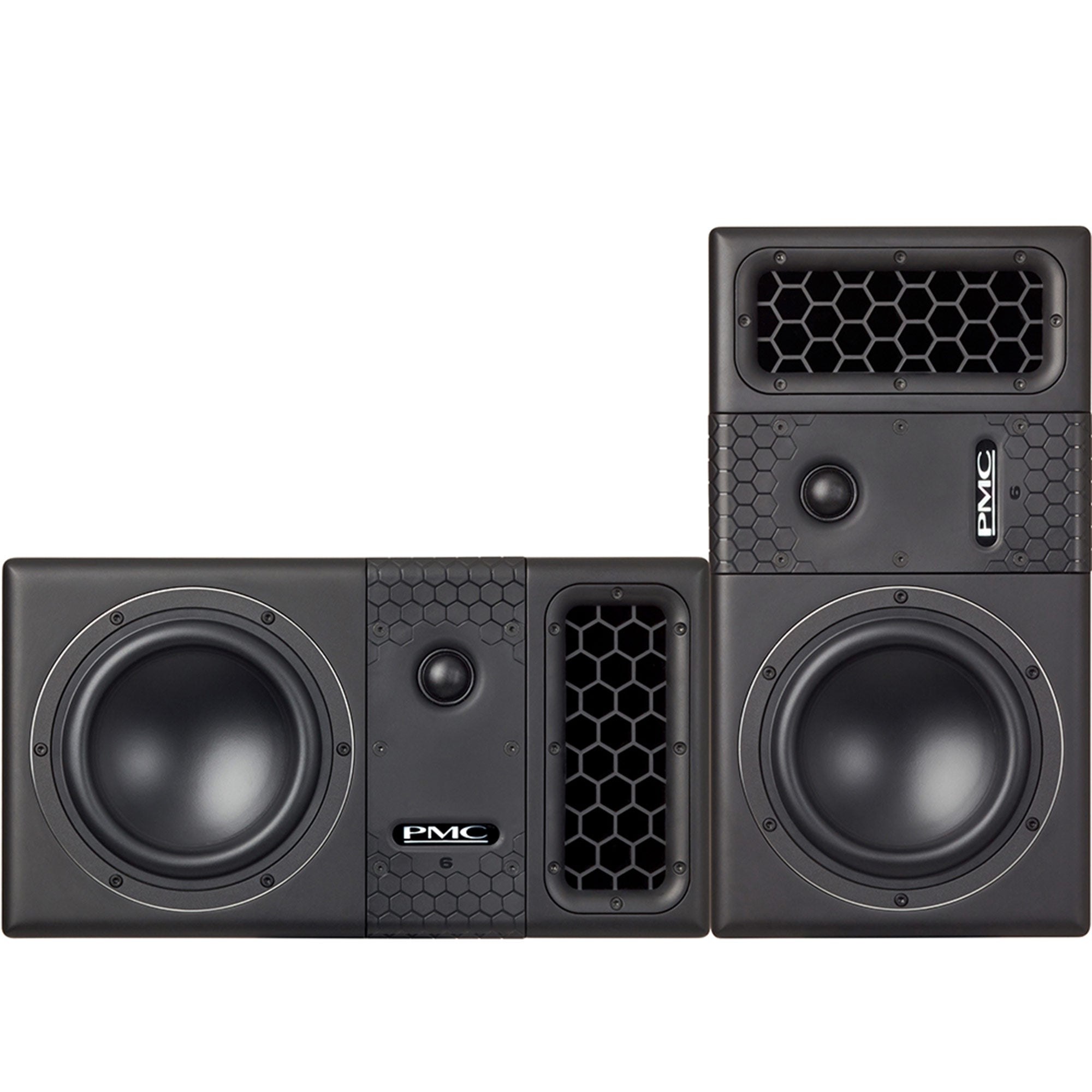

Whether in portrait or landscape placement, the PMC6’s sophisticated DSP engine automatically adjusts the crossover, ensuring optimum tonal accuracy, phase and imaging.

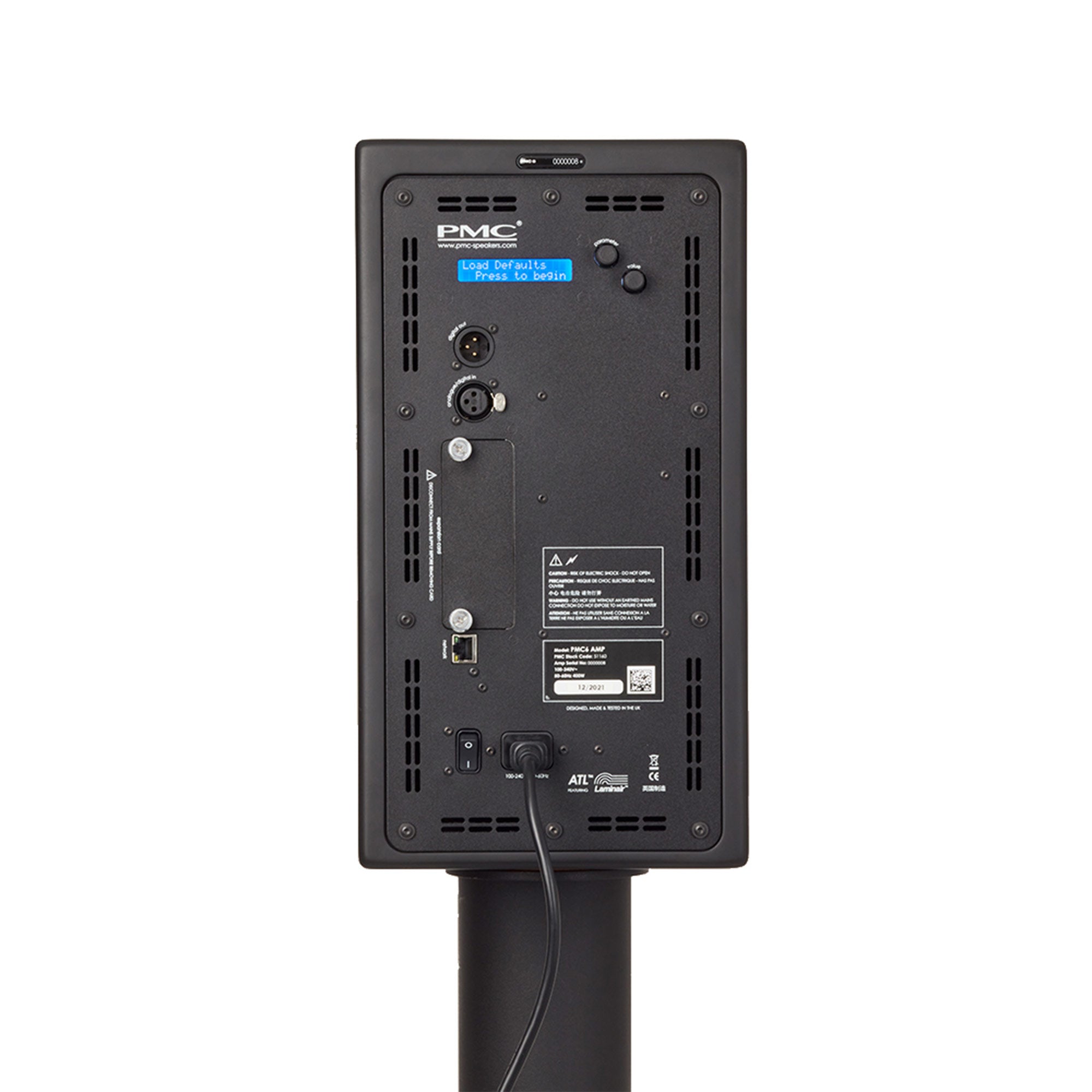

The monitor can be calibrated using the rear-panel controls or with PMC’s intuitive browser-accessible SoundAlign™ software. The PMC6 can be upgraded by adding a PMC8 SUB to create a full-range, free-standing PMC6 XBD system. Activating the 'XBD' DSP mode ensures the perfect marriage of the two units, creating a clean LF extension down to 25Hz.

Features:

  • Active 2-way nearfield reference monitor with ATL™ bass loading
  • Frequency response: 39Hz - 25kHz (- 3dB @1m full space, on-axis)
  • Max. cont. SPL: 106dB @1m (half space value calculated as +3dB from full space measurement.
    Un-weighted input,20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
  • State-of-the-art Class-D amplifiers: HF 200W, LF 200W
  • Analogue/AES3 digital input (16/24-bit, 18 -192kHz sample rate)
  • Digital 'through' output (AES3 24-bit 96kHz)
  • SoundAlign™ network control interface for single or group EQ and settings
  • Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options
  • Automatic portrait/landscape placement DSP correction
  • PMC6 + PMC8 SUB creates PMC6 XBD, with LF down to 25Hz
  • Ceiling-mount yoke allows suspension in multi-channel or immersive systems

More +

Product Specs

Type Active 2-way nearfield reference monitor with ATL™ bass loading
Drive Unit Complement LF PMC 150mm (6") studio 6 driver
HF PMC 27mm (1") soft dome tweeter
Effective ATL™ Length 1.8m (5.9ft)
Frequency Response 39Hz - 25kHz (- 3dB) (@1m full space, on-axis)
Sensitivity +4dBu input signal = 98dB SPL @ 1m
Max continuous SPL 106dB @1m (Half space value calculated as +3dB from full space measurement.
Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
Max Peak SPL 118dB @1m (Half space value calculated as +3dB from full space measurement.
Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
Directivity H +/-60 degrees V +50/-40 degrees (-6dB off axis @10kHz)
Input XLR switchable between analogue or digital AES3
Analogue input - +20/+24dBu max. input level (selectable) - 22K ohm input impedance
Digital input - 16/24-bit AES3 signal, left, right or left + right - 18 - 192kHz sample rate - 110 ohm input impedance
Expansion card slot - For future connectivity upgrades
Output XLR digital AES3 (fixed 24-bit @ 96kHz)
Network RJ45 for use with PMC SoundAlign web interface
Features Level Trim (+/-10dB)
Orientation (portrait, landscape, auto)
High-pass filter (20 - 200Hz, 12dB/Oct)
Delay (0 - 30mS)
Phase (normal or inverted)
LF / HF shelving filters (20Hz - 20kHz, +/- 10dB, Q 0.707)
Parametric EQ (5 bands, 20Hz - 20kHz, +/- 10dB)
User presets (3 + factory defaults)
Latency 2.4mS
Amplifier power per channel LF 1 x 200Wrms HF1 x 200Wrms
Mains 100 - 240VAC auto-switching, 50-60Hz (IEC C14)
Power consumption (idle) 35W
Power consumption (max) 400W
Cabinet dimensions Portrait H400mm (15.7") W 215mm (8.5") D 372mm (14.6")
Cabinet dimensions Landscape H 215mm (8.5") W 400mm (15.7") D 372mm (14.6")
Weight 11.1kg (24.4lbs) each
