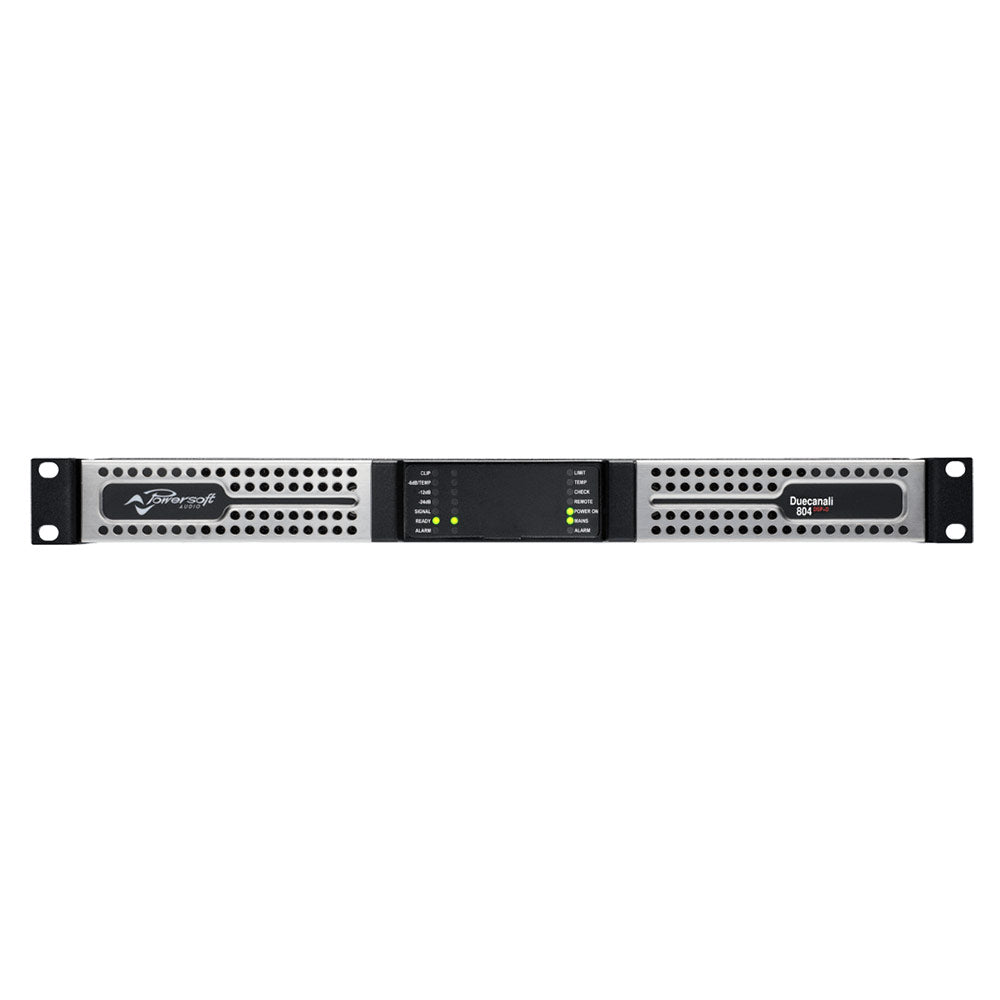

Powersoft Duecanali 804 DSP+D - 2-Channel Install Power Amplifier with DSP and Dante
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ability to implement any configuration with ease makes the Duecanali series extremely flexible. Powersoft's legendary efficiency saves valuable energy, keeping both operational cost and carbon footprint at a minimum.
The Duecanali 804 DSP+D is designed to work with Lo-Z (from 2 Ω ) and with 70V/100V distributed lines: any mixed impedance output loads can be realized.
For Installed Sound Reinforcement systems, the Duecanali Series offers remarkably low power consumption and heat dissipation, in addition to Powersoft's renowned audio quality and reliable performance — all in a compact, lightweight unit. The Duecanali is a Class D power amplification platform designed for larger 2-channel install applications. While all Duecanali versions deliver Powersoft's renowned reliability and power density in a light, compact unit, Duecanali DSP+D versions also offer built in, state-of-the-art DSP, as well as Dante, providing additional system flexibility and extensive amplifier control.
A fully integrated state-of-the-art DSP yields extensive system management functionality. In addition to sound shaping and limiter functions in unique Powersoft style, the DSP hardware and ArmoníaPlus software enable compliance with IEC 60849 for the crucial requirements of sound systems for emergency purposes.
MyPowersoft services are available for this product.
Features:
Power supply
- Powersoft legendary universal switch-mode power supply up to 400VAC tolerant with Power Factor Correction
- Patented output filter with ripple cancellation network
- Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
- Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
Protections
Fully protected circuit design with:- Ac protection: shut down power supply when AC mains voltage is outside the operating range
- Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
- DC protection: protects against infrasonic signal at the outputs
- VHF protections: protects the loudspeakers against non-audible, strong, non-musical high-frequency signals
- Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
- Long term limiter: protects the loudspeaker against steady long term RMS (non-audio) signals, by reducing maximum output
- Thermal protection: output stages operating temperature up to 80 °C (176 °F)
- Temperature controlled continuous variable speed fan, front to back airflow
- Temperature forecast with LCD traced historical behavior
General
- Fixed frequency switchmode output stage for high grade sound accuracy
- Compact size - all models only 1 RU for reduced rack cost and space
- Light weight - for easier racking and shipping: 7 kg (15.4 lbs)

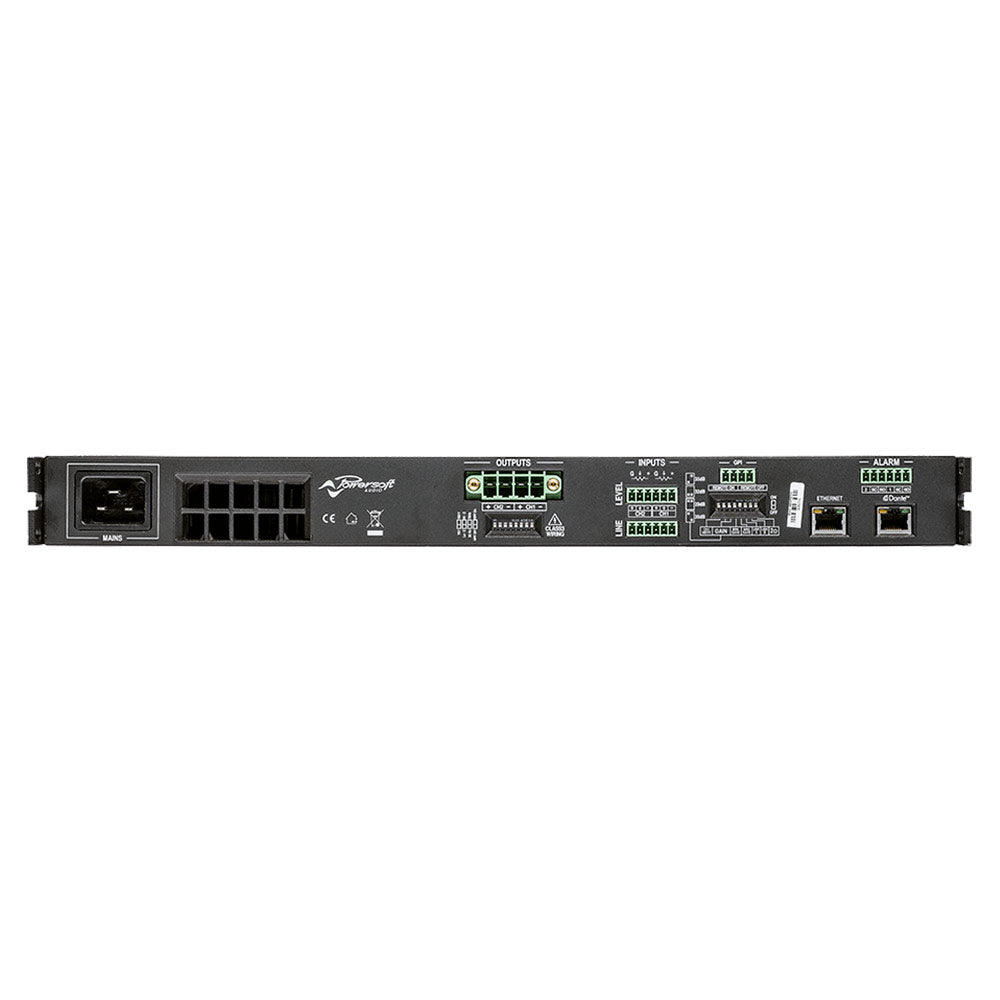

- Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
- Remotely switchable double input (main and aux) per channel
Loudspeaker system configuration
- Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
- Switchable 35Hz / 70Hz high pass filter per channel
- Mixed configuration with Lo-Z/Hi-Z systems possible
- Bridged mode low impedance per channel pair
Alarms and GPI/O
- NC/NO contacts per channel for alarm notifications
- Remote ON/OFF switch
- Remote VCA control per channel
Digital Signal Processing
- TI C6000 DSP platform
- AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture
- Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
- Delay up to 100 ms for time alignment
- Active DampingControl™ for cable compensation
- Peak, RMS voltage, RMS current, TruePower™ limiters
Remote Control / Monitoring
Via Software:- Control and diagnostics monitoring via ArmoníaPlus
- Dedicated WebApp
- Attenuation (from 0dB to 26dB)
- High-pass filters (35Hz, 70Hz)
- Lo-Z/Hi-Z/70V/100V output selection
- Adjustable gain (from 26dB to 35 dB)
| Channel Handling | |
| Number of output channels | 2 Hi-Z or Lo-Z (bridgeable per ch. pair) Phoenix PC 5/4-STF1-7,62 |
| Number of input channels | 2 Analog Phoenix MC 1,5/6-ST-3,81 2 Dante 1 x RJ45 |
| Audio | |
| Input sensitivity @ 8 ½ with 26 dB Gain | 2.84 Vrms |
| Input sensitivity @ 8 ½ with 29 dB Gain | 2.01 Vrms |
| Input sensitivity @ 8 ½ with 32 dB Gain | 1.42 Vrms |
| Input sensitivity @ 8 ½ with 35 dB Gain | 1.01 Vrms |
| SNR (20 Hz - 20 kHz @ 8 ½) | >106 dB(A) |
| Max input level | 20 dBu |
| Frequency Response | 20 Hz - 20 kHz ±1.0 dB, 1 W @ 8 ½ |
| Crosstalk (1 kHz) | typical -70 dB |
| Input impedance | 20 k½ balanced |
| THD+N (from 0.1 W to Half Power) | < 0.1% (typical < 0.05%) |
| SMPTE IMD (from 0.1 W to Half Power) | < 0.1% (typical < 0.05%) |
| Slew Rate | > 50 V/µs @ 8 ½, input filter bypassed |
| Output impedance at 100 Hz | 26 m½ |
| DSP | |
| AD converters | 24 Bit Tandemª @ 48 kHz 125 dB-A Dynamic Range - 0.005 % THD+N |
| DA converters | 24 Bit Tandemª @ 48 kHz 117 dB-A Dynamic Range - 0.003 % THD+N |
| Sample rate converter | 24 Bit @ 44.1 kHz to 192 kHz 140 dB Dynamic Range - 0.0001 % THD+N |
| Internal precision | 32 bit floating point |
| Latency | 2.5 ms fixed latency architecture |
| Memory/Presets | 49 amplifier snapshots, virtually unlimited speaker presets |
| Delay | 2 s (input) + 100 ms (output) for time alignment |
| Equalizer | Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass |
| Crossover | linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR) |
| Limiters | TruePowerª, RMS voltage, RMS current, Peak limiter |
| Damping control | Active DampingControlª and LiveImpedanceª measurement |
| Output Stage | |
| per channel @ 8 ½ (symmetrical) | 400 W |
| per channel @ 4 ½ (symmetrical) | 400 W |
| per channel @ 2 ½ (symmetrical) | 500 W |
| @ 4 ½ Bridged (symmetrical) | 1000 W |
| @ 8 ½ Bridged (symmetrical) | 800 W |
| @ Hi-Z distributed line 100 V (symmetrical) | 400 W |
| @ Hi-Z distributed line 70 V (symmetrical) | 400 W |
| per channel @ 8 ½ (asymmetrical) | 800 W |
| per channel @ 4 ½ (asymmetrical) | 800 W |
| per channel @ 2 ½ (asymmetrical) | 1000 W |
| @ Hi-Z distributed line 100 V (asymmetrical) | 800 W |
| @ Hi-Z distributed line 70 V (asymmetrical) | 800 W |
| Maximum unclipped output voltage @ 8 ½ | 80 V peak |
| Maximum output current | 39 A peak |
| Power / Thermal | |
| Idle | Power: 23 W Current Draw: 0.34 A rms Thermal Loss: 78 BTU/h |
| 1/8 Power @ 4½ | Power: 148 W Current Draw: 1.4 A rms Thermal Loss: 162 BTU/h |
| Power supply | Universal regulated switch mode with PFC, SRM |
| Nominal voltage (±10%) | 100-240 VAC @ 50-60Hz |
| Operating Voltage | 90-264 VAC |
| AC Mains connector | IEC C20 inlet (20 A max) region-specific power cord provided |
| Networking | |
| Standards compliance | auto-sensing Fast Ethernet (IEEE 802.3u, 100 Mbit/s) |
| Supported topologies | Star |
| Remote interface | Armon’aPlusª |
| Construction | |
| Dimensions | 483 x 44.5 x 358 mm 19.0 x 1.75 x 14.1 in |
| Weight | 7 Kg (15 lb) |
