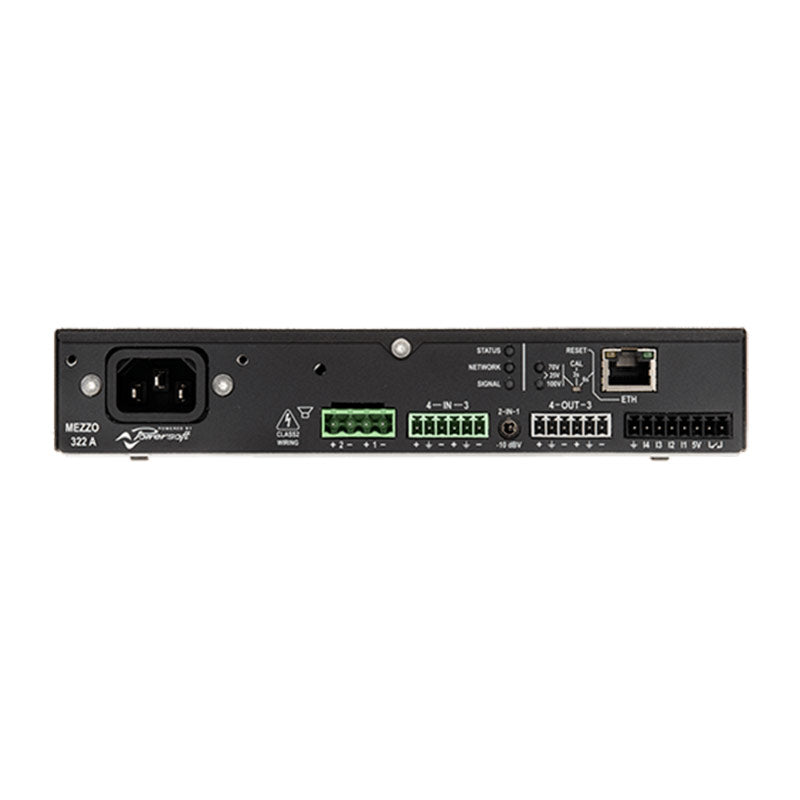

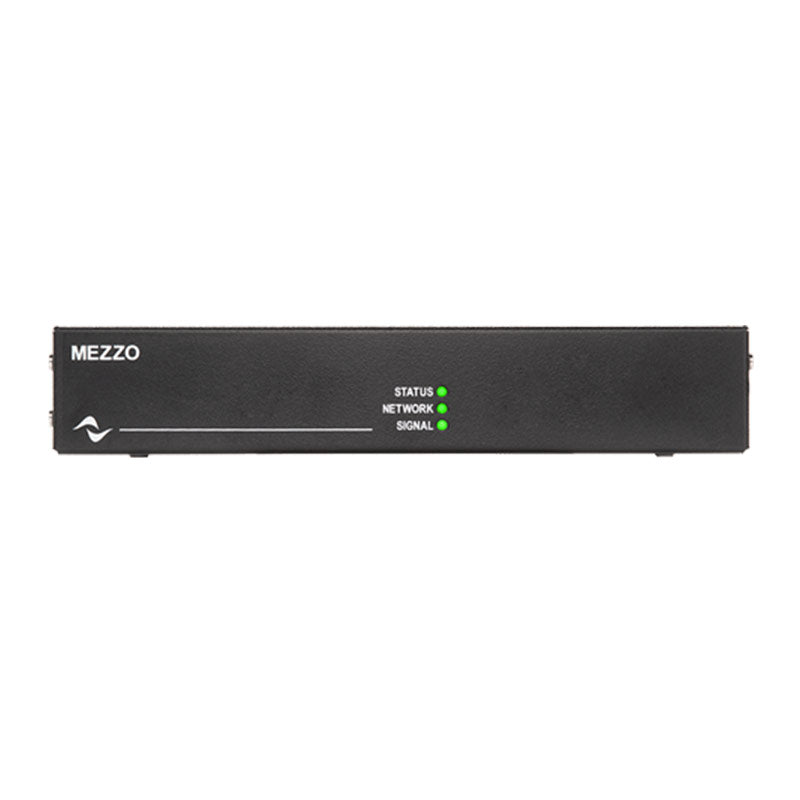

Powersoft Mezzo 322 A - 320-Watt 2-Channel Compact Amplifier with DSP


  • Dale #:

    POWS-322A
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

Mezzo 322 A heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Ultimately flexible, "A" versions of Mezzo offer remote control and monitoring of all the vital functions. The small form factor allows it to be mount... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Mezzo 322 A heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Ultimately flexible, "A" versions of Mezzo offer remote control and monitoring of all the vital functions. The small form factor allows it to be mounted anywhere thanks to the included mounting kit, the 320 W versions of Mezzo can also be mounted in air handling spaces, such as double ceilings or wall boxes. Two channel versions of Mezzo also feature 2 line level outputs, furtherly extending routing options.

Features:

  • Multiple mounting options
  • Auto-Setup
  • Power sharing
  • Full remote control via 3rd party controls

More +

Product Specs

General
Number of channels 2 (+2 line level outputs)
Output power
Single channel mode
Distributed line*
2 ?
4 ?
8 ?
16 ?
70V
100V
160 W
160 W
160 W
160 W
160 W
160 W
Max output voltage / current142 Vpeak / 15.6 Apeak
AC Main Power
Power supplyUniversal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement100-240 V ±10%, 50-60 Hz
Operating voltage90 V - 264 V
Power consuption**
115 V
230 V
Standby
2 W
2 W
Idle
14 W
14 W
AUDIO
Frequency response20 Hz - 20 kHz (±0.5 dB) @ 1 W, 8 ?
S/N ratio>105 dB (20 Hz - 20 kHz, A weighted)
Crosstalk separation-60 dB @ 1kHz
Input impedance10 k? to ground / 20 k? balanced
DSP
AD Converter24 Bit @ 48 kHz 125 dB-A Dynamic Range - 0.00x % THD+N
DA Converter24 Bit @ 48 kHz 115 dB-A Dynamic Range - 0.00x % THD+N
Input equalizerParametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop
CrossoverButterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 24 dB/oct (IIR)
Delay80 ms (per output) for time alignment
LimitersRMS voltage, Peak limiter
Construction
Dimensions (L x H x W)275 mm x 40 mm x 210 mm (10.8 in x 1.6 in x 8.3 in)
* Data is subject to change without notice.
