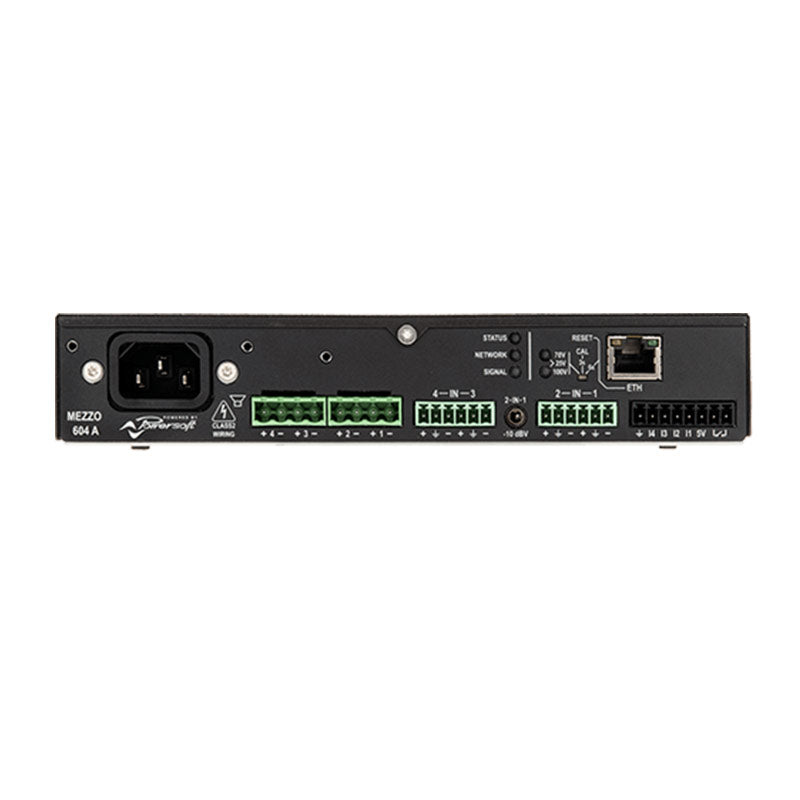

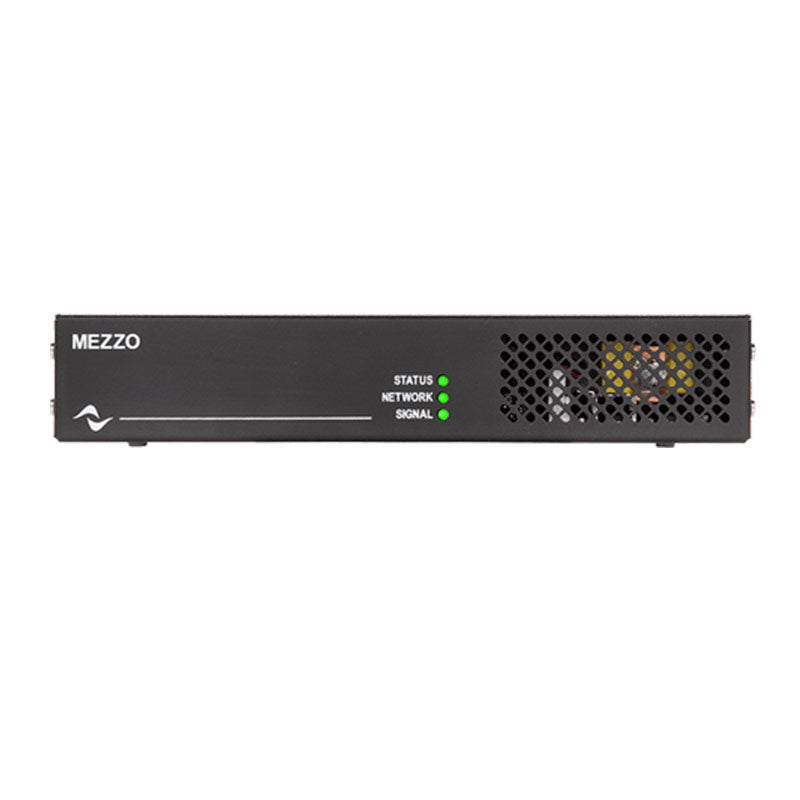

Powersoft Mezzo 604 A - 600-Watt 4-Channel Compact Amplifier with DSP


  • Dale #:

    POWS-604A
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Mezzo 604 A heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Ultimately flexible, "A" versions of Mezzo offer remote control and monitoring of all the vital functions. The small form factor allows it to be mount... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Mezzo 604 A heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Ultimately flexible, "A" versions of Mezzo offer remote control and monitoring of all the vital functions. The small form factor allows it to be mounted anywhere thanks to the included mounting kit.

Features:

  • Multiple mounting options
  • Auto-Setup
  • Power sharing
  • Full remote control via 3rd party controls

More +

Product Specs

General
Number of channels4
Output power
Single channel mode
Distributed line*
2 ?
4 ?
8 ?
16 ?
70V
100V
150 W
150 W
150 W
150 W
150 W
125 W
Max output voltage / current142 Vpeak / 15.6 Apeak
AC Main Power
Power supplyUniversal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement100-240 V ±10%, 50-60 Hz
Operating voltage90 V - 264 V
Power consuption**
115 V
230 V
Standby
2 W
2 W
Idle
18 W
18 W
AUDIO
Frequency response20 Hz - 20 kHz (±0.5 dB) @ 1 W, 8 ?
S/N ratio>102 dB (20 Hz - 20 kHz, A weighted)
Crosstalk separation-60 dB @ 1kHz
Input impedance10 k? to ground / 20 k? balanced
DSP
AD Converter24 Bit @ 48 kHz 125 dB-A Dynamic Range - 0.00x % THD+N
DA Converter24 Bit @ 48 kHz 115 dB-A Dynamic Range - 0.00x % THD+N
Internal precision32 bit floating point
Latency2.5 ms fixed latency architecture
Input equalizerParametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop
CrossoverButterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 24 dB/oct (IIR)
Delay80 ms (per output) for time alignment
LimitersRMS voltage, Peak limiter
Construction
Dimensions (L x H x W)275 mm x 40 mm x 210 mm (10.8 in x 1.6 in x 8.3 in)
* Data is subject to change without notice.
