Powersoft NOTA 142 - Compact PoE-Powered Install Amplifier
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
NOTA is an ultra compact, versatile PoE/PoE+ amplifier designed for networked AoIP applications where space and wiring constraints are a concern. Tailored for AV and IT system integrators, it offers an intuitive installation process with a single Ethernet cable for power and data. With its modular design and flexibility, NOTA seamlessly integrates into existing systems and expands them as needed, ensuring efficient operation in any networked environment.
Compact Design
With its small form factor, it seamlessly integrates into tight spaces and offers the flexibility to expand your system as it grows.
Easy Installation
PoE integration simplifies setup by delivering power and data over a single cable, reducing wiring complexity.
AES67 Support
Ensures high-quality AoIP integration, it can be installed in confined spaces without the risk of overheating.
USB Connectivity

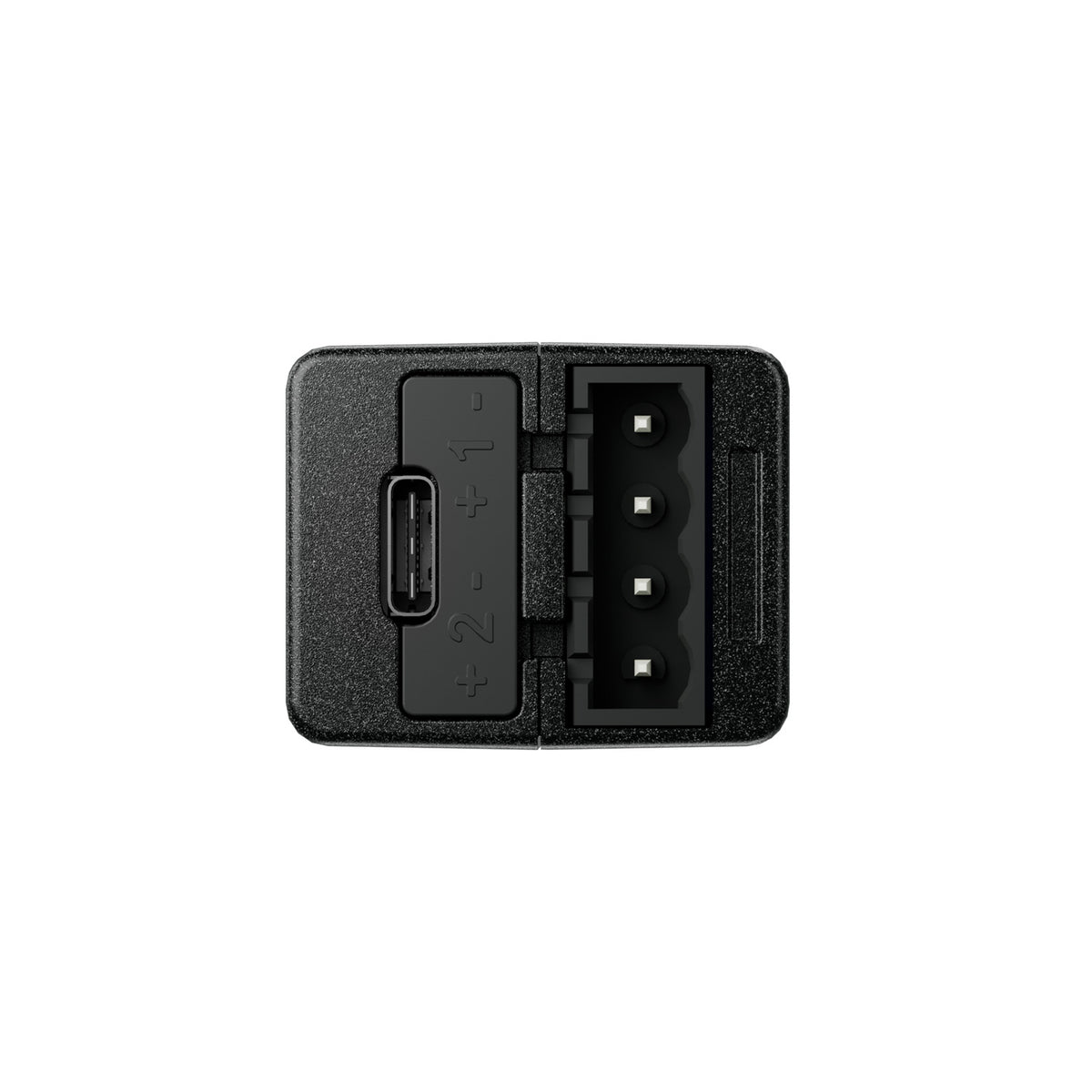

The USB-C port allows connectivity for external multimedia devices, while also acting as a USB to AES67 converter.
Built to Expand
Whether starting with a single zone or scaling up to large, complex installations, Nota is designed to grow with your needs. Its compact form and powerful performance allow it to seamlessly integrate into existing systems, providing flexibility for future expansion. Ideal for commercial and conferencing installations, it adapts effortlessly, ensuring both immediate and long-term scalability.
| Audio parameters | |
| Number of Output Channels | 2 |
| Rated power @ 4 Ω | 140 W |
| Power Source | PoE+ or PoE |
| Max output power, all channels driven (PoE+ / PoE) | |
| per channel @ 16 Ω (symmetrical) | 35 / 30 W |
| per channel @ 8 Ω (symmetrical) | 50 / 35 W |
| per channel @ 4 Ω (symmetrical) | 70 / 50 W |
| per channel @ 2 Ω (symmetrical) | 50 / 35 W |
| per channel @ 16 Ω (asymmetrical) | 40 / 35 W |
| per channel @ 8 Ω (asymmetrical) | 70 / 50 W |
| per channel @ 4 Ω (asymmetrical) | 110 / 75 W |
| per channel @ 2 Ω (asymmetrical) | 80 / 55 W |
| Frequency Response | 10Hz – 22KHz |
| THD+N (from 0.1 W to Half Power) | <0.05% |
| Dynamic Range | -115 dB(A) |
| Environment | |
| Operating temperature | 0°C - 35°C |
| Humidity | 90% not condensing |
| IP Class | 40 |
| DSP | |
| DA Converters | 24 Bit @ 48 kHz |
| Dynamic Range | 115 dB-A |
| Internal precision | 32 bit floating point |
| Latency | <10 ms |
| EQ | parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass |
| Crossover | Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR) |
| Limiters | RMS voltage, Peak limiter |
| Input Delay | 0-100 ms |
| Output Delay | 0-10 ms |
| Startup time | 1.1 ms |
| Power Supply | PoE/PoE+ 57-44 V |
| Max continuous current drawn | 600 mA |
| Efficiency | ≥75% |
| Mechanical parameters | |

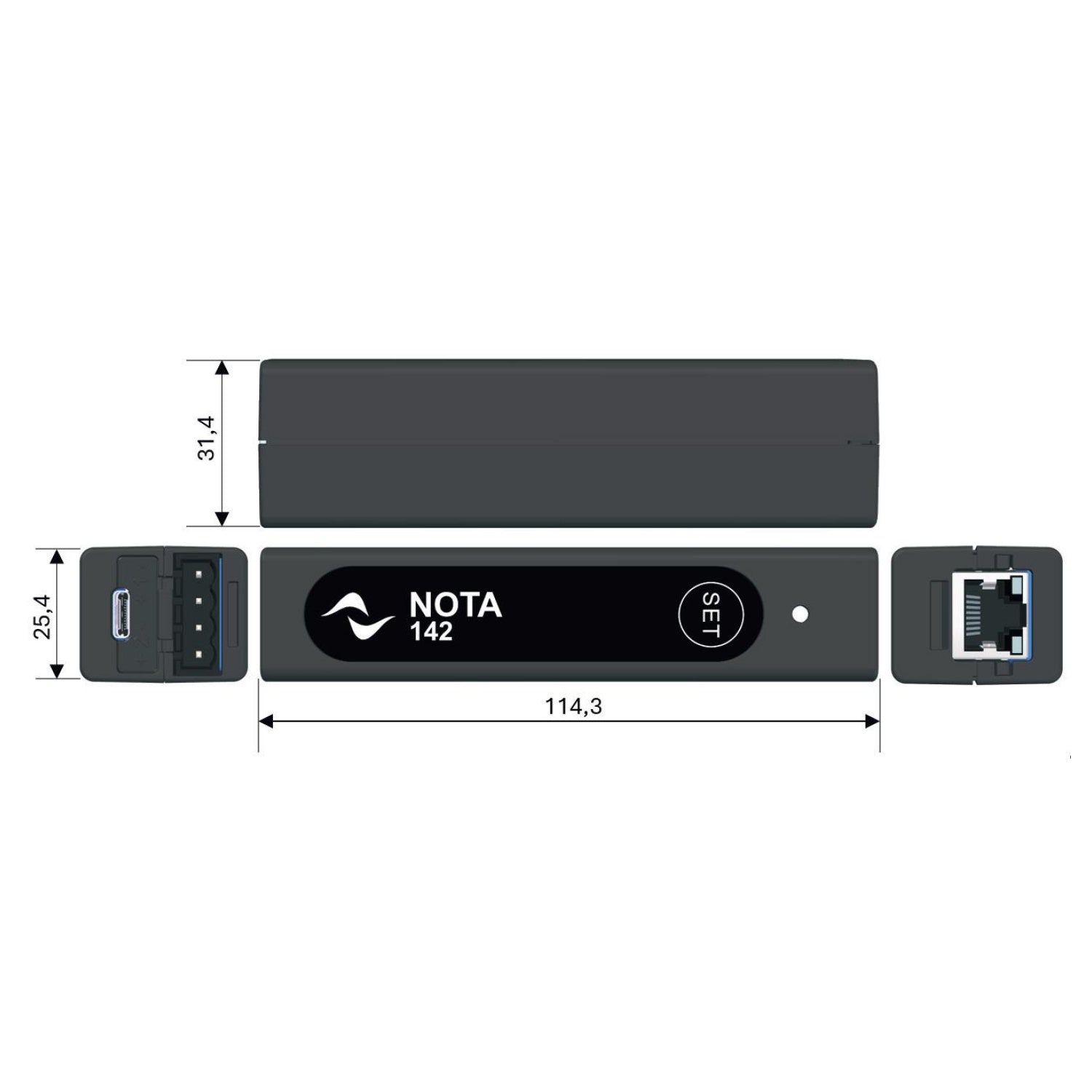

| Nominal Size (D x W x H) | 115 x 25.4 x 31.4 (WxDxH) mm 4.5 x 1 x 1.2 (WxDxH) in |
| Weight | 198 g 0.43 lb |
NOTA is an ultra compact, versatile PoE/PoE+ amplifier designed for networked AoIP applications where space and wiring constraints are a concern. Tailored for AV and IT system integrators, it offers an intuitive installation process with a single Ethernet cable for power and data. With its modular design and flexibility, NOTA seamlessly integrates into existing systems and expands them as needed, ensuring efficient operation in any networked environment.
Compact Design
With its small form factor, it seamlessly integrates into tight spaces and offers the flexibility to expand your system as it grows.
Easy Installation
PoE integration simplifies setup by delivering power and data over a single cable, reducing wiring complexity.
AES67 Support
Ensures high-quality AoIP integration, it can be installed in confined spaces without the risk of overheating.
USB Connectivity
The USB-C port allows connectivity for external multimedia devices, while also acting as a USB to AES67 converter.
Built to Expand
Whether starting with a single zone or scaling up to large, complex installations, Nota is designed to grow with your needs. Its compact form and powerful performance allow it to seamlessly integrate into existing systems, providing flexibility for future expansion. Ideal for commercial and conferencing installations, it adapts effortlessly, ensuring both immediate and long-term scalability.
| Audio parameters | |
| Number of Output Channels | 2 |
| Rated power @ 4 Ω | 140 W |
| Power Source | PoE+ or PoE |
| Max output power, all channels driven (PoE+ / PoE) | |
| per channel @ 16 Ω (symmetrical) | 35 / 30 W |
| per channel @ 8 Ω (symmetrical) | 50 / 35 W |
| per channel @ 4 Ω (symmetrical) | 70 / 50 W |
| per channel @ 2 Ω (symmetrical) | 50 / 35 W |
| per channel @ 16 Ω (asymmetrical) | 40 / 35 W |
| per channel @ 8 Ω (asymmetrical) | 70 / 50 W |
| per channel @ 4 Ω (asymmetrical) | 110 / 75 W |
| per channel @ 2 Ω (asymmetrical) | 80 / 55 W |
| Frequency Response | 10Hz – 22KHz |
| THD+N (from 0.1 W to Half Power) | <0.05% |
| Dynamic Range | -115 dB(A) |
| Environment | |
| Operating temperature | 0°C - 35°C |
| Humidity | 90% not condensing |
| IP Class | 40 |
| DSP | |
| DA Converters | 24 Bit @ 48 kHz |
| Dynamic Range | 115 dB-A |
| Internal precision | 32 bit floating point |
| Latency | <10 ms |
| EQ | parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass |
| Crossover | Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR) |
| Limiters | RMS voltage, Peak limiter |
| Input Delay | 0-100 ms |
| Output Delay | 0-10 ms |
| Startup time | 1.1 ms |
| Power Supply | PoE/PoE+ 57-44 V |
| Max continuous current drawn | 600 mA |
| Efficiency | ≥75% |
| Mechanical parameters | |
| Nominal Size (D x W x H) | 115 x 25.4 x 31.4 (WxDxH) mm 4.5 x 1 x 1.2 (WxDxH) in |
| Weight | 198 g 0.43 lb |
