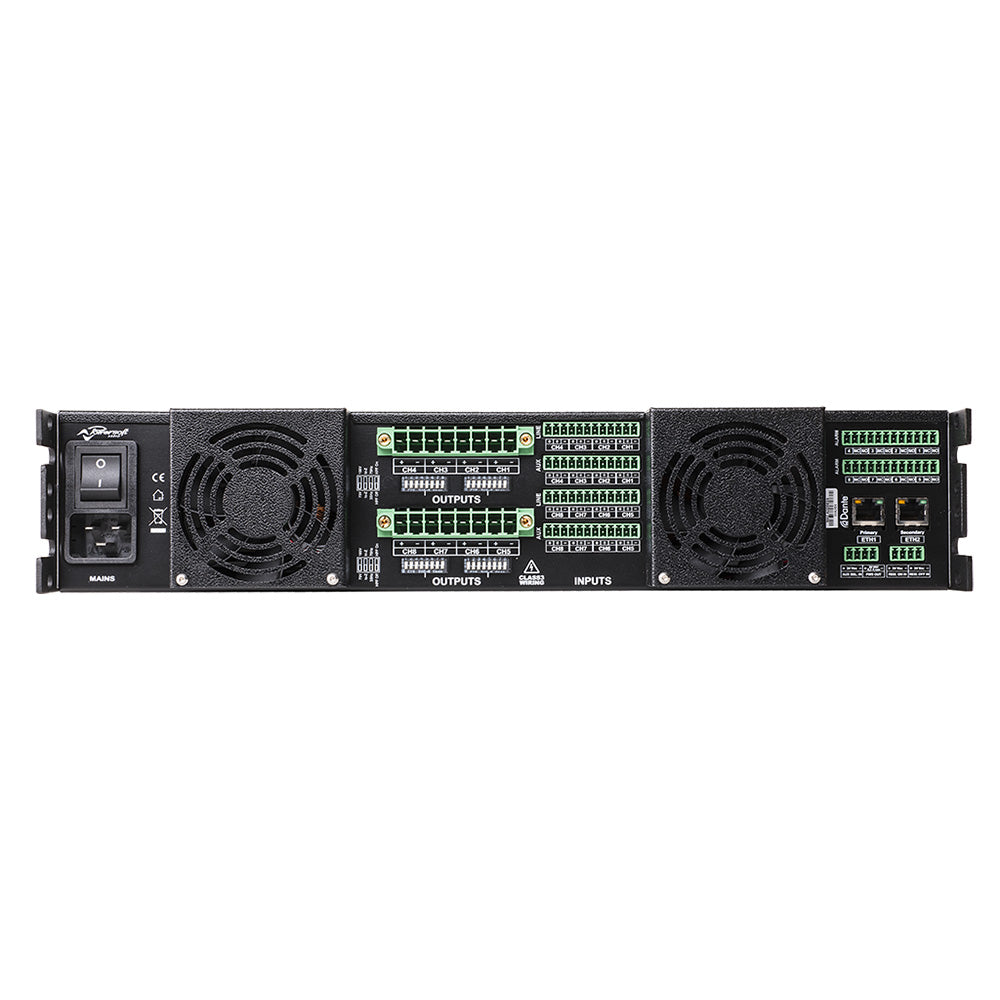

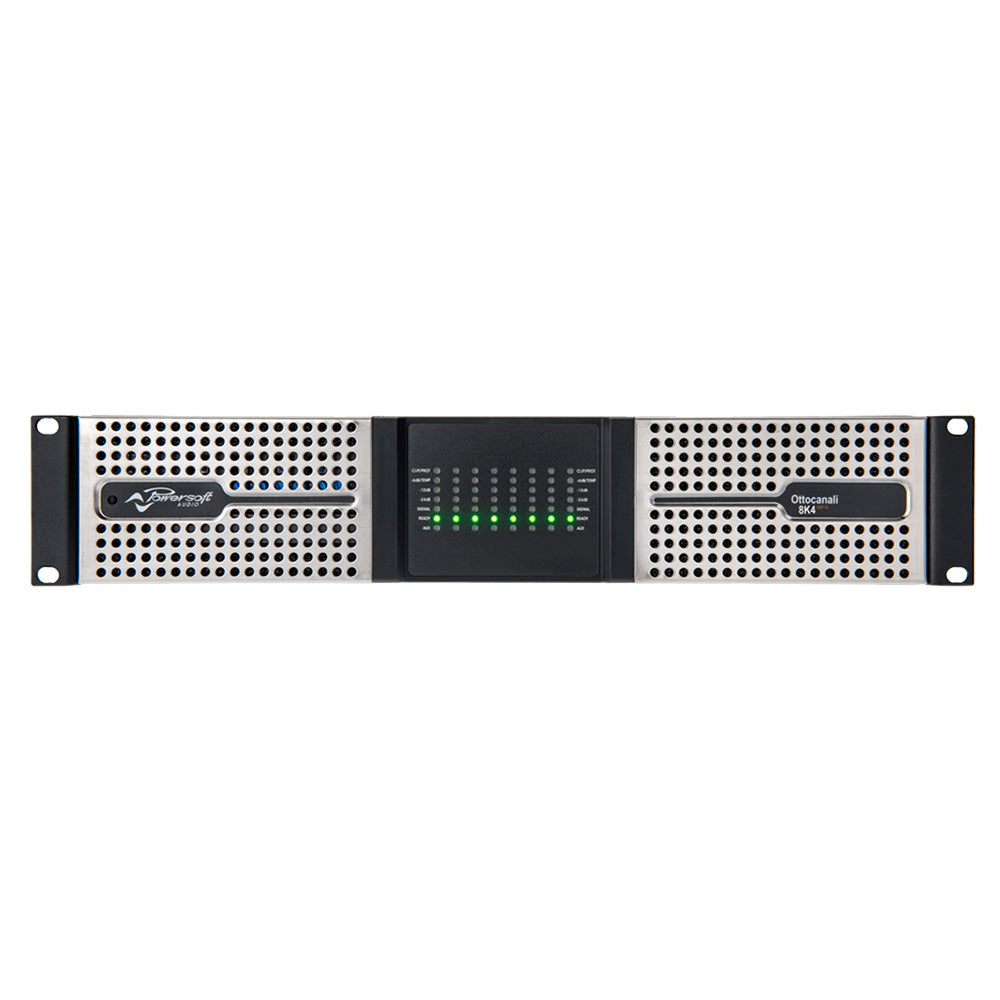

Powersoft Ottocanali 8K4 DSP+D - 8-Channel Install Power Amplifier with DSP and Dante
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Ottocanali 8K4 DSP+D is a flexible and reliable 8-channel power amplifier with up to a total of 8,000 W at 4Ω, ideal for multi-zone applications in medium to large-scale installs: Ottocanali 8K4 DSP+D supports any combination of lo-Z loudspeakers, mono-bridgeable channel pairs and 70V/100V Hi-Z distributed lines with no need for output step-up transformers. The Ottocanali 8K4 DSP+D features switchable main/aux signal inputs and offers a wide range of system control, alarms, GPI/O and monitoring functions as well as sound shaping options.
The Ottocanali 8K4 DSP+D implements universal switch mode power supplies with PFC and patented SRM (Smart Rails Management) technology maximizing reliability and efficiency and reducing power consumption.
New Ottocanali 8K4 DSP+D heralds new and innovative level of signal processing. Providing flexible routing and mixing, multi-stage equalization with raised-cosine, IIR and FIR filters, delay up to 2 s in input processing and 100 ms for time alignment, gain and polarity adjustment, crossover, peak limiters, TruePower™ limiters and Active DampingControl™.
Powersoft's legendary efficiency saves valuable energy, keeping both operational cost and carbon footprint at a minimum: the Ottocanali 8K4 DSP+D shines with outstandingly low power consumption and heat dissipation. This dramatically reduces costs from the AC mains supply and air conditioning/cooling systems – not to mention the benefits to the environment for a greener planet.
MyPowersoft services are available for this product.
Features:
Power supply
- Universal switch mode power supply up to 400VAC tolerant with Power Factor Correction
- Patented output filter with ripple cancellation network
- Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
- Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
Protections
Fully protected circuit design with:- Ac protection: shut down power supply when AC mains voltage is outside operating range
- Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
- DC protection: protects against infrasonic signal at the outputs
- VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
- Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
- Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
- Thermal protection: output stages operating temperature up to 80 °C (176 °F)
- Temperature controlled continuous variable speed fan, front to back airflow
General
- Fixed frequency switch mode output stage for high grade sound accuracy
- All models 2 RU for reduced rack cost and space
- Light weight - for easier racking and shipping: 14 kg / 30.8 lbs
- Standard Phoenix connectors: analog and digital input, audio outputs, aux supply, alarms and GPIO
- Remotely switchable double input
Loudspeaker system configuration
- Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
- Switchable 35Hz / 70Hz high pass filter per channel
- Mixed configuration with Lo-Z/Hi-Z systems possible
- Bridged mode, with low impedance, per channel pair
Processing
- TI C6000 DSP platform architecture
- AD/DA converter: dual 24bit @ 96 kHz Tandem® architecture, 127 dB dynamic range, per channel
- Input/output independent equalizers per channel providing Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
- Crossovers: linear phase (FIR), hybrid (FIR-IIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
- Input delay up to 2s and output delay up to 100ms for time alignment per channel
- Active DampingControl™ for cable compensation
- Power limiter (TruePower™, RMS voltage, RMS current) + Peak Limiter
Alarms and GPIO
- Configurable alarm contact NC/NO per channel
- Remote AUX input/MAIN input switch
- Remote ON/OFF switch
- PWS OUT connector providing up to 24VDC
Remote management
- Control and monitoring through ArmoníaPlus
| Channel Handling | |
| Number of output channels | 8 Hi-Z or Lo-Z (bridgeable per ch. pair) 2x 8 Pin Phoenix DFK-PC 4/8-G-7.62 |
| Number of input channels | 4 Analog 8 Main Line, 12 Pin Phoenix, MC 1.5/12-ST-3.81 8 AUX, 12 Pin Phoenix, MC 1.5/12-ST-3.81 16 Dante 2 x RJ45 |
| Audio | |
| Gain | 32 dB |
| Input sensitivity @ 8 ½, 26 dB Gain | 1.94 V/ +8 dB |
| S/N (20 Hz - 20 kHz @ 8 ½) | >106 dB (A) |
| Max input level | 6V / +17.8 dBu |
| Frequency Response ( ±0.5 dB , 1 W @ 8 ½) | 20 Hz - 20 kHz |
| Crosstalk (1 kHz) | -65 dB |
| Input impedance | 20 k½ balanced |
| THD+N (from 0.1 W to Full Power) | < 0.08% (typical < 0.05%) |
| DIM (from 0.1 W to Full Power) | < 0.8% |
| Slew Rate (input filter bypassed @ 8 ½) | > 50 V/µs |
| Damping Factor @ 8 ½, 20 Hz - 100 Hz | > 1000 |
| DSP | |
| AD converters | 24 Bit Tandemª @ 48 kHz 125 dB-A Dynamic Range - 0.005 % THD+N |
| DA converters | 24 Bit Tandemª @ 48 kHz 117 dB-A Dynamic Range - 0.003 % THD+N |
| Sample rate converter | 24 Bit @ 44.1 kHz to 192 kHz 140 dB Dynamic Range - 0.0001 % THD+N |
| Internal precision | 40 bit floating point |
| Delay | 2 s (input) + 100 ms (output) for time alignment |
| Equalizer | Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass |
| Crossover | linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR) |
| Limiters | TruePowerª, RMS voltage, RMS current, Peak limiter |
| Damping control | Active DampingControlª and LiveImpedanceª measurement |
| Networking | |
| Standards compliance | auto-sensing Fast Ethernet (IEEE 802.3u, 100 Mbit/s) |
| Supported topologies | Star |
| Remote interface | Armon’aPlusª |
| Output Stage | |
| Maximum output power per channel @ 8 ½ | 600 W |
| Maximum output power per channel @ 4 ½ | 1000 W |
| Maximum output power per channel @ 2 ½ | 850 W |
| Maximum output power @ 4 ½ Bridged, channel pair | 2000 W |
| Maximum output power @ 8 ½ Bridged, channel pair | 1700 W |
| Maximum output power @ Hi-Z distributed line 100 V | 1000 W |
| Maximum output power @ Hi-Z distributed line 70 V | 1000 W |
| Maximum unclipped output voltage @ 8 ½ | 90 V peak |
| Maximum output current | 23 A peak |
| Power / Thermal | |
| Idle | Power: 74 W Current Draw: 0.85 A rms |
| 1/8 Power @ 4 Ohm | Power: 1425 W Current Draw: 12.6 A rms |
| Power supply | Redundant Universal, regulated switch mode with PFC (Power Factor Correction) |
| Power factor (> 500 W ouput) | > 0.95 |
| Operating Voltage | 60-264 V (with reduced power below 90 V) |
| AC Mains connector | IEC C20 inlet (20 A max), region-specific power cord provided |
| Thermal | |
| Operating temperature | 0¡ - 35¡ C / 32¡ - 95¡ F |
| Cooling | Fan, variable speed, temperature controlled, front to rear airflow |
| Thermal dissipation @ 115 V | Idle: 253 BTU/h, 64 kcal/h 1/8 Max Output Power @ 4 ½: 1480 BTU/h, 373 kcal/h 1/4 Max Output Power @ 4 ½: 2792 BTU/h, 704 kcal/h |
| Construction | |
| Dimensions | 483 x 44.5 x 358 mm 19.0 x 1.75 x 14.1 in |
| Weight | 6.8 Kg (15 lb) |
