Powersoft T604 A - Four-Channel High-Performance Power Amplifier with DSP
Sale price$5,201.00
Description
The T Series is a very flexible and cost-effective amplifier platform with loudspeaker processor.
All models deliver the same high peak voltage allowing high SPL with single 8/16 ohm cabinets on all models. The high voltage is also good for sharing power between the channels for applications such as bi-amped loudspeakers or subwoofers with passive tops.
Features:
- The loudspeaker processing sets a new benchmark for cost-effective amplification for small and medium-sized systems and stage monitors. The T Series can be controlled and configured in different ways.
- Full control with a PC running Armonía.

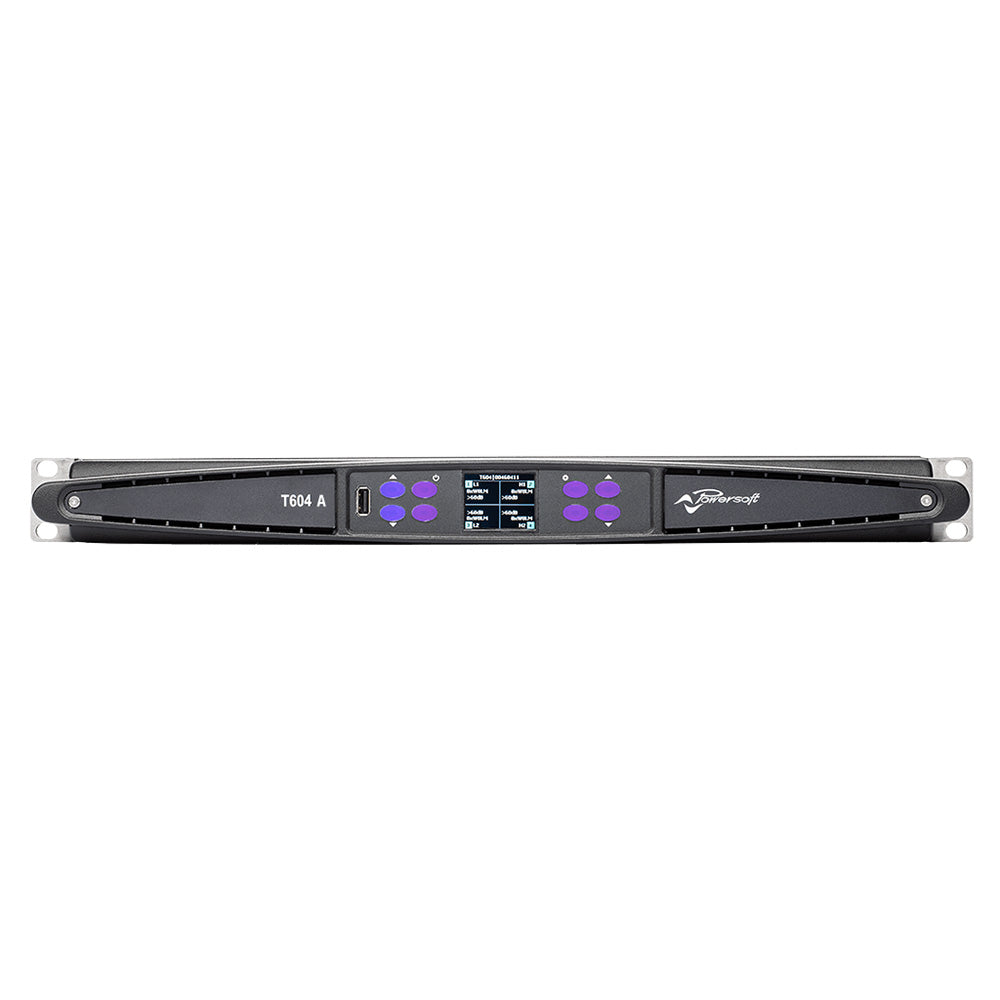

- Control from the front panel display for features like preset recall (also per output), gain, delay, mute. This makes it very easy to use for small systems in a rental company. The display also shows the available headroom with easy to read numbers in dB as well as other status monitoring parameters.
- Web app. Use any device with a browser (e.g. a tablet) and access the amplifier via an external WiFi access point for easy control.
- Group controllable advanced EQ with raised cosine filters
- Large preset library
- Preset compatibility with X Series
- Very long FIR filters (42.6 ms)
- Control and monitoring through ArmoníaPlus

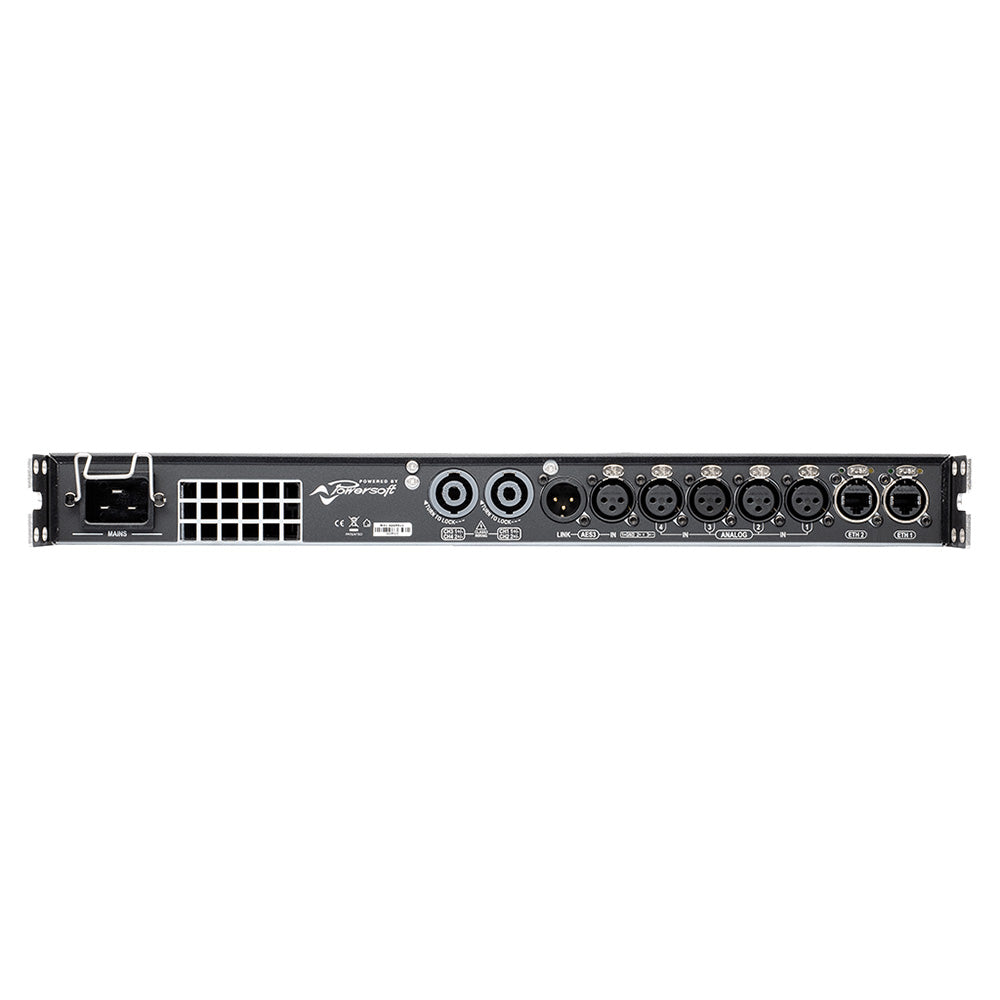

| Number of output channels | 4 (2 Speakon NL4) (bridgeable per channel pair) |
| Number of input channels | Analog: 4 XLR (female) Digital: AES3 - 1 XLR (female), LINK - 1 XLR (male) |
| Audio | |
| Input sensitivity @ 8 ? | 2.57 V rms |
| S/N (20 Hz - 20 kHz @ 8 ?, Typ.) | 110 dB(a) |
| Max input level | 24 dBu |
| Frequency Response | 20 Hz - 20 kHz +/-0.5 dB |
| Crosstalk (1 kHz) | <-70 dB |
| Input impedance | 20k? Balanced |
| CMRR | >65 dB |
| THD+N (from 0.1 W to Half Power) | < 0.1% (typical < 0.05%) |
| SMPTE IMD (from 0.1 W to Half Power) | < 0.1% (typical < 0.05%) |
| Output impedance at 100 Hz | 26 m? |
| DSP | |
| AD converters | 24 Bit Tandemª @ 48 kHz 125 dB-A Dynamic Range - 0.005 % THD+N |
| DA converters | 24 Bit Tandemª @ 48 kHz 117 dB-A Dynamic Range - 0.003 % THD+N |
| Sample rate converter | 24 Bit @ 96 kHz 140 dB Dynamic Range - 0.0001 % THD+N |
| Internal precision | 32 bit floating point |
| Latency | 2.5 ms fixed latency architecture |
| Memory/Presets | 256 MB (RAM) plus 512 MB flash for presets |
| Delay | 2 s (input) + 100 ms (output) for time alignment |
| Equalizer | Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass |
| Crossover | linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR) |
| Limiters | TruePowerª, RMS voltage, RMS current, Peak limiter |
| Damping control | Active DampingControlª and LiveImpedanceª measurement |
| Display Panel | |
| Display | 1.8Ó Colour TFT, 160x128 pixels, 600 nits |
| Control | 8 pushbuttons with RGB backlight |
| Extra | USB port for external memory |
| Maximum output power | |
| per channel @ 8 ? (symmetrical) | 1250 W |
| per channel @ 4 ? (symmetrical) | 1500 W |
| per channel @ 2 ? (symmetrical) | 1500 W |
| per channel @ 8 ? (asymmetrical) | 1250 W |
| per channel @ 4 ? (asymmetrical) | 2100 W |
| per channel @ 2 ? (asymmetrical) | 1600 W |
| @ 4 ? Bridged | 3000 W |
| @ 8 ? Bridged | 3000 W |
| Maximum unclipped output voltage | 145 V peak |
| Maximum output current | 50 A peak |
| Power / Thermal | |
| Standby Power | 15 W |
| Idle Power | 32 W |
| 1/8 Power @ 4? | Power: 1054 W Current Draw: 9.5 A rms Thermal Loss: 1039 BTU/h |
| Power supply | Universal regulated switch mode with PFC, SRM |
| Nominal voltage (±10%) | 100-240 VAC @ 50-60Hz |
| Operating Voltage | 90-264 VAC @ 50/60 Hz |
| AC Mains connector | IEC C20 inlet (20 A max) region-specific power cord provided |
| Networking | |
| Standards compliance | auto sensing Gigabit Ethernet IEEE 802.3ab |
| Supported topologies | Daisy chain, Star |
| Remote interface | Armon’aPlusª |
| Construction | |
| Dimensions | 484 x 405 x 44.5 mm (19 x 16 x 1.75 in) |
| Weight | 7.5 kg |
