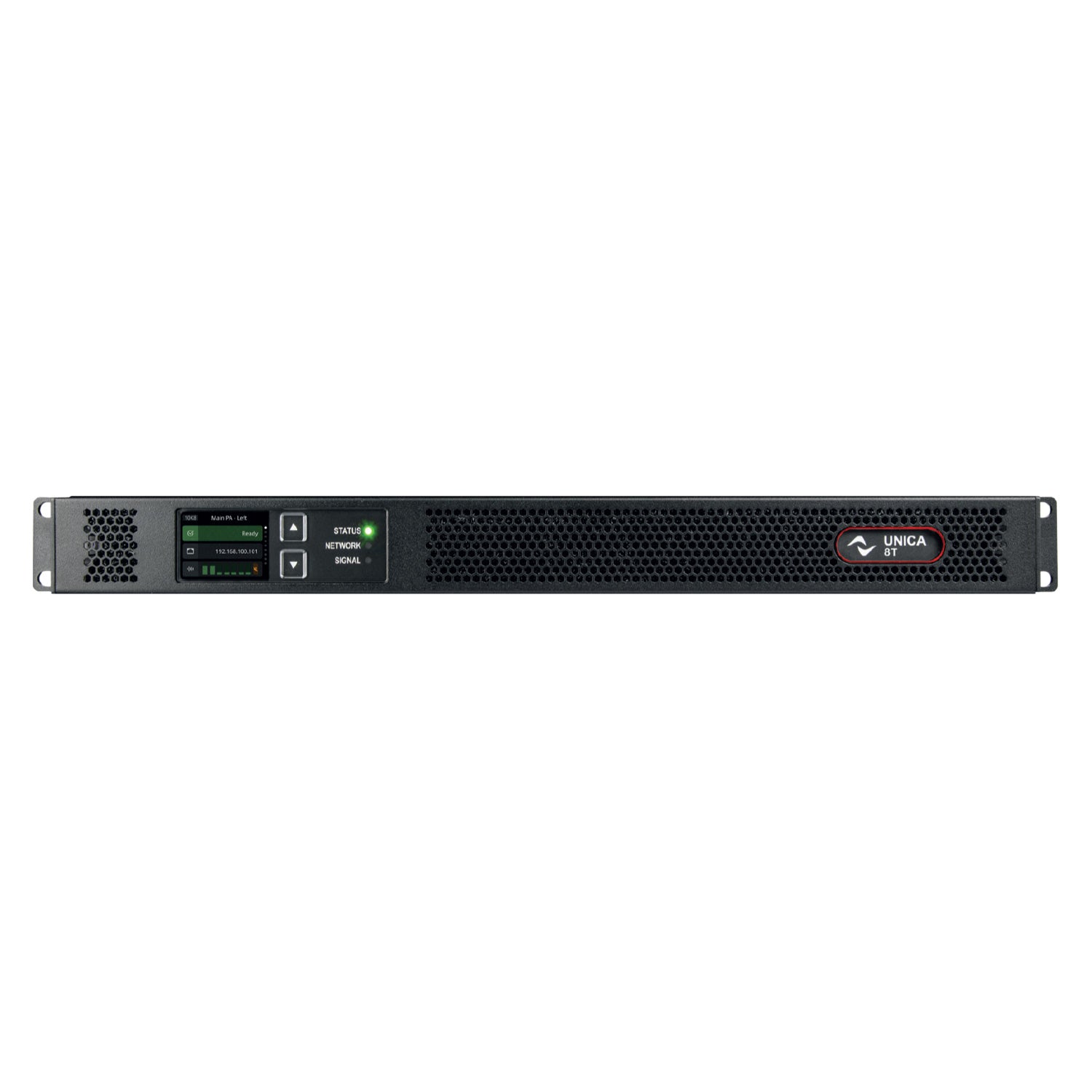

Powersoft Unica 8T 10K8 - 10000W 8-Channel Cloud-Based Amplifier Platform
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Unica T amplifier platform is designed to deliver top-tier performance in the most demanding live applications. With an ultra-compact 1RU form factor and exceptional power density, it reduces operational costs and streamlines setup times in touring environments. Its third-generation architecture, shared across the Unica platform, ensures reliability and future-proof operation, setting a new benchmark for live sound amplification. Unica T is the ideal choice for rental companies seeking superior sound quality and maximum efficiency.
Sound Quality
Powersoft’s 3rd generation architecture ensures exceptional sound quality, boasting newly designed input and output sections for the highest signal-to-noise ratio (116 dBA) among Powersoft amplifiers. The studio-grade insulated analog inputs provide outstanding immunity to noise coupling, allowing extraordinary common mode interference and abuse tolerance on the analog input lines, up to 100 VRMS (pat. pending).
Streamlined Operations
With an 8-channel model delivering up to 10 kW and a 4-channel model capable of harnessing a phenomenal 20.8 kW in a single rack unit, extreme power sharing capabilities, and featuring comprehensive processing, Unica T optimizes rental companies’ operations by simplifying their catalog, benefitting everything from efficient and effective deployment to logistics and warehousing.
Build Quality
Unica T is built and field-tested to thrive in the most demanding touring conditions. Made to last as all its predecessors, its rugged construction and patent-pending connectors’ shields are a testament to Powersoft’s experience building some of the most reliable and lasting tour-grade amplifiers in the market.
Time Saver
The Euroblock connectors are ruggedized through a patent-pending shield that takes less space and time to fit on the amplifier than those traditionally employed and are perfect for use both as cable-ends terminations or in break-out boxes.
Straightforward maintenance
Warehouse operations and regular maintenance are simple. The design of the front grille allows quick cleaning of the air filter. In the unlikely event of a malfunction, downtime is kept to a minimum through Easy Swap. This automatic USB backup system allows nearly on-the-fly replacement of the unit.
Simplified Control
The UI has been redesigned with touring operations in mind, allowing access to the most relevant parameters and commands. The full display blinks for quick identification of the amplifier, and the LEDs provide at-a-glance feedback on the Status, Network, and Signal statuses. The configurable GPIOs allow maximum flexibility for interfacing with third-party processors and monitoring systems.
| Channel Handling | |
| Number of output channels | 8 (bridgeable per ch. pair) Phoenix PC 5/8-STF1-7,62 (with patent pending shells) |
| Number of input channels | Analog: 8, Phoenix MC 1,5/6-ST-3,81 (with patent pending shells) Dante/AES67: 8, 3 x RJ45 |
| Audio | |
| Default gain | 32 dB |
| Input sensitivity | 3.9 Vrms 14 dBu |
| Output noise floor (Analog Input) | -72 dBV(A) typical |
| SNR (Analog Input) | 116 dB(A) |
| Output noise floor (Dante Input) | -76 dBV(A) typical |
| SNR (Dante Input) | 120 dB(A) |
| Max input level | +24 dBu |
| Frequency Response | 20 Hz - 20 kHz +0.0 dB/-1.0 dB, @ 8 Ω |
| Crosstalk | -80dB typical, 20Hz to 1 kHz range -60dB @20kHz typical |
| Input impedance | 20 kΩ balanced/unbalanced, fully floating |
| THD+N (from 0.1 W to Half Power) | 0.05% |
| SMPTE IMD (from 0.1 W to Half Power) | 0.01% |
| Damping factor | 2500 20Hz to 500 Hz |
| DSP | |
| AD converters | 24 Bit Tandem™ @ 48 kHz |
| Dynamic Range | 130 dB(A) - 0.00005 % THD+N |
| DA converters | 24 Bit Tandem™ @ 48 kHz |
| Dynamic Range | 132 dB(A) - 0.00003 % THD+N |
| Latency | 2.5 ms analog Input to amplifier Output |
| Onboard memory | Store and recall up to 50 amplifier snapshot |
| Delay | 2 s (input) + 100 ms (output) for time alignment |
| Equalizer | Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass |
| Crossover | linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR) |
| Limiters | RMS voltage, RMS current, Peak limiter, TruePower™, Dynamic EQ |
| Damping control | Active DampingControl™ |
| Loudspeaker diagnostic | Pilot tone monitoring, average impedance monitoring, load impedance measurement |
| Startup time | 10 s 0.5 s (with PoE backup power) |
| Construction | |
| Dimensions | 489 x 400 x 44.3 (WxDxH) mm 19.3 x 15.8 x 1.7 (WxDxH) in |
| Weight | 8 Kg (17.6 lb) |
| IP Class | IP 20 |
| Environmental | |
| Operating temperature range | 0°C to +50°C (derating above 35°C) |
| Storage relative humidity range | 10% to 85% humidity (non condensing) |
| Output Stage | |
| Commercial total rated power @ 2.7 Ω full load | 10000 W |
| Maximum output power (all channels driven symetrically) | |
| per channel @ 16 Ω (symmetrical) | 750 W |
| per channel @ 8 Ω (symmetrical) | 1000 W |
| per channel @ 4 Ω (symmetrical) | 1200 W |
| per channel @ 2.7 Ω (symmetrical) | 1250 W |
| per channel @ 2 Ω (symmetrical) | 1250 W |
| per bridged pair @ 8 Ω (symmetrical) | 2400 W |
| per bridged pair @ 5.4 Ω (symmetrical) | 2500 W |
| per channel @ 16 Ω (asymmetrical) | 750 W |
| per channel @ 8 Ω (asymmetrical) | 1500 W |
| per channel @ 4 Ω (asymmetrical) | 2900 W |
| per channel @ 2.7 Ω (asymmetrical) | 2400 W |
| per channel @ 2 Ω (asymmetrical) | 2400 W |
| Maximum unclipped output voltage | 160 V peak |
| Maximum output current | 48 A peak |
| Power / Thermal @ 120 V | |
| Idle | Input Power: 101.8 W Current Draw: 1.06 A rms Thermal Loss: 347 BTU/h |
| 1/8 Max Power @ 4Ω | Input Power: 1707 W Current Draw: 14.57 A rms Thermal Loss :1849 BTU/h |
| Power supply | Universal regulated switch mode with PFC and SRM |
| Nominal Voltage | 100-240 VAC @ 50/60 Hz (400 VAC surge) |
| Operating Voltage | 80-265 VAC @ 50/60 Hz |
| Supply tolerance | +10% -10% |
| Power system | TT/TN |
| Overvoltage category | II |
| Class of equipment | I |
| AC Mains connector | IEC C20 inlet (20 A max), region-specific power cord provided |
| Eco Mode consumption | 35 W |
| Standby consumption | 20 W Typical, CPU fully functional |
| PoE Input | Class 4 or higher |
| Networking | |
| Network | 3 x Gigabit Ethernet ports RJ45 connectors |
| Network modes | Switched Mode, Split-Redundant Mode |
| Remote interface | ArmoníaPlus™, Powersoft Cloud |
The Unica T amplifier platform is designed to deliver top-tier performance in the most demanding live applications. With an ultra-compact 1RU form factor and exceptional power density, it reduces operational costs and streamlines setup times in touring environments. Its third-generation architecture, shared across the Unica platform, ensures reliability and future-proof operation, setting a new benchmark for live sound amplification. Unica T is the ideal choice for rental companies seeking superior sound quality and maximum efficiency.
Sound Quality
Powersoft’s 3rd generation architecture ensures exceptional sound quality, boasting newly designed input and output sections for the highest signal-to-noise ratio (116 dBA) among Powersoft amplifiers. The studio-grade insulated analog inputs provide outstanding immunity to noise coupling, allowing extraordinary common mode interference and abuse tolerance on the analog input lines, up to 100 VRMS (pat. pending).
Streamlined Operations
With an 8-channel model delivering up to 10 kW and a 4-channel model capable of harnessing a phenomenal 20.8 kW in a single rack unit, extreme power sharing capabilities, and featuring comprehensive processing, Unica T optimizes rental companies’ operations by simplifying their catalog, benefitting everything from efficient and effective deployment to logistics and warehousing.
Build Quality
Unica T is built and field-tested to thrive in the most demanding touring conditions. Made to last as all its predecessors, its rugged construction and patent-pending connectors’ shields are a testament to Powersoft’s experience building some of the most reliable and lasting tour-grade amplifiers in the market.
Time Saver
The Euroblock connectors are ruggedized through a patent-pending shield that takes less space and time to fit on the amplifier than those traditionally employed and are perfect for use both as cable-ends terminations or in break-out boxes.
Straightforward maintenance
Warehouse operations and regular maintenance are simple. The design of the front grille allows quick cleaning of the air filter. In the unlikely event of a malfunction, downtime is kept to a minimum through Easy Swap. This automatic USB backup system allows nearly on-the-fly replacement of the unit.
Simplified Control
The UI has been redesigned with touring operations in mind, allowing access to the most relevant parameters and commands. The full display blinks for quick identification of the amplifier, and the LEDs provide at-a-glance feedback on the Status, Network, and Signal statuses. The configurable GPIOs allow maximum flexibility for interfacing with third-party processors and monitoring systems.
| Channel Handling | |
| Number of output channels | 8 (bridgeable per ch. pair) Phoenix PC 5/8-STF1-7,62 (with patent pending shells) |
| Number of input channels | Analog: 8, Phoenix MC 1,5/6-ST-3,81 (with patent pending shells) Dante/AES67: 8, 3 x RJ45 |
| Audio | |
| Default gain | 32 dB |
| Input sensitivity | 3.9 Vrms 14 dBu |
| Output noise floor (Analog Input) | -72 dBV(A) typical |
| SNR (Analog Input) | 116 dB(A) |
| Output noise floor (Dante Input) | -76 dBV(A) typical |
| SNR (Dante Input) | 120 dB(A) |
| Max input level | +24 dBu |
| Frequency Response | 20 Hz - 20 kHz +0.0 dB/-1.0 dB, @ 8 Ω |
| Crosstalk | -80dB typical, 20Hz to 1 kHz range -60dB @20kHz typical |
| Input impedance | 20 kΩ balanced/unbalanced, fully floating |
| THD+N (from 0.1 W to Half Power) | 0.05% |
| SMPTE IMD (from 0.1 W to Half Power) | 0.01% |
| Damping factor | 2500 20Hz to 500 Hz |
| DSP | |
| AD converters | 24 Bit Tandem™ @ 48 kHz |
| Dynamic Range | 130 dB(A) - 0.00005 % THD+N |
| DA converters | 24 Bit Tandem™ @ 48 kHz |
| Dynamic Range | 132 dB(A) - 0.00003 % THD+N |
| Latency | 2.5 ms analog Input to amplifier Output |
| Onboard memory | Store and recall up to 50 amplifier snapshot |
| Delay | 2 s (input) + 100 ms (output) for time alignment |
| Equalizer | Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass |
| Crossover | linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR) |
| Limiters | RMS voltage, RMS current, Peak limiter, TruePower™, Dynamic EQ |
| Damping control | Active DampingControl™ |
| Loudspeaker diagnostic | Pilot tone monitoring, average impedance monitoring, load impedance measurement |
| Startup time | 10 s 0.5 s (with PoE backup power) |
| Construction | |
| Dimensions | 489 x 400 x 44.3 (WxDxH) mm 19.3 x 15.8 x 1.7 (WxDxH) in |
| Weight | 8 Kg (17.6 lb) |
| IP Class | IP 20 |
| Environmental | |
| Operating temperature range | 0°C to +50°C (derating above 35°C) |
| Storage relative humidity range | 10% to 85% humidity (non condensing) |
| Output Stage | |
| Commercial total rated power @ 2.7 Ω full load | 10000 W |
| Maximum output power (all channels driven symetrically) | |
| per channel @ 16 Ω (symmetrical) | 750 W |
| per channel @ 8 Ω (symmetrical) | 1000 W |
| per channel @ 4 Ω (symmetrical) | 1200 W |
| per channel @ 2.7 Ω (symmetrical) | 1250 W |
| per channel @ 2 Ω (symmetrical) | 1250 W |
| per bridged pair @ 8 Ω (symmetrical) | 2400 W |
| per bridged pair @ 5.4 Ω (symmetrical) | 2500 W |
| per channel @ 16 Ω (asymmetrical) | 750 W |
| per channel @ 8 Ω (asymmetrical) | 1500 W |
| per channel @ 4 Ω (asymmetrical) | 2900 W |
| per channel @ 2.7 Ω (asymmetrical) | 2400 W |
| per channel @ 2 Ω (asymmetrical) | 2400 W |
| Maximum unclipped output voltage | 160 V peak |
| Maximum output current | 48 A peak |
| Power / Thermal @ 120 V | |
| Idle | Input Power: 101.8 W Current Draw: 1.06 A rms Thermal Loss: 347 BTU/h |
| 1/8 Max Power @ 4Ω | Input Power: 1707 W Current Draw: 14.57 A rms Thermal Loss :1849 BTU/h |
| Power supply | Universal regulated switch mode with PFC and SRM |
| Nominal Voltage | 100-240 VAC @ 50/60 Hz (400 VAC surge) |
| Operating Voltage | 80-265 VAC @ 50/60 Hz |
| Supply tolerance | +10% -10% |
| Power system | TT/TN |
| Overvoltage category | II |
| Class of equipment | I |
| AC Mains connector | IEC C20 inlet (20 A max), region-specific power cord provided |
| Eco Mode consumption | 35 W |
| Standby consumption | 20 W Typical, CPU fully functional |
| PoE Input | Class 4 or higher |
| Networking | |
| Network | 3 x Gigabit Ethernet ports RJ45 connectors |
| Network modes | Switched Mode, Split-Redundant Mode |
| Remote interface | ArmoníaPlus™, Powersoft Cloud |
