Powersoft WM Touch - Wall Mount Touchscreen Controller (White)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

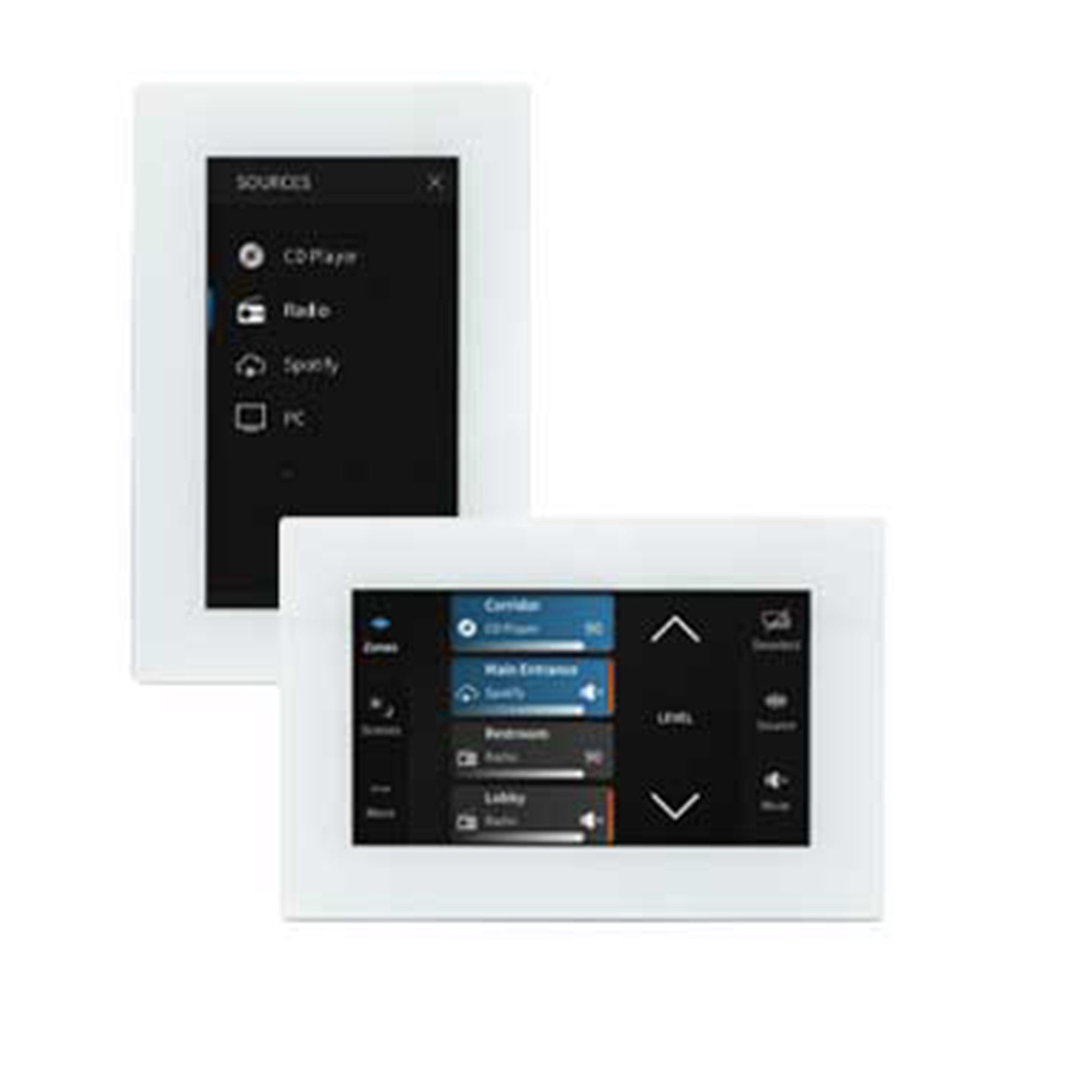

Control of sources, zones, and scenes is made easy and straightforward using a dedicated User interface. The WM Touch is a PoE fed wall-mounted touch screen that allows giving control of the entirety of the dynamic music distribution system from a single 4.3’’screen panel.
It is an elegant, effective, and intuitive control tool which uses standard ethernet to connect to the amplifiers and can be part of any normal network via RJ45 cable. Thanks to the PoE powering and the simplicity of installation in any single gang back box the WM Touch installation process is very straightforward and simple. It can be mounted both in vertical and horizontal orientation and is available in a black and white version.
The WM Touch offers a variety of User Interface layouts. The pre-load layouts are specifically designed for dynamic music distribution applications, ensuring intuitive interaction and granting a low learning curve, which provides a straightforward user experience and makes it easy to set up. Within the Wall Mount Touch it is possible to create user-friendly and very intuitive user screens.
The WM Touch is designed to match Mezzo’s routing matrix capabilities and to flawlessly integrate in a Dynamic Music Distribution system, and can be conveniently configured through ArmoníaPlus.
| Dimensions | L: 127.4 mm x H: 86.4mm x D:14.4 mm |
| LCD Screen | 4.3 inch |
| Aspect Ratio | 16:9 (W:H) |
| Mounting Option | Wall mount |
| Orientation | Landscape or portrait |
| Brightness | 300 nits |
| Power Supply (not included) | PoE Injector or PoE Switch |
| Weight | 160 g |
| Operating Temperature | 0¡C to 45 ¡C |
| Connectivity | RJ45 (100 Mbps) |
| Max Cable Length | 100 m (Cat5 or above) |
| USB | Service only |
| Accessories Included | 1x Metal plate for wall-mounting 1x Wall-mount removal pin |
Control of sources, zones, and scenes is made easy and straightforward using a dedicated User interface. The WM Touch is a PoE fed wall-mounted touch screen that allows giving control of the entirety of the dynamic music distribution system from a single 4.3’’screen panel.
It is an elegant, effective, and intuitive control tool which uses standard ethernet to connect to the amplifiers and can be part of any normal network via RJ45 cable. Thanks to the PoE powering and the simplicity of installation in any single gang back box the WM Touch installation process is very straightforward and simple. It can be mounted both in vertical and horizontal orientation and is available in a black and white version.
The WM Touch offers a variety of User Interface layouts. The pre-load layouts are specifically designed for dynamic music distribution applications, ensuring intuitive interaction and granting a low learning curve, which provides a straightforward user experience and makes it easy to set up. Within the Wall Mount Touch it is possible to create user-friendly and very intuitive user screens.
The WM Touch is designed to match Mezzo’s routing matrix capabilities and to flawlessly integrate in a Dynamic Music Distribution system, and can be conveniently configured through ArmoníaPlus.
| Dimensions | L: 127.4 mm x H: 86.4mm x D:14.4 mm |
| LCD Screen | 4.3 inch |
| Aspect Ratio | 16:9 (W:H) |
| Mounting Option | Wall mount |
| Orientation | Landscape or portrait |
| Brightness | 300 nits |
| Power Supply (not included) | PoE Injector or PoE Switch |
| Weight | 160 g |
| Operating Temperature | 0¡C to 45 ¡C |
| Connectivity | RJ45 (100 Mbps) |
| Max Cable Length | 100 m (Cat5 or above) |
| USB | Service only |
| Accessories Included | 1x Metal plate for wall-mounting 1x Wall-mount removal pin |
