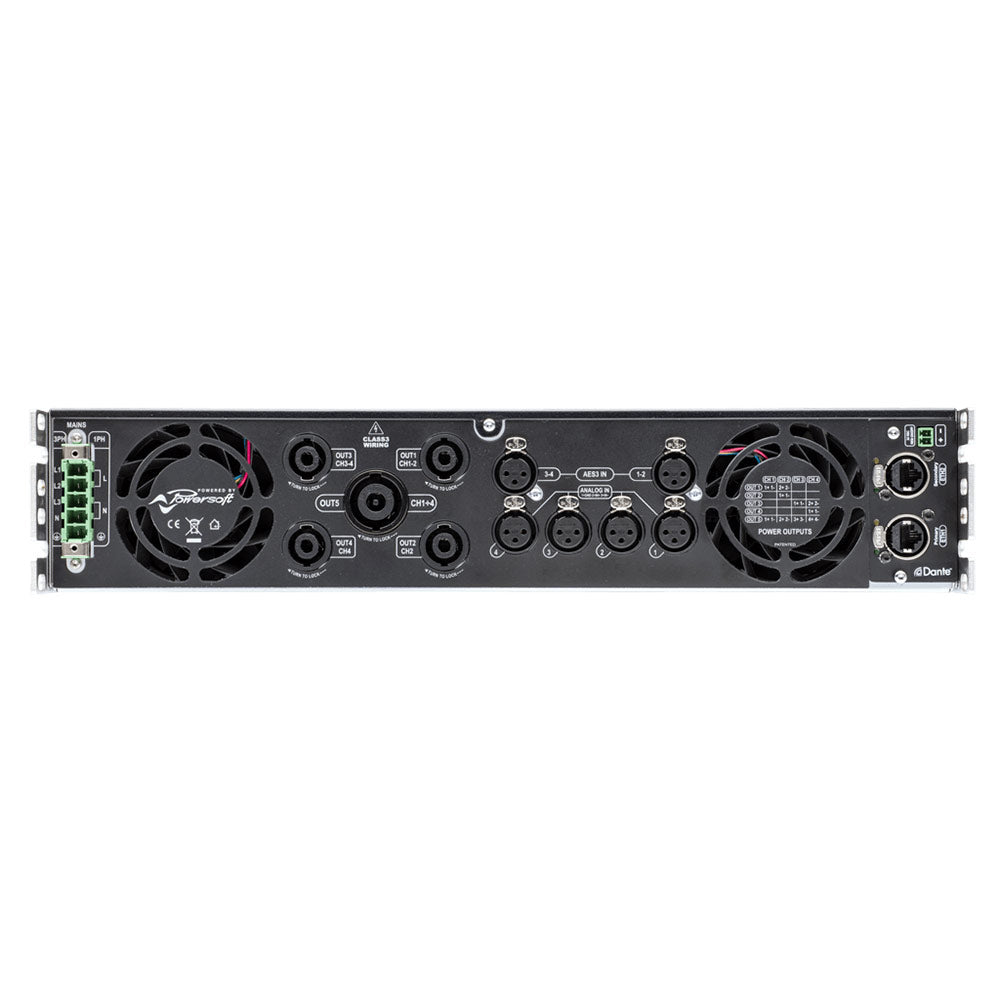

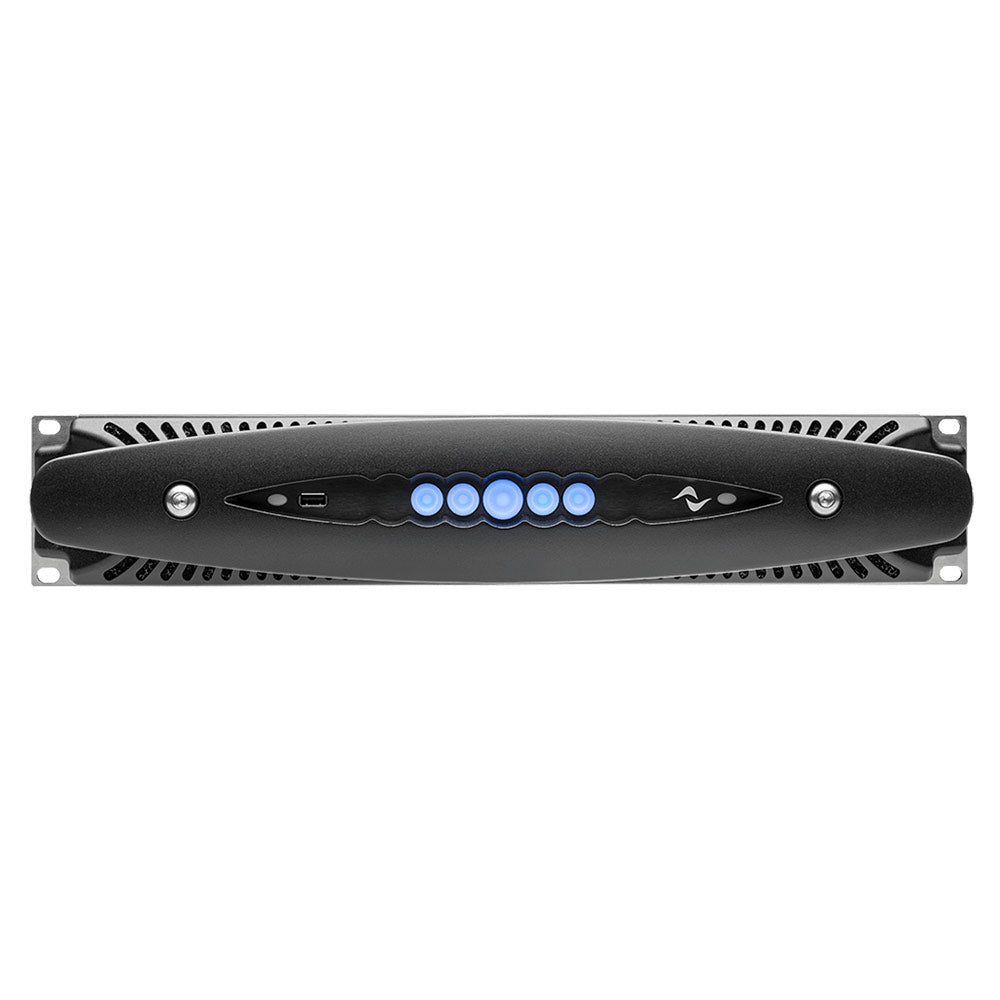

Powersoft X4L - 4-Channel Benchmark Power Amplifier with DSP and Dante


  • Dale #:

    POWS-X4LDSPPLUSDANTE
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The X4L has been designed to deliver the output voltage required by the latest generation of high-performance loudspeakers. Powersoft's legendary power supply is suitable to Single Phase, Bi-Phase or Three Phase operation from 85 VAC up to 460 VAC without the need of selection. True Three Phase ... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The X4L has been designed to deliver the output voltage required by the latest generation of high-performance loudspeakers.

Powersoft's legendary power supply is suitable to Single Phase, Bi-Phase or Three Phase operation from 85 VAC up to 460 VAC without the need of selection. True Three Phase load balancing is directly achievable without any complex load assignment in the power distribution system. Powersoft X4L provides four fully processable channels and selectable inputs from analog sources as well as digital AES3 and two redundant Dante™* streams.

Channel mixing and routing can be easily performed thanks to the integrated low latency DSP, providing the highest degree of freedom in sound shaping and speaker management. Full support of 100 Mbps and Gigabit Ethernet makes it easy to integrate Powersoft X4L into any existing infrastructure. Completely integrated into ArmoníaPlus™, the Powersoft X4L interface is also available for smartphones and tablets, providing a new experience in power management.

* DANTE version only

MyPowersoft services are available for this product.

Features:

Innovative power supply design

  • Suitable for Single-Phase, Bi-Phase or Three-Phase operation from 85 VAC up to 460 VAC, the X4L power supply provides maximum flexibility and versatility in any power distribution design.
  • Power Load Balancing with Power Factor Correction enhances efficiency in power distribution.
  • Smart Rails Management increases efficiency by means of the dynamic rails modulation.
  • The legendary Powersoft Green Audio Power® technology improves efficiency and minimizes the carbon footprint and the operational costs.

New standard of quality and usability

  • Flexible routing/mixing provided by the internal 4x4 input/output matrix, allows the user to mix and route analog and digital I/O.
  • Easy plug-and-play Dante™* networking allows easy routing of the signal from any node within the network to Powersoft X4L.
  • 4 input channels with physical analog and digital AES3 connectors and redundant Dante™* connection provide maximum flexibility.
  • Improved reliability thanks to the customizable input backup policy that allows to automatically switch input source in case of signal failure.
  • Complete user interface integrated into ArmoníaPlus™.
  • WiFi remote monitoring through mobile devices.

Highly integrated

  • Top-grade DSP with high dynamic range and extensive feature set.
  • Multi-stage signal processing: innovative solutions for modeling the speaker's behavior and power handling.
  • Input and output IIR, FIR, IIR+FIR equalizers and raised-cosine filters.
  • Complete sets of limiters: peak, RMS voltage, RMS current, and TruePower™.
  • Compensation of the speaker cable losses with Active DampingControl™.

Even more reliable

  • Full protection circuitry: over/under AC voltage; troublesome signals (clipping, VHF, long-term RMS); DC; thermal; short circuit; mute at power on/off.

More +

Product Specs

Channel Handling
Number of output channels 4 mono
Number of input channels Analog: 4 (4x XLR)
AES3: 4 (2x XLR)
Dante: 16 (2 x RJ45)
Audio
Gain 17 dB - 47 dB (0.1 dB increments)
Default Gain 32 dB
Output Noise
A-Weighted @ 8 Ω - Analog to Analog / Digital to Analog
< -67 dBV / < -67.5 dBV
Dynamic Range
A-Weighted @ 8 Ω - Analog to Analog / Digital to Analog
113.5 dB / 114 dB
Damping Factor @ 8 Ω, 20Hz - 500Hz > 5000
Slew Rate (input filter bypassed) > 50 V/µs
Frequency Response ( -3 dB , 1 W @ 8 Ω) 5 Hz - 22.5 kHz
Crosstalk (1 kHz) -70 dB
THD+N (from 0.1 W to Full Power) < 0.5% (typical < 0.01%)
DIM (from 0.1 W to Full Power) < 0.5% (typical < 0.01%)
Input Impedance 20 kΩ Balanced
Input Acceptance +27 dBu
DSP
AD converters Dual 24 bit 48 kHz Tandem® architecture with 129 dBA of dynamic range
DA converters Dual 24 bit 48 kHz Tandem® architecture with 121 dBA of dynamic range
Sample rate converter 24 Bit @ 44.1 kHz to 192 kHz 140 dB Dynamic Range - 0.0001 % THD+N
Internal precision 40 bit floating point
Delay up to 2 s on input sectionup to 100 ms per output for time alignment
Equalizer Raised-cosine, custom FIR, parametric IIR:
peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
Crossover Linear phase (FIR), hybrid (FIR-IIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
Limiters TruePower™, RMS voltage, RMS current, Peak limiter
Damping control Active DampingControl™
Output Stage
Maximum output power per channel @ 8 Ω 4800 W Symmetrical
5000 W Asymmetrical
Maximum output power per channel @ 4 Ω 6800 W Symmetrical
8400 W Asymmetrical
Maximum output power per channel @ 2.7 Ω 7700 W Symmetrical
9600 W Asymmetrical
Maximum output power per channel @ 2 Ω 8200 W Symmetrical
10000 W Symmetrical
Peak total output, all channels driven 32800 W
Maximum unclipped output voltage 300 V peak
Maximum output current 140 A peak
AC Mains Power
Single Phase
Nominal Voltage 100 - 240 V @ 50/60Hz
Operating Range 90 - 264 V from DC to 200 Hz
Power Factor
1/8 Maximum Output Power
>0.9
Current Draw
1/8 Maximum Output Power
18 A rms @100V
Suggested circuit breaker C32
Three Phase
Nominal Voltage 173Y / 100 - 416Y / 240 V
3~, 3W+N+PE / 3W+PE
Current Drawn from Each Single Phase
1/8 Maximum Output Power
9 A rms @ 173Y
5 A rms @ 416Y
Suggested circuit breaker (per phase) C16
Idle Consumption (all AC MAINS cases) < 230 W
Max consumption (all AC MAINS cases) < 5000 W
Thermal
Operating temperature 0° - 35°C / 32° - 95°F
Cooling Fan, continuously variable speed, temperature controlled
Fan Noise - 1/8 Maximum Output Power @ 8 Ω (1m) 40 dBA SPL
Thermal dissipation 1/8 Maximum Output Power @ 8 Ω: 2970 BTU/h
1/4 Maximum Output Power @ 8 Ω: 3650 BTU/h
Construction
Dimensions 483 mm x 88 mm x 495 mm (19.0 in x 3.5 in x 19.5 in)
Weight 24 kg (52.9 lb)
