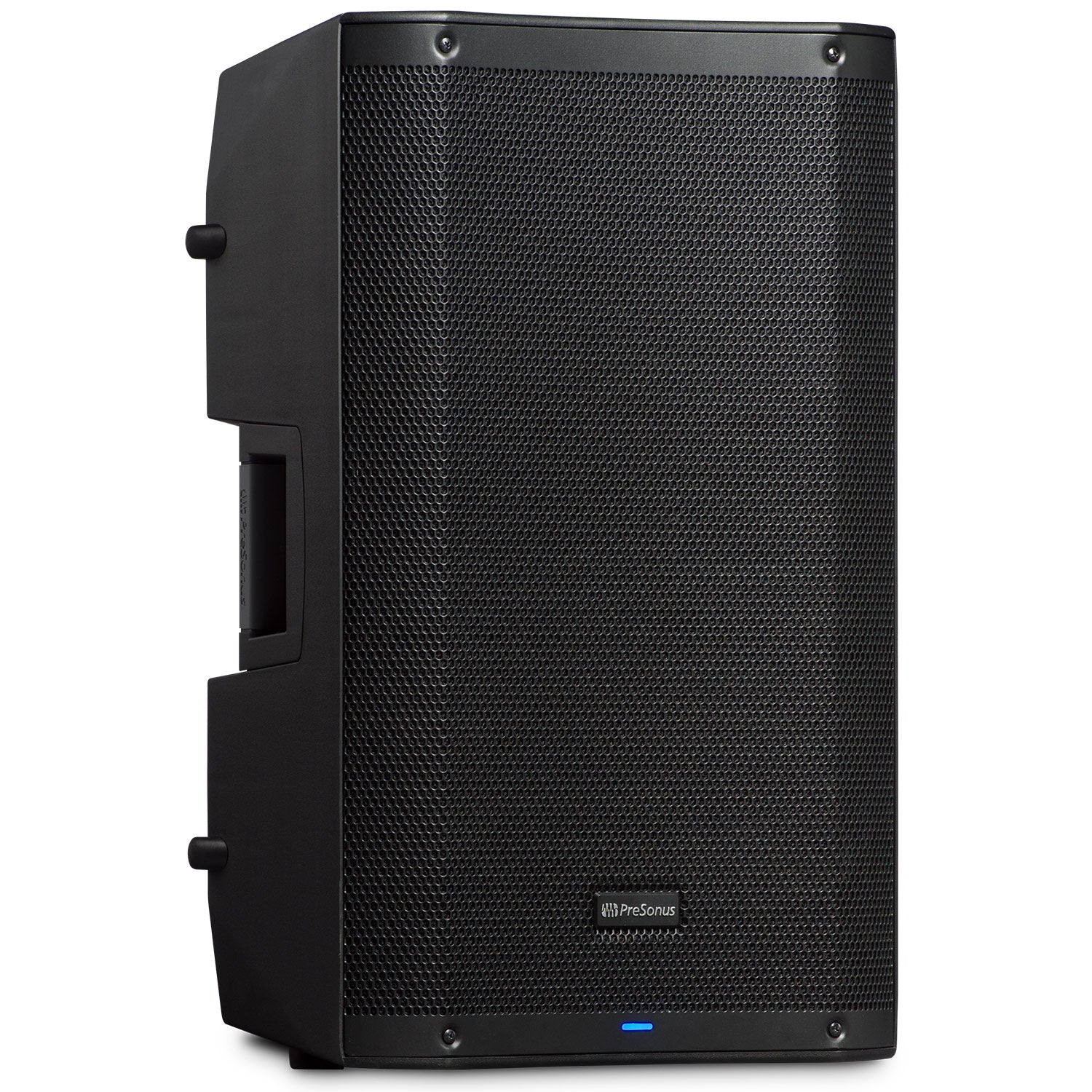

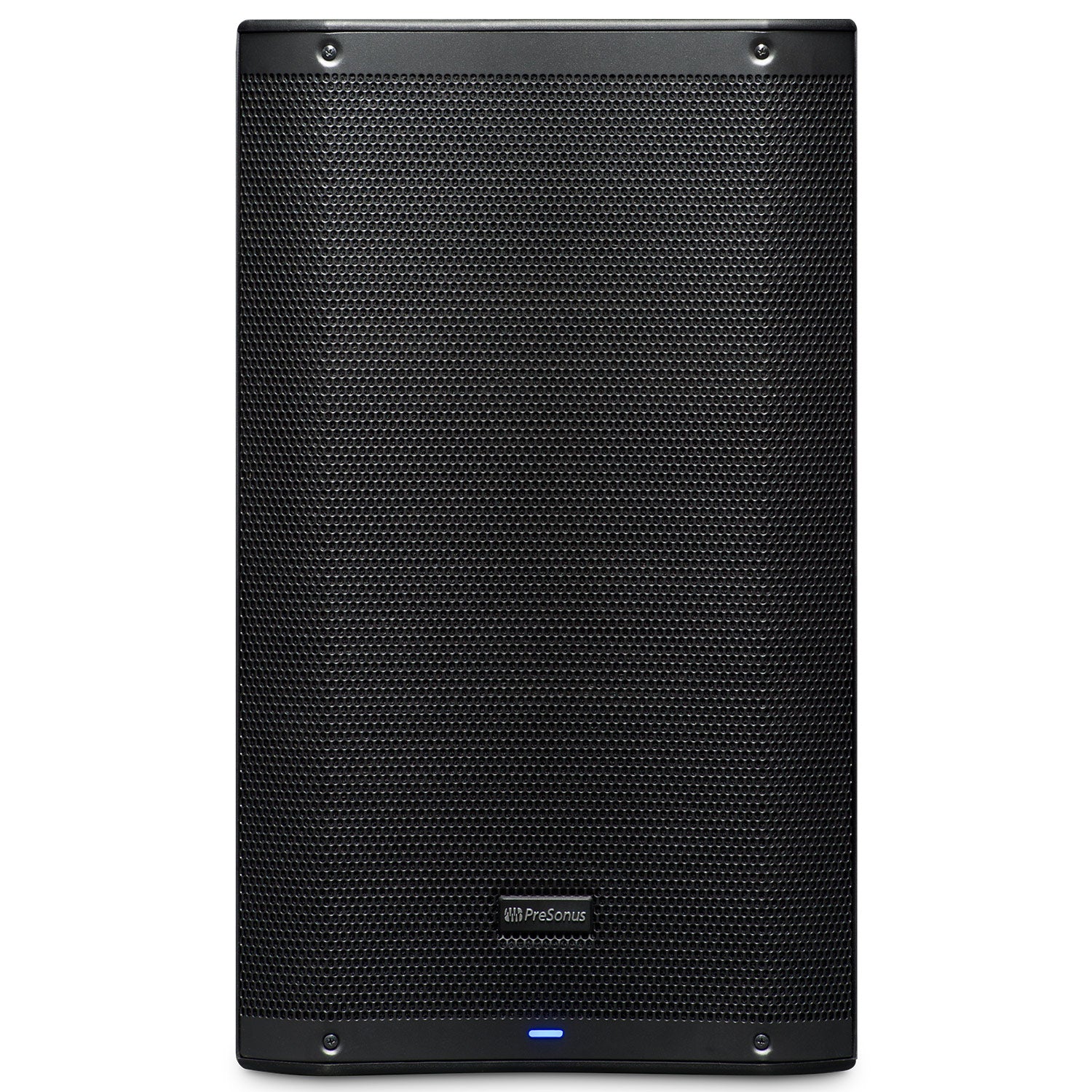

Compact and lightweight, AIR12 active loudspeakers provide a rich low-end and natural high-frequency extension in an enclosure that easily fits in the backseat of your car. Featuring a 12-inch woofer and 1.35-inch tweeter, the AIR12 is backed by a unique 1,200W amplifier configuration that utilizes a Class D amplifier efficiently driving the low-end, while a Class AB amp powers the high-frequency driver, delivering a more natural-sounding high-frequency response. Customized presets are provided for front-of-house use, floor wedge placement, music playback, enhanced low-end warmth, and improved speech intelligibility. EQ controls compensate for room anomalies. Location presets optimize performance for stand and bracket mounting as well as flown installations. The AIR12 offers the power and tools you need for both mobile and installed sound.
- 12-inch custom low-frequency driver with 2.5-inch voice coil
- 1.35-inch high-frequency compression driver
- 90 deg. horizontal dispersion and 60 deg. vertical dispersion
- Hybrid œbest of both worlds 1,200W power amp configuration:
o Low-frequency driver: 500W (continuous), Class D amplifier
o High-frequency driver: 200W (continuous), Class A/B amplifier
- Onboard mixer with two combo XLR and 1/4" inputs, plus a stereo 1/8 input
- Multi-angle enclosure for mains or monitor wedge application
- Easy-to-use DSP performance presets:
o DJ music playback
o FOH normal front-of-house
o Enhance - enhanced low end for a warmer sound
o Monitor - optimized for floor wedge placement
o Speech applications where speech intelligibility is critical
- EQ: HF and LF (±10 dB)
- Optimized location presets:
o Stand - tripod or pole-mount application
o Suspend - flown applications
o Bracket - wall-mount applications
- Defeatable front-panel LED
- Rugged plastic enclosure
- 35 mm pole sockets with 7.5 deg. downward tilt
- Integrated M10 rigging points for suspended installation
The best of two worlds.
Each type of power amplifier has advantages and disadvantages. By employing different amplifier types for each driver, AIR12 loudspeakers use the respective strengths of Class D and Class A/B amplifiers to provide optimal response throughout the speaker's frequency range. A 500W (continuous), Class D amplifier powers the 12-inch low-frequency driver, providing efficient, clean power for gut-shaking low end when you need it. A 200W (continuous), Class AB amplifier powers the 1.35-inch high-frequency driver, delivering a natural sounding, "AIR-y" high end. The combination can deliver up to? 131 dB SPL of sweet, clear sound between 48 Hz and 20 kHz.
Fast and easy customization.
The AIR12 loudspeaker is equipped with an easy-to-use signal processor that makes it simple to customize your loudspeakers with the push of a button. Presets customize the AIR12's response for use as front-of-house mains; as monitor wedges; for music playback (e.g., for DJs); for enhanced low end and a warmer sound; and for improved speech intelligibility. Treble and bass controls let you boost or cut by 10 dB to compensate for room anomalies. Location presets let you optimize performance for stand and bracket mounting as well as flown installations.
Versatile mounting for a variety of applications.
The AIR12's molded plastic cabinet can be mounted in several ways, providing tremendous versatility. The multi-angle enclosure sports nonskid rubber feet on the bottom for upright front-of-house use and nonskid rubber feet on one side for stage monitor applications. Rig the speaker using M10 fly points, yoke-mount it to walls or beams, or ground-stack it for portable applications. Mount it on a tripod or atop an AIR-series subwoofer using an optional sub pole. The integrated dual-position pole mount lets you aim the speaker level or at a 7.5 deg. downward tilt. And the AIR12 is easy to transport, thanks to its top-mounted handle.

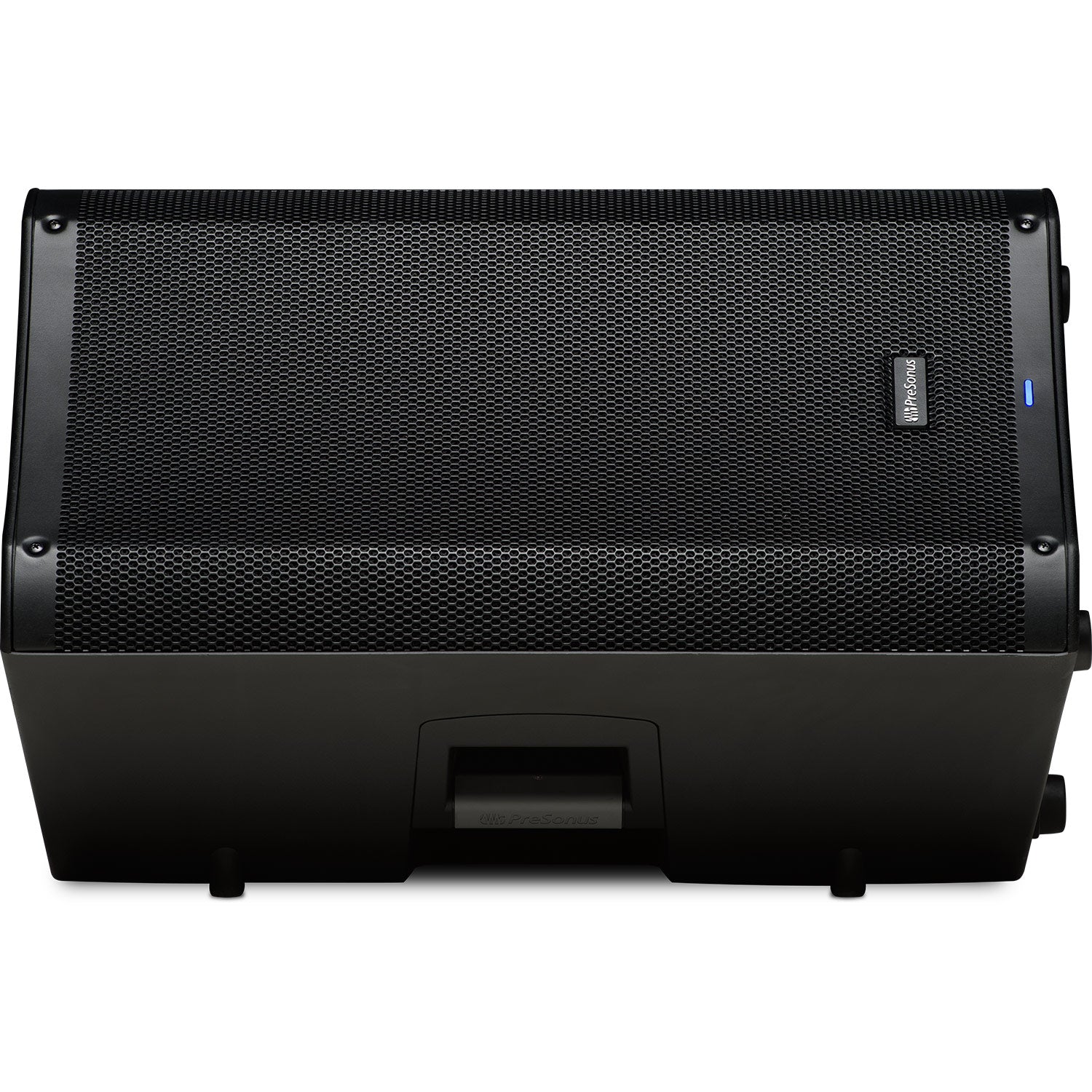

You'll be floored.
If you place a loudspeaker against a hard surface such as a wall or floor, the low frequencies emitted from the rear of the enclosure propagate back into the room. This effect, called œhalf-space loading, can increase the output of bass frequencies by as much as 6 dB, and it is an unavoidable issue with floor monitors. Most PA speakers in this class simply roll off excess low frequencies with a highpass filter a half-baked compensation for half-space loading. In contrast, AIR-series full-range loudspeakers offer a Monitor preset that uses DSP to retune the speaker to both compensate for bass buildup and maintain a tight mid-bass response, while suppressing problematic frequencies to reduce feedback.

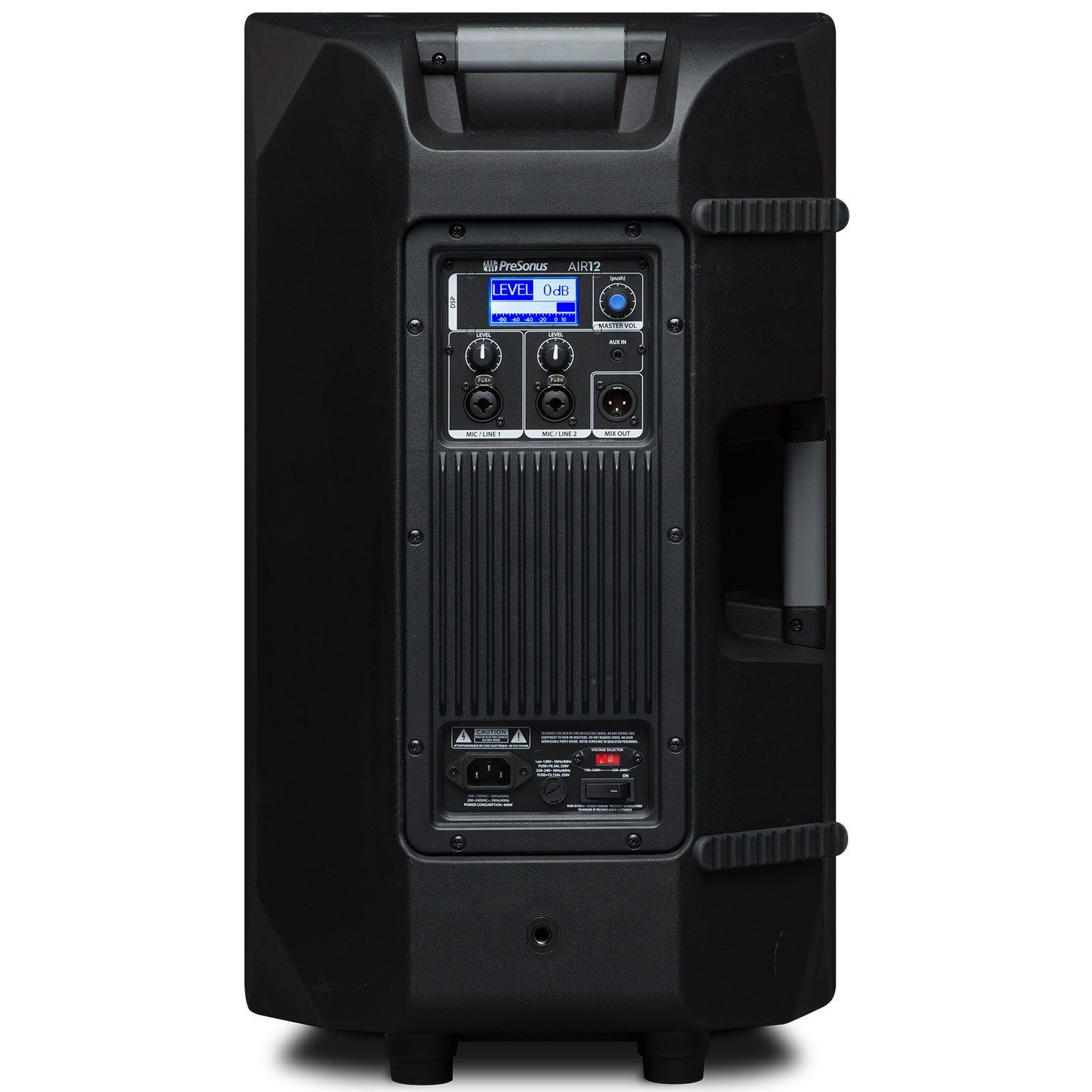

AIR-series full-range loudspeakers offer a choice of inputs so you can use them with a variety of sources. You get two combo XLR mic/TRS line inputs, each with a Class A microphone preamplifier and independent gain control. A stereo 1/8 connection admits signals from smartphones, tablets, and other consumer audio devices. These signals can be combined with the AIR12's internal mixer, and a balanced XLR Mix output lets you send pass the signals to other AIR-series loudspeakers.
A sweet-sounding solution.
With their œbest of both worlds power-amp configuration, carefully programmed DSP presets, versatile mounting options, flexible inputs with onboard mixing, and other professional features, PreSonus AIR-series loudspeakers are an excellent choice for both mobile and installed sound. You'll love their easy transportability and their affordability. But the best thing about AIR-series loudspeakers is their clear, natural, AIR-y sound.
